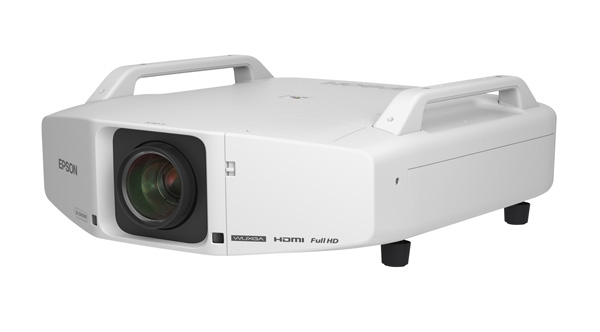

Epson EB-Z8450WU / EB-Z8455WU
Installation Multimedia Projectors
Cinema quality WUXGA images with the power of 7,000 lumens
- click for Larger Image
- If you are interested in purchasing an Epson Projector please call 0800 377 664 to discuss your requirements or to find projector resellers in your area.
- Printer Friendly Specs
- Distance CalculatorDownload
| PRODUCT NAME | EB-Z8450WU - White Case | ||
| PRODUCT CODE | V11H462053 | ||
| PRODUCT NAME | EB-Z8455WU - Black Case | ||
| PRODUCT CODE | V11H462153 | ||
| WHAT'S IN THE BOX | |||
|---|---|---|---|
| Epson EB-Z8450WU - White Case, or EB-Z8455WU - Black Case,1.8m Computer Cable, Remote Control, Foot Cover, 3m Power Cord, Manual | |||
| TECHNOLOGY | |||
| Projection System | Epson 3LCD, 3-chip technology | ||
| LCD Panel | 0.94-inch wide panel with MLA (D7, C2 Fine) | ||
| OPTICAL | |||
| Zoom | 1 - 1.61 (Powered Optical Zoom) | ||
| Screen Size | 60" to 500" | ||
| Projection Distance | 100" screen 3.74 m - 6.07 m | ||
| Throw Ratio | 1.74 (Zoom:Wide), 2.82 (Zoom:Tele) | ||
| Projection Lens F Number | 1.65 - 2.51 | ||
| Projection Lens Focal Length | 36.00mm-57.35mm | ||
| Focus Method | Powered Focus | ||
| Offset | Lens dependant | ||
| IMAGE | |||
| Colour Light Output | 7,000 Lumens | ||
| White Light Output | 7,000 Lumens | ||
| Resolution | WUXGA | ||
| Native Aspect Ratio | 16:10 | ||
| Contrast Ratio | 5,000:1 | ||
| Lamp Hours | Normal/Eco: 2,500/3,500 Hours | ||
| Lamp Type | 2 x 340 W UHE | ||
| Keystone Correction | Vertical: -30 to +30 degrees Horizontal: -20 to +20 degrees |
||
| Lens Shift | Vertical: -70% to +70% (Powered) Horizontal: -20% to +20% (Powered) |
||
| Tilt Angle | -3.5 to 3.5 degrees | ||
| CONNECTIVITY | |||
| Input: Video | 1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC, 1 x Component (via D-sub 15-pin) | ||
| Input: Computer | 1x D-sub 15-Pin (RGB) | ||
| Input: USB Memory Device | - | ||
| Input: Three-In-One USB Display | - | ||
| Input: Digital | 2 x HDMI | ||
| Input: SDI | 1 x BNC | ||
| Input: Audio | 2 x HDMI | ||
| Input: Control | 1 x RS-232C, 1 x RJ45, 1 x Remote (Stereo mini Jack) | ||
| Wireless Connectivity | Optional | ||
| Output: Video | 1 x Monitor Out (via D-sub 15-pin) | ||
| Output: Audio | - | ||
| Speaker Output | - | ||
| ADVANCED FEATURES | |||
| EasyMP Network & Control | Yes | ||
| EasyMP Network Projection | Yes | ||
| Split Screen | Yes | ||
| Edge Blending | Yes | ||
| Arc Correction | Yes | ||
| Super Resolution | Yes | ||
| Frame Interpolation | Yes | ||
| 360 Degrees Projection | Yes | ||
| Instant Off | Yes | ||
| Direct Power On/Off | Yes | ||
| Security | Kensington®-style lock provision |
||
| Colour Modes | Photo, Presentation, Theatre, Dynamic, sRGB, Multi-Projection, DICOM SIM | ||
| GENERAL | |||
| Dimensions D x W x H | 534 x 734 x 167 mm (not including foot, projection lens and handle) | ||
| Weight | Approx. 22 kg (Including lens) | ||
| Lamp Warranty | 12 months or 750 hours* | ||
| Projector Warranty | 4 Years or 10,000 Hours* | ||
| Power Consumption: Lamp on | Normal/Eco: 786/786W | ||
| Power Consumption: Standby | 0.49W (communication off) | ||
| Noise Level | Normal: 40dB / Eco: 35dB | ||
| * Whichever comes first. For more information visit Epson Projector Warranty | |||
| PRODUCT OPTIONS | Item Code | Description | |
| V13H010L72 |
Replacement lamp to suit EB-Z Series | ||
| V13H010L73 |
Replacement lamp to suit EB-Z Series (Twin pack) | ||
| V13H134A23 |
Replacement Electrostatic Filter (10,000 hours) | ||
| V12H418P13 |
Wireless LAN adaptor to suit EB-Z Series | ||
| V12H003B25 |
Ceiling Mount for EB-Z Series (Flush) | ||
| V12H003B26 |
Ceiling Mount for EB-Z Series (Telescopic) | ||
| V12H004S04 |
Standard Zoom Lens for EB-Z series | ||
| V12H004R04 | Rear Projection Wide Lens for EB-Z Series | ||
| V12H004W04 | Wide Zoom Lens for EB-Z Series | ||
| V12H004M06 | Middle Throw Lens for EB-Z Series | ||
| V12H004M07 | Middle Throw Zoom Lens for EB-Z Series | ||
| V12H004L07 | Long Throw Zoom Lens for EB-Z-Series | ||
