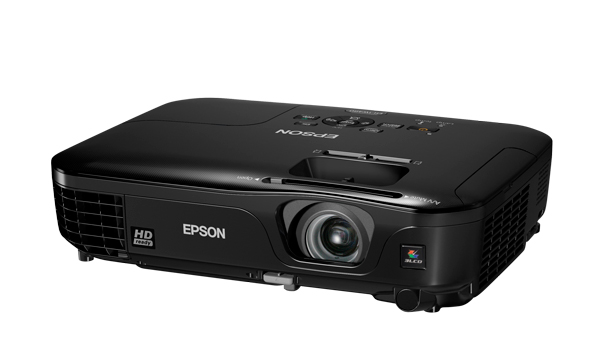

Epson EH-TW480
Home Theatre Projectors
Big Screen Entertainment, all from the comfort of your home
| PRODUCT NAME | Epson EH-TW480 | ||
| PRODUCT CODE | V11H475153 | ||
| WHAT'S IN THE BOX | |||
|---|---|---|---|
| Epson EH-TW480 Projector inc. Power Cable, Remote Control + Batteries, User's Manual, Soft Carry Case | |||
| TECHNOLOGY | |||
| Projection System | RGB liquid crystal shutter projection system | ||
| LCD Panel | 0.59-inch with MLA (D8) | ||
| OPTICAL | |||
| Zoom | 1 - 1.2 | ||
| Screen Size | 333" to 318" [0.9 to 9.0 m] (Zoom:Wide) 33" to 317" [1.08 to 10.8 m] (Zoom:Tele) |
||
| Projection Distance | 60" screen 1.68 - 2.02 m | ||
| Throw Ratio | 1.30 (Zoom:Wide), 1.56 (Zoom:Tele) | ||
| Projection Lens F Number | 1.58 - 1.72 | ||
| Projection Lens Focal Length | 16.9 mm - 20.28 mm | ||
| Focus Method | Manual | ||
| IMAGE | |||
| Colour Light Output | 2,800 Lumens | ||
| White Light Output | 2,800 Lumens | ||
| Resolution | WXGA | ||
| Native Aspect Ratio | 16:10 | ||
| Contrast Ratio | 3,000:1 | ||
| Lamp Type | 200W UHE (E-TORL) | ||
| Colour Video Processing |
Full-color (16.77 million colors) | ||
| CONNECTIVITY | |||
| Input: Video | 1 x HDMI, 1 x RCA (Yellow), 1 x S Video | ||
| Input: Computer | 1 x HDMI, 1 x D-sub 15-pin (RGB), 1 x USB B | ||
| Input: Digital | 1 x HDMI | ||
| Input: Control | 1 x USB B | ||
| ADVANCED FEATURES | |||
| Speaker | 2W | ||
| Direct Power On/Off | Yes | ||
| Security | Kensington® Lock | ||
| Colour Modes | Dynamic, Living Room, Theatre, Game | ||
| GENERAL | |||
| Dimensions D x W x H | 288 x 295 x 77 mm | ||
| Weight | 2.3 kg | ||
| Lamp Warranty | 1 yr or 750 hours - whichever comes first* | ||
| Projector Warranty | 2 Years | ||
| Power Consumption: Lamp on | 270W | ||
| Power Consumption: Standby | 0.47W | ||
| Noise Level | 29dB | ||
| * Whichever comes first. For more information visit Epson Projector Warranty | |||
| PRODUCT OPTIONS | Description | Item Code | |
| Floor Standing Tripod Screen |
V12H002S2Y | ||
| 50” Tripod Screen |
V12H002S32 | ||
| Multi Aspect Screen |
V12H002S26 | ||
| Lamp – ELPLP67 |
V13H010L67 | ||
| Air Filter – ELPAF32 |
V13H134A32 | ||
| Ceiling Mount |
V12H003B23 | ||
| Extension Pole 668-918mm |
V12H003P13 | ||
| Extension Pole 918-1,168mm |
V12H003P14 | ||
