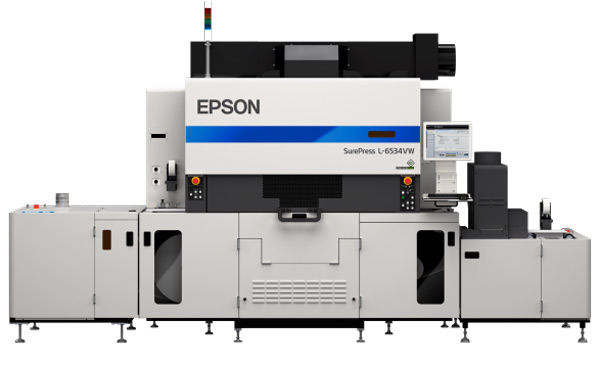

Epson SurePress L-6534VW

SurePress L-6534VW

Industrial Products

High speed, outstanding finish, low TCO



Epson's new generation linehead, inkjet label press with LED UV curing ink, the L-6534VW, enables high-speed printing that's ideal for producing labels and packaging with outstanding scratch and weather resistance. The new generation PrecisionCore® linehead, center drum system, and digital varnish deliver high-quality images. The space-saving, compact design integrates all of the functions required for production, such as Corona treatment, White ink, digital varnish, and an additional UV curing unit.

KEY FEATURES & BENEFITS
  • High productivity – high speed print of up to 50m/min
  • High image quality – Epson PrecisionCore printhead offers outstanding print quality
  • High stability – Nozzle Verification Technology and automatic cleaning system reduces maintenance and down time
  • Value added printing – high density white ink and digital varnish ink enhances colour reproduction
  • Wide range of applications – Epson UV ink and Corona treater supports wide range of substrates for different applications


Image Quality

Pinning technology offers ultra high-quality images. White ink and digital varnish printing dramatically increase the range of applications. The Epson-developed pinning technology controls the range of ink scattering and realizes ultra sharp dots and incredibly thin lines. The Epson digital-quality color gamut, tonal gradation, flat print and lack of graininess help those in the prime label industry overcome their hesitation to using UV ink. Now UV printing can be used in more discriminating areas such as health and beauty, nutraceuticals, and food and beverage, as well as standard consumer packaged goods such as car polish, lawn and garden care, and household cleaner labels. In White ink printing, Surface-White Print and Reverse-White Print are available to extend the range of expression on clear and metalized films. With the brand-new digital varnish ink, a gloss or matte finish can be selected for the overall label, and appealing partial accents can even be added using glossy or matte spot varnish.

Printhead: High-quality image printing with the PrecisionCore linehead

The new generation PrecisionCore linehead inkjet technology enables high-speed, single-pass printing, complemented by Epson's original ink and ink systems. Designed for optimal performance, the SurePress L-6534VW offers highly engineered, quality printing and superb reliability. The Epson digital monitoring system maintains high productivity using Nozzle State Analysis to manage dropped inkjet nozzles, allowing the job to complete. As Epson's most advanced printhead technology, PrecisionCore delivers our renowned, industry-leading output quality and durability, even at high speeds.

Ink: Epson's original LED UV curing ink

Quick-drying UV ink boosts productivity and offers excellent weather, scratch, chemical, and water resistance, so it's suitable for printing labels used in severe environments such as the outdoors. A small, long-life LED light source is used, saving space, offering an energy-saving solution, and enabling printing on heat-sensitive substrates such as PE.

Substrate Feed: Center drum system

The center drum system feeds the substrate with incredible precision to minimize color unevenness and reduce the heat expansion or shrinkage of the substrate, enabling various types of off-the-shelf standard flexographic substrates to be used.

Eco Features: SurePress L-6534VW reduces the impact on the environment

The SurePress L-6534VW digital printer enables much easier adjustments than analog printers, minimizing ink consumption and paper waste. Furthermore, the need for the printing plates and cleaning chemicals utilized by analog presses is eliminated. When using only the LED curing system, energy is reduced compared to that used by conventional UV lamps. Epson’s ink facilities meet GMP regulations (EC) 2023/2006, as well as USFDA cGMP. Ink is compliant with FDA, EuPIA, FSVO, EFSA, and EC organizations.
