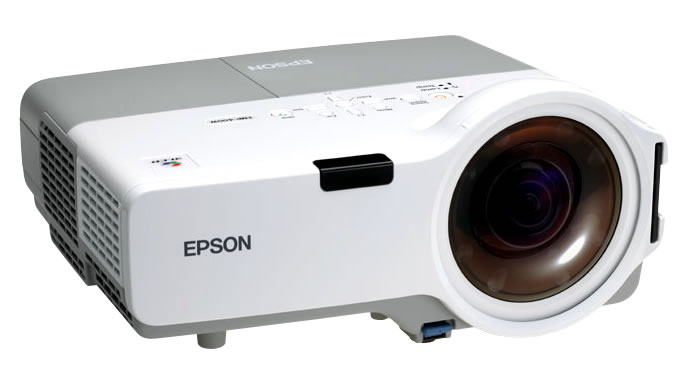

Back catalogue – Epson EB-410W
Epson is pleased to introduce the Epson EB-410W Short Throw Projector. The ideal solution for use with interactive whiteboards in the modern classroom environment.
KEY FEATURES:
- Short Throw Lens – Project a full 60” screen from as close as 62cm
- WXGA Image – project a full 1280 x 800 pixel image
- Network Functionality – Operate and monitor from a remote location
- Easy Maintenance – Lamp and filter maintenance is simple even when mounted upside down
- Built in High Power Speaker – Eliminates the need for externally connected audio
- Purpose Built Epson Wall Mount – Also available as a bundle including a purpose built Short Throw Wall Mount
Short Throw Lens
The Epson EB-410W features an ultra large calibre, high precision lens which allows it to project a 60 inch screen from as close as 62cm from the screen or whiteboard. This virtually eliminates distracting shadows on the whiteboard and annoying glare in the presenter’s eyes.
WXGA Image
The EB-410W projects in Wide XGA resolution (1280 x 800 pixels), which is fast becoming the most common format for new PCs. With the EB-410W, what you see on the notebook display is what you see projected on the whiteboard so presentations are more effective.
Network Functionality
With the EB-410W, monitoring and operation can be carried out from a remote PC via network connection. System Administrators can turn the projector off, switch between sources, as well as control and monitor lamp and temperature conditions. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.
Easy Maintenance
Maintaining the EB-410W is simple even when ceiling mounted. Changing the filter or lamp is a simple end-user changeable operation meaning you don’t require the additional expense of a visit from a service agent.
Purpose Built Epson Wall Mount
Designed by Epson engineers to ensure seamless integration with your Epson Short Throw Projector, the ELP-MB24 is an attractive addition to any Interactive Whiteboard configuration in the classroom or office.

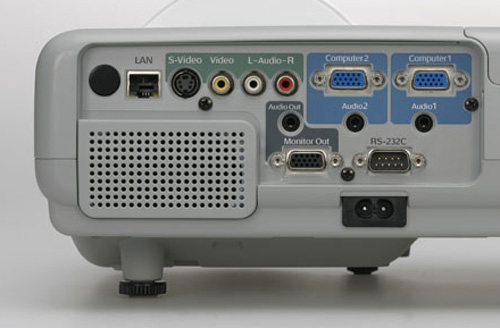

Connectivity Panel
| PRODUCT TYPE | Entry Level Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.56 inches with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 1,024,000 pixels (1280 x 800) x 3 | ||
| Native resolution | WXGA | ||
| Aspect ratio | 16:10 (which covers 16:9 and 4:3) | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 50Hz-60Hz | ||
| PROJECTION LENS | Type | Digital zoom / Manual focus | |
| F-number | 1.8 | ||
| Focal length | 6.48mm | ||
| Zoom ratio | 1.0 - 1.35 (Digital) | ||
| LAMP | Type | 170W UHE E-TORL | |
| Life (estimated) | 4000Hr ( Low Brightness )# 3000Hr ( High Brightness )# #Subject to operation & environmental conditions. |
||
| OPTICAL SYSTEM | Dichroic Mirror Separation & Prism combine method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 50 to 110 inch [0.54 to 1.22 m] | ||
| BRIGHTNESS | |||
| High Brightness Mode | 2,000 Lumens Light Output 2,000 Lumens Colour Light Output (Colour mode: Game) |
||
| Low Brightness Mode | 1,600 Lumens Light Output 1,600 Lumens Colour Light Output (Colour mode: Game) |
||
| CONTRAST | 500:1 | ||
| BRIGHTNESS UNIFORMITY | 85% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| VIDEO QUALITY | Simple Interlace - Progressive conversion | ||
| SOUND OUTPUT | 10W monaural | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) | |||
| PIXEL CLOCK | 13.5MHz to 162MHz | ||
| HORIZONTAL | 15KHz to 92KHz | ||
| VERTICAL | 50Hz to 85Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation / Sharpness / Input
Signal Colour Temperature / Tracking / Position / Sharpness / Volume etc... / |
||
| FOOT ADJUSTER | Front-centre | ||
| TILT ANGLE | 0 to 13 degrees | ||
| KEYSTONE CORRECTION | Vertical: +/- 15 degrees | ||
| PASSWORD PROTECTED FUNCTION (security function) | Implemented | ||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1280 x 800 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47k-ohm | ||
| INPUT TERMINAL | Video | D-sub 15pin x 1 Blue moulding | |
| Audio | Stereo mini jack x 2 | ||
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp) |
||
| OUTPUT TERMINAL | Video | D-sub 15pin x 1 (Black moulding) | |
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 lines (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
| Audio signal | 500mVrms / 47k-ohm | ||
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin Blue molding |
|
| Audio | RCA x 1 (White/Red ) | ||
| CONTROL I/O | |||
| SERIAL I/O | Terminal | D Sub 9 pin x 1 | |
| Signal | RS-232C | ||
| Network Interface | RJ45 x 1 | ||
| EASY MP | |||
| FUNCTION | E-mail notification | SNMP | Web control | PJ-Link | AMX Device Discovery compatible |
| SOFTWARE | EMP Monitor (for Windows) | ||
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity ) | ||
| COOL-DOWN PERIOD | "Instant Off" | ||
| START-UP PERIOD | Approx. 5 seconds (warm up 30 seconds) | ||
| DIRECT POWER ON | Yes | ||
| DIRECT POWER OFF | Yes | ||
| POWER SUPPLY VOLTAGE | 100-240V AC±10% 50/60Hz | ||
| POWER CONSUMPTION | 100-240VAC 2.7-1.1A 50/60Hz Lamp 251W/236W (Lamp on) 4.2W/5.5W (standby, network off) |
||
| EXHAUST DIRECTION | Side | ||
| DIMENSION | |||
| EXCLUDE FEET | 258(D) x 327(W) x 95(H) mm | ||
| MAXIMUM DIMENSION | 272(D) x 327(W) x 157(H) mm | ||
| WEIGHT | Approx. 3.6kg | ||
| FAN NOISE | |||
| HIGH BRIGHTNESS MODE | 35dB | ||
| LOW BRIGHTNESS MODE | 28dB | ||
| WARRANTY | |||
| STANDARD WARRANTY | 3 years* *excluding lamp |
||
| * For more information visit Epson Projector Warranty Website | |||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| COMPUTER CABLE | 1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| REMOTE CONTROL | Included | ||
| PASSWORD PROTECT STICKER | Included | ||
| Epson PROJECTOR SOFTWARE | CD-ROM | ||
| OWNER'S MANUAL | CD-ROM | ||
| PRODUCT OPTIONS | |||
| Item Code | Description | ||
| V13H010L42 | Lamp | ||
| 7012083 | Ceiling mount with telescopic pole | ||
| 7012084 | Ceiling mount standard | ||
| V12H003B24 | Short Throw Wall Mount | ||
| #Subject to operation and environmental conditions. | |||
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. | |||
