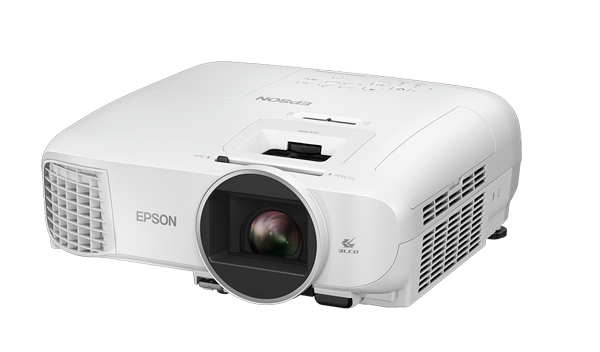

Back catalogue – EH-TW5600
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| WHAT'S IN THE BOX | |||
|---|---|---|---|
| EH-TW5600 Projector, Power Cable, Remote Control + Batteries, Manual | |||
| TECHNOLOGY | |||
| Projection System | 3LCD | ||
| LCD Panel | 0.61-inch wide panel | ||
| Lamp Type | 200W UHE | ||
| IMAGE | |||
| Colour Light Output | 2,500 Lumens | ||
| White Light Output | 2,500 Lumens | ||
| Resolution | 1080p | ||
| Native Aspect Ratio | 16:9 | ||
| Contrast Ratio | 35,000:1 | ||
| Colour Reproduction | Up to 1.07 billion colours | ||
| Colour Processing | 10 bit | ||
| Keystone Correction | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |
||
| Lens Shift | Vertical: +15% Horizontal: NA |
||
| Optical Zoom | 1 - 1.6 (Optical) | ||
| Screen Size | 30" to 300" [0.87 to 8.9m] (Zoom: Wide) 30" to 300" [1.42 to 14.5m] (Zoom: Tele) |
||
| Projection Distance | 100" screen 2.95m - 4.78m | ||
| Throw Ratio | 1.33 (Zoom: Wide), 2.16 (Zoom: Tele) | ||
| Projection Lens F Number | 1.51-1.99 | ||
| Projection Lens Focal Length | 18.2 mm-29.2 mm | ||
| Focus Method | Manual | ||
| CONNECTIVITY | |||
| Input: Video | 1x D-sub 15-Pin (RGB), 1 x USB for firmware update, 1 x USB mini B (service) | ||
| Input: Computer | 1 x D-sub 15-pin (RGB) | ||
| Input: Digital | 2 x HDMI (1 x MHL) | ||
| Output: Audio | 1 x Audio out | ||
| Speaker Output | 1 x 10W | ||
| ADVANCED FEATURES | |||
| MHL - Mobile High Definition Link | Yes | ||
| Detail Enhancement | Yes | ||
| AV Mute | Yes | ||
| Frame Interpolation | Yes | ||
| 2D to 3D Conversion | Yes | ||
| Direct Power On | Yes | ||
| Bluetooth Audio | Yes (SBC, aptX) | ||
| Security | Kensington® – style lock provision | ||
| Colour Modes | 2D: Dynamic, Bright Cinema, Natural, Cinema 3D: 3D Dynamic, 3D Cinema |
||
| GENERAL | |||
| Dimensions D x W x H | 285 x 309 x 122 mm | ||
| Weight | Approx. 3.4kg | ||
| Projector Warranty | 2 Years | ||
| Lamp Warranty | 1 Year or 750 Hours* | ||
| Power Consumption: Lamp on | 296 W | ||
| Power Consumption: Standby | 0.2 W | ||
| Noise Level | Normal / Eco: 37 / 27 dB | ||
| * Which ever comes first. | |||
| PRODUCT OPTIONS | Item Code | Description | |
| V13H010L96 | Replacement Lamp | ||
| V13H134A54 | Replacement Filter | ||
| V12H003B23 | Ceiling Mount | ||
| V12H003P13 | Extension Pole 668-918mm | ||
| V12H003P14 | Extension Pole 918-1,168mm | ||
| V12H548001 | 3D Glasses | ||
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. | |||
