Back catalogue – Epson TM-L90

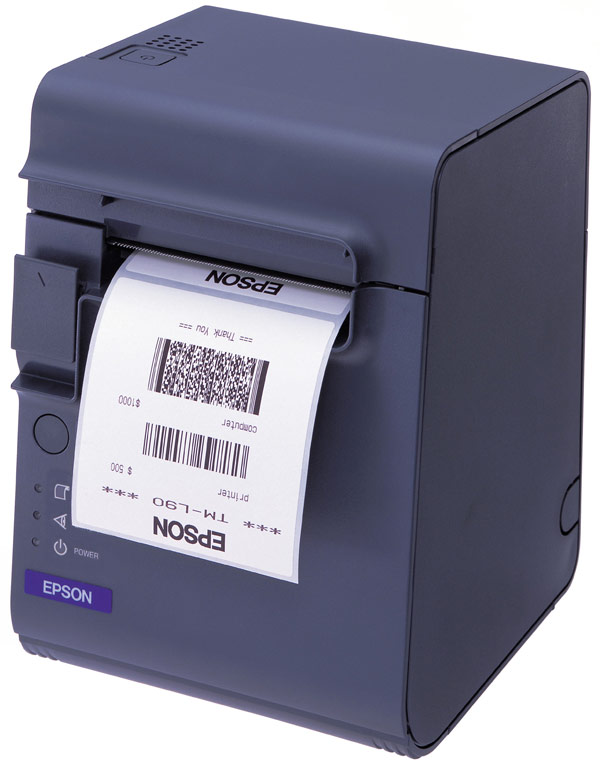

Epson brings you the TM-L90, a revolutionary new label printer. Until now, label printers have been placed at the back, in the stockroom - anywhere so they can't be seen by customers. But Epson's new TM-L90 thermal label printer changes all that. Designed for retailers, post offices, and all other establishments that need to print labels - fast - in front of customers, its attractive, practical design makes it ideal for businesses that rely on face-to-face customer contact. And it's not only speed and versatile paper handling that sets the TM-L90 in a class of its own. A first for a printer of its type, the TM-L90 gives users the choice of printing in either one or TWO colours. Logos and highlighting are just some of the exciting design possibilities that are opening up - with the Epson TM-L90.
KEY FEATURES & BENEFITS- High speed printing at 150 mm/sec
- Two colour text and logos
- Large paper Rolls of 90mm dia
- Selectable paper widths 38-70, or 80mm
- Drop in paper load
- Gap sensing or Black Mark sensing
- High Reliability with a MCBF rating of 70 million lines
Developer Support
As with most of Epson's range of POS products, we provide a comprehensive suite of drivers and utilities, to reduce the costs of development and integration. Please contact us for more information on your application requirements.
ESC/POS is a registered trademark of Seiko Epson CORPORATION.
Epson is a member of OPOS committee
Label Printers |
||||||
| PRINTER | ||||||
|---|---|---|---|---|---|---|
| PRINT METHOD | Thermal line printing | |||||
| PRINT FONT | 9*17/12*24 | |||||
| COLUMN CAPACITY | 64/48 columns | |||||
| CHARACTER SIZE | 1.1(W)*2.1(H)/1.5(W)*3.0(H)mm | |||||
| CHARACTER SET | 95 Alphanumeric characters, 37 International characters, 128*11 Graphic characters | |||||
| CHARACTER PER INCH | 22.6 CPI / 16.9 CPI | |||||
| BARCODE | UPC-A, UPC-E, JAN8(EAN8), JAN13(EAN13), CODE 39, CODE 93, CODE 128, ITF, CODABAR,PDF417, Maxicode, QRCode. | |||||
| PRINT SPEED | Max. 150mm/sec | |||||
| DATA BUFFER | 4K bytes / 45 bytes | |||||
| INTERFACE | RS-232C / Bi-directional parallel / RS-485 / USB / 10 Base-T | |||||
| PPAER DIMENSIONS | Thermal roll paper: 79.5 ± 0.5*dia. 90.0mm | |||||
| POWER | 24 VDC±10% | |||||
| CURRENT CONSUMPTION | Approx. 1.7 A (at 24 VDC) | |||||
| D.K.D. FUNCTION | 2 drivers | |||||
| RELIABILITY | MTBF: 36*104 hours MCBF: 70*106 lines (When printing receipt) |
|||||
| EMC STANDARDS | VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B | |||||
| SAFETY STANDARDS | UL, C-UL, TÜV | |||||
| OVERALL DIMENSIONS | 140mm (W) x 148mm (D) x 203mm (H) | |||||
| WEIGHT | Approximately 1.9Kg | |||||
