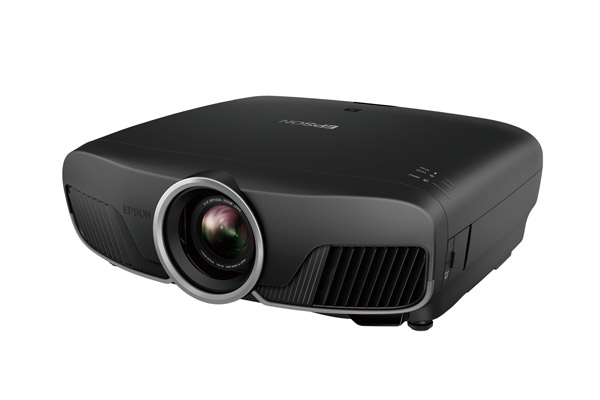

Epson EH-TW9400

EH-TW9400

Home Theatre Projectors

Projection perfected with 4K experience



PRODUCT NAME EH-TW9400
PRODUCT CODE V11H928053
WHAT'S IN THE BOX
  EH-TW9400 Projector, Power Cable, Remote Control + Batteries, HDMI Clamp x 2, User Manual
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.74-inch wide panel with MLA (C2 Fine, 12 bit, OD)
Pixel Number 2,073,600 dots
(1920 x 1080)
Resolution 4K Enhancement*
1920 x 1080 x 2
OPTICAL
Zoom 1 - 2.1 (Optical)
Screen Size 50" to 300" [1.48 to 9.08 m] (Zoom: Wide)
50" to 300" [3.13 to 18.99 m] (Zoom: Tele)
Projection Distance 100" screen 3.0 - 6.3 m
Throw Ratio 1.35 (Zoom: Wide), 2.84 (Zoom: Tele)
Projection Lens F Number 2.0-3.0
Projection Lens Focal Length 22.5mm - 46.7mm
Focus Method Powered
Colour Light Output 2,600 Lumens
White Light Output 2,600 Lumens
Native Aspect Ratio 16:9
Contrast Ratio 1,200,000:1
Lamp Type 250 W UHE
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: N/A
Lens Shift (Powered) Vertical: -96.3% to +96.3%
Horizontal: -47.1% to +47.1%
CONNECTIVITY
Input: Digital 2 x HDMI (1 x HDCP2.2)
Input: Computer 1 x D-sub 15-pin (RGB)
Input: Opt. HDMI 1 x USB A
Input: Control 1 x RS232c
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Trigger Out 3.5 mm mini-jack
Wireless Connectivity Optional
ADVANCED FEATURES
WirelessHD No
Super Resolution Yes
High Dynamic Range - HDR10 Yes
Hybrid Log Gamma - HLG Yes
Image Enhancement Yes
Frame Interpolation Yes
4K Enhancement Yes
3D Formats Top-and-Bottom, Side-by-Side
2D to 3D Conversion No
Internal Speakers No
Picture in Picture No
Direct Power On Yes
Security Kensington®-style lock provision
Aspect Modes Yes (Auto / Normal / Full / Zoom / Anamorphic Wide / Horiz.Squeeze)
Colour Modes 2D: Dynamic, Bright Cinema, Natural Cinema, Digital Cinema 3D: 3D Dynamic, 3D Cinema
GENERAL
Dimensions D x W x H 450 x 520 x 192.7 mm
Weight 11.2kg
Lamp Warranty 3 Years
Projector Warranty 3 Years
Power Consumption: Lamp on 298 W
Power Consumption: Standby 2 W
Noise Level (Normal/Eco) 31/20 dB

* 4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode.
PRODUCT OPTIONS Item Code Description
  Spare Lamp ELPLP89
  Spare Air Filter ELPAF39
  Ceiling Mount ELPMB22
  Flush Mount ELPMB30
  Suspension Adapter 450mm ELPFP13
  Suspension Adapter 700mm ELPFP14
