Back catalogue – Epson ELP-CB03 Cable Management & Connection Box

KEY FEATURES & BENEFITS
  • Centralised Control Box – manage your Epson short-throw or ultra-short-throw projector (power, AV mute, volume, sources; wall mounted, no remote control needed)
  • Optimised for connectivity – supports an array of sources, including 2 HDMI inputs for displaying content from high-definition devices, connect the latest MHL-enabled smartphone or table via MHL cable
  • Consolidated Cable Management – convenient wall placement helps avoid potential hazards
  • Increased Flexibility – use as an extension box to expand the range of your cables
  • Easy Operation – large, individual source buttons intuitively match Epson projector inputs, including a new direct source button for HDMI3
  • Amplify Instruction – optional speakers boost sound and ensure the entire class can hear the lesson

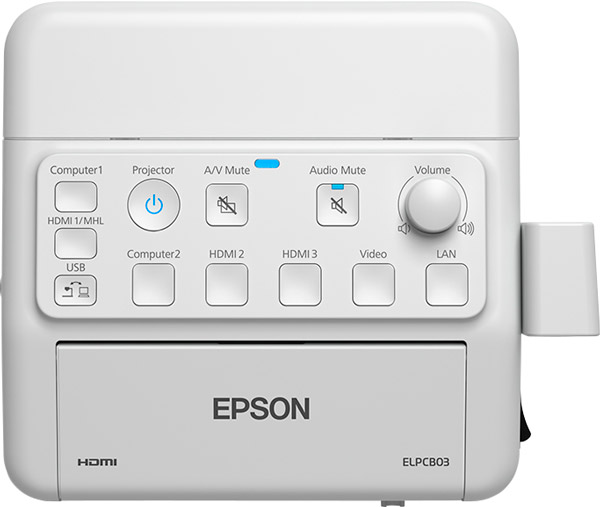

Centralised Control Box

The Epson ELP-CB03 Connection and Control Box is a solution that offers extensive control of multimedia sources connected to Epson's wall-mounted short-throw and ultra-short-throw classroom projectors.




The ELP-CB03 is a wall-mountable control box which features large, easy to use control buttons and a cable cover that creates a clean, organised look to help avoid cable chaos. The control box is designed to mount on the wall next to the projected image, making it easily accessible to educators and enabling them to change sources or adjust volume with the press of a button, eliminating the need for a projector remote control.

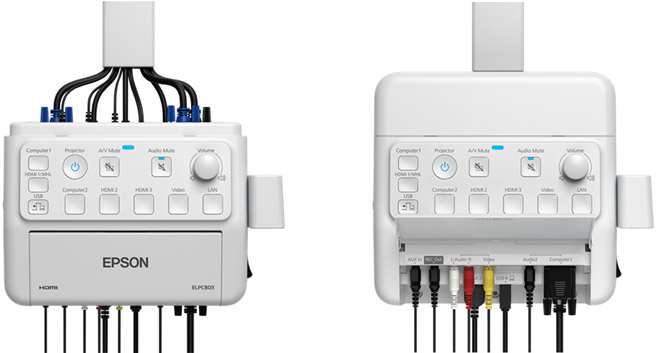

Connectivity Configurations

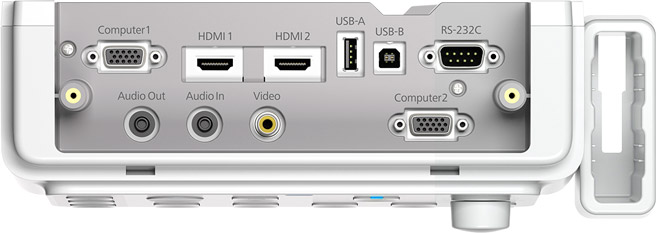

Top View

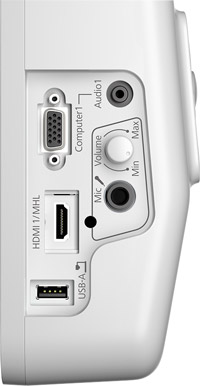

Side View

PRODUCT TYPE Projector Cable Management
PRODUCT NAME
PRODUCT CODE
Whats in the Box Epson ELPCB03, Power Cable, AC Adapter, AC Adapter holder, Interactive Pen Holder, Cable Cover with screw, HDMI Cable Clamp, User Guide
I/O
INPUT Video 2 x VGA
Composite Video
2 x HDMI (1 x MHL)
USB-A
USB-B
  Audio 4 x Stereo mini jack (3.5mm)
RCA Connector (L and R)
Mic In (6.3mm)
OUTPUT Video 2 x VGA
Composite Video
2 x HDMI
USB-A
USB-B
  Audio 2 x Stereo mini jack (3.5mm)
CONTROL   RS-232C (9 pin)
GENERAL
OPERATING TEMPERATURE   5°C to 35°C
OPERATING HUMIDITY   20% TO 80% RH
DIMENSIONS   230 W x 83 D x 226 H mm (with cover)
WEIGHT   1.2kg
POWER
POWER SUPPLY VOLTAGE   100 - 240V AC/DC
POWER FREQUENCY   50/60Hz
AC ADAPTOR OUTPUT VOLTAGE   DC 12V
POWER CONSUMPTION   12W
POWER CONSUMPTION (Standby Mode)   0.1W
WARRANTY
  STANDARD WARRANTY 1 year
