Epson SurePress L-6534VW

SurePress L-6534VW

Industrial Products

High speed, outstanding finish, low TCO



SPECIFICATIONS
Print Technology PrecisionCore linehead inkjet technology
Resolution 600 x 1200 dpi (maximum)
Ink Type LED UV Curable Inks
Ink Cartridge Black, Cyan, Magenta, Yellow, Digital Varnish, White
Web Width 80mm to 340mm
Image Size 330mm x 1000mm
Print Speed 50m/min ; 30m/min ; 15m/min ; 7.6m/min
Substrate PP, PE, PET, YupoTM, Coated paper, Uncoated paper, and foil.
Substrate Thickness 80 to 320 microns
Unwinder Capacity 100kg / 600mm diameter / 1000m length (thickness <-150um)

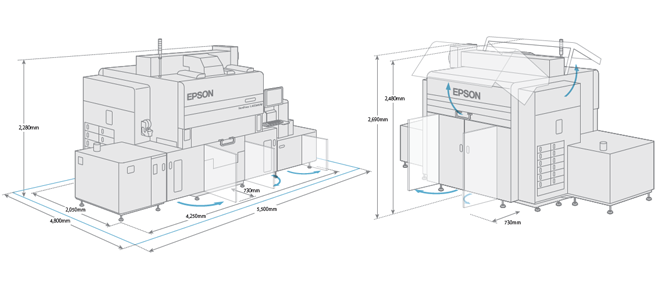

Dimension (W x D x H) 4250mm x 2285mm x 2485mm (includes Corona Treater and Additional UV Lamp Curing Unit)
Weight 2,710kg (includes Corona Treater and Additional UV Lamp Curing Unit)
Environment 20 – 28 °C, RH 35 – 55%, No condensation required

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

This printer is designed to function only with genuine Epson ink cartridges and not with third party ink cartridges. The printer may not function properly or at all if you use third party ink cartridges.
