44" SpectroProofer 30 Upgrade Kit
This device is designed to help operators achieve a high degree of colour accuracy when transitioning from design to print. It also helps ensure colour consistency is maintained from one print to the next. When used with appropriate RIP software it helps automate calibration and verification. It ships in two parts including a head unit and a mounting bracket that attaches to the front of compatible Epson printers.
This product is designed to integrate with existing print workflows. It is particularly useful for contract proofing and the generation of colour certification labels. It operates with either a black or white backing on the measurement patch and conforms to the ISO standard with a selectable UV cut filter that can be activated for media that includes an optical brightener.

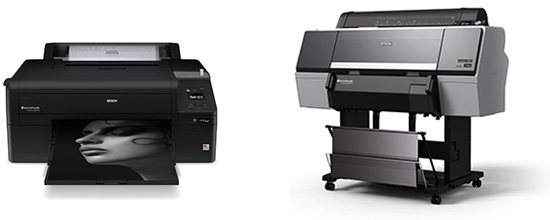

The Epson SpectroProofer® is an optional, high-performance, in-line spectrophotometer that can be added to selected Stylus Pro and SureColor large format printers. When driven by an appropriate RIP it enables precision proofing and addition of colour management into a commercial or flexographic production workflow. It enables photographers and artists to be assured that their final output will be a true reflection of their intention. Designers can produce internal reference material as well as colour accurate samples for client approval. Printers can produce contract proofs, colour certification labels and material for production control.

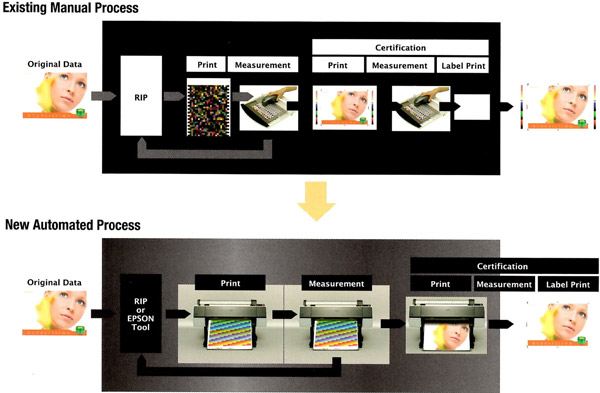

The SpectroProofer provides an extreme level of measurement accuracy which conforms with the latest ISO and Fogra standards. It enables media calibration and output verification to ensure that artwork transitions from file to print with precise and accurate results. When used with appropriate software, the process can be configured to work automatically so that colour consistency is maintained from one print to the next.
The SpectroProofer ships as a series of kits that contain an ILS sensor unit and a mounting kit to suit specific Epson printer models. The latest ILS 30 sensor incorporates a selectable UV cut filter that can be adjusted via software to support different media types and calibration to suit ISO M0, M2 and M1 standards.
All models are simple and easy to install. They come with instructions and utility software to suit Mac & Windows operating systems. They are backed with a 1 year on-site warranty that can be extended through purchase of an optional SpectroProofer CoverPlus Pack.
| TECHNICAL | |
|---|---|
| Spectral Range | 400-700 nM |
| Standard Observer | 2° / 10° |
| Light Source | Tungsten (2850° K) with UV LED |
| Measurement Aperture | 3.55 mm diameter |
| Measurement Geometry | 0° / 45° ANSI / ISO 5.4 |
| Accuracy Average | 0.50 dE cmc / Max 1.0dE cmc |
| Repeatability Max | 0.2 dE cmc white / 0.8 dE cmc black |
| Measurement | 16 points |
| Reporting | 31 points |
| Compliance | ISO 13655 M0, M1 & M2 |
| ENVIRONMENTAL | |
|---|---|
| Operational Temp | 10° to 35°C (15-25°C recommended) |
| Operational Humidity | 30 to 80% with no condensation (40-60% recommended) |
| Power Consumption | 10.5 W Max Operating / 3.5 W Sleep |
| WHAT'S IN THE BOX |
|---|
| ILS Scanning Unit, Mounter Kit, White & Black Backing Plates, Calibration Tile, User Guide, Printer Linearization & SpectroProofer Utility s/w (on CD) |
| WARRANTY | |
|---|---|
| Code | Description |
| 1YWSPECTRO | 1 Year SpectroProofer Service Pack |
| 2YWSPECTRO | 2 Year SpectroProofer Service Pack |
| The Epson SpectroProofer comes with a 1 year on-site warranty. Cover can be extended through purchase of one or more optional Service Packs. | |
