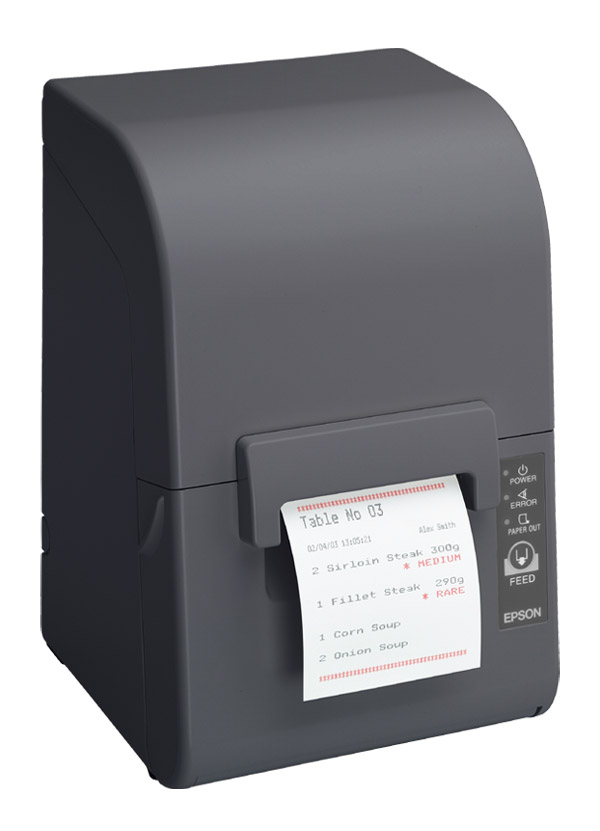

Epson TM-U230

A new Epson impact printer, designed specifically for kitchen and hospitality environments!

KEY FEATURES & BENEFITS

The Epson TM-U230 brings some exciting new features to an already strong line-up. Some of these features include:
  • High speed printing @approx. 3.5lps
  • Resistance case coating – For protection against liquids and solvents
  • In-built buzzer – Which can be used for order delivery
  • Can be wall mounted – Vertically or horizontally (uses Epson WH-10 bracket)
  • Dual drainage system – To safeguard operation in the event of a liquid spillage
  • Integrated power supply
  • High reliability – With a MCBF rating of 18 million lines

Developer Support
As with most of Epson's range of POS products, we provide a comprehensive suite of drivers and utilities, to reduce the costs of development and integration. Please contact us for more information on your application requirements.

Impact Dot Matrix Printers
PRINTER
PRINT METHOD 9-pin, serial impact dot matrix
PRINT FONT 7 x 9 / 9 x 9
COLUMN CAPACITY 40 or 42 columns / 33 or 35 columns
CHARACTER SIZE 1.2(W) x 3.1 (H) mm / 1.6 (W) x 3.1 (H) mm
CHARACTER SET 95 Alphanumeric characters, 32 International characters, 128 x 8 Graphic characters, Traditional and Simple Chinese
PRINT SPEED Approx. 3.5 LPS (40 columns, 16CPI) / Approx. 6.4 LPS (16 columns, 16 CPI)
DATA BUFFER 1 KB/ 16 KB
INTERFACE RS-232C, Bi-directional parallel,
Dealer Option: RS-485, USB, 10 Base T I/ F
PAPER DIMENSIONS 76mm ± 0.5mm x dia. 83.0mm (roll)
PAPER THICKNESS 0.06 to 0.085mm
COPY CAPABILITY One original
INKED RIBBON ERC-38 (black, black/red)
RIBBON LIFE Black: 3 x 106 characters
B/R: 15 x 105 characters (black) 75 x 104 characters (red)
POWER SUPPLY AC adapter (included)
POWER CONSUMPTION Approx. 43 W average
RELIABILITY
D.K.D. FUNCTION 2 drivers
MTBF 18 x 104 hours
MCBF 18 x 106 lines
EMI STANDARDS VCCI class A, FCC class A, CE marking, AS/ NZS 3548 class B
SAFETY STANDADS UL, C-UL, TÜV (EN60950)
OVERALL DIMENSIONS 166mm (W) x 168mm (D) x 260mm (H) (Approx. 2.7Kg)
PRODUCT OPTIONS
WH-10 Wall mounting bracket
