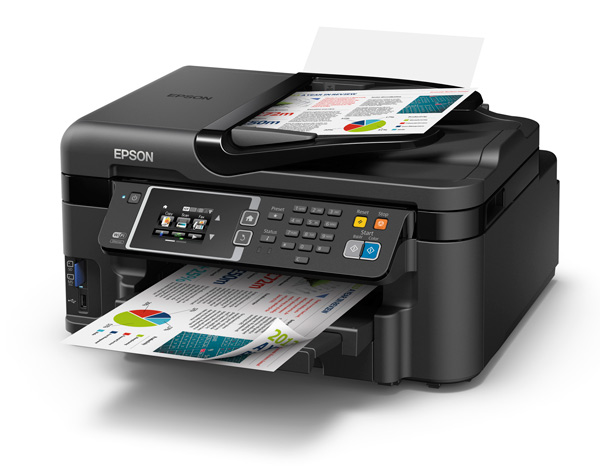

Back catalogue – WorkForce WF-3620
Printer |
||
| PRINTER TYPE | ||
|---|---|---|
| PRINTING METHOD | On-demand Inkjet (piezoelectric) | |
| NOZZLE CONFIGURATION | 800 nozzles Black, 256 nozzles each colour (Cyan, Yellow, Magenta) | |
| MINIMUM INK DROPLET VOLUME | 3.8 Picolitres | |
| WHAT'S IN THE BOX | - WorkForce Pro WF-3820™ All-in-One Printer - Instruction manual - CD-ROM for product setup - Power cord - USB cable and Fax cable not included (Optional extra) - Initial ink cartridges: Black, Cyan, Magenta, & Yellow |
|
| RESOLUTION | ||
| 4800 x 2400 dpi with (with Variable Sized Droplet Technology) | ||
| PRINT SPEED | ||
| BLACK TEXT A4 (Normal) | 21.0 ISO ppm1 | |
| COLOUR TEXT A4 (Normal) | 11.0 ISO ppm1 | |
| BLACK - 2 - SIDED PRINTING | 12.0 ISO ppm1 | |
| COLOUR - 2 - SIDED PRINTING | 7.0 ISO ppm1 | |
|
PAPER HANDLING
|
||
| PAPER FEED METHOD | Friction feed with paper feeder and automatic document feeder | |
| PAPER SIZES | A4, A5, B5, A6, Legal, 13 x 18cm, 10 x 15cm, 9 x 13cm, 13 x 20cm, 20 x 25cm Envelopes: C6, No 10, DL | |
| PAPER HOLD CAPACITY | Paper tray input capacity: 1 x 250 sheet cassette, A4 Plain paper (80g/m2) | |
| DOUBLE-SIDED PRINTING | Yes (internal) | |
| *True BorderFree™ printing is available for the following media sizes: 4" x 6", 5" x 7" and A4. Media types recommended : Premium Glossy Photo paper A4, 4" x 6" and 5" x 7", Matte Paper - Heavyweight. BorderFree prints are media dependent. |
||
Scanner |
||
|
SCANNING
|
||
| SCANNER TYPE | A4 Flatbed colour image scanner | |
| DOCUMENT SIZE | Up to A4 | |
| PIXEL DEPTH | Input 48bits / output 24bits | |
| SCANNING RESOLUTION | 1200 x 2400dpi | |
Copy Function |
||
| COPY SPEED | ||
| COPY SPEED BLACK TEXT NORMAL (A4) | 19.0 ISO ipm1 | |
| COPY SPEED COLOUR TEXT NORMAL (A4) | 9.0 ISO ipm1 | |
| REDUCTION/ENLARGEMENT | 25-400% | |
FAX |
||
| TRANSMISSION & RECEPTION | ||
| TYPE | Colour and mono support | |
| LINES | PSTN (general phone lines) | |
| TRANSMISSION SPEED | Up to 33.6kbs (approx. 3 secs per page) | |
| SPEED DIAL | Up to 100 Names & Numbers | |
| MEMORY | Up to 180 pages (ITU-T No.1 chart) | |
| FAX RESOLUTION (MONO) | Standard (8pels/mm x 3.85lines/mm), Fine (8pels/mm x 7.7lines/mm), Super Fine (8pels/mm x 15.4lines/mm), Ultra Fine (16pels/mm x 15.4lines/mm), Photo (8pels/mm x 7.7lines/mm) | |
| FAX RESOLUTION (COLOUR) | Fine (200x200), Photo (200x200 with error diffusion) | |
| ERROR CORRECTION MODE | CCITU/ITU Group3 fax with Error Correction Mode | |
| PC FAX* Windows only | Yes | |
| GROUP DIAL | Yes (up to 99 groups) | |
| BROADCAST FAX | Yes (mono only) | |
| AUTO REDIAL | Yes | |
| AUTOMATIC DOCUMENT FEEDER FUNCTION | ||
| MAXIMUM DOCUMENT SIZE | A4 | |
| PAPER TYPES SUPPORTED | Plain paper 64~95g/m2 | |
| CAPACITY | 35 pages (80g/m2) or 3.85 mm (Legal, Letter,A4) | |
General |
||
| OPERATING SYSTEMS | ||
| PRINTER DRIVERS* | Windows® XP SP3 /XP Professional x64 Edition SP2 or later/ Vista/7/8/8.1/10, Windows Server 2003 SP2 or later/2003 R2/ 2008/2008 R2/2012/2012 R2,2016,2019 Mac® OS 10.6.8 or later* |
|
| ELECTRICAL SPECIFICATIONS | ||
| RATED VOLTAGE | AC 100 ~ 240V | |
| RATED FREQUENCY | 50 ~ 60Hz | |
| POWER CONSUMPTION
|
Approx. 15W Standalone copying (ISO/IEC 24712) Approx 1.2W (Sleep Mode) |
|
| NOISE LEVEL | ||
| NOISE LEVEL* | LwAd B(A) : 6.8 LpAm dB(A): 53db |
|
| * According to ISO7779 Pattern with Plain Paper | ||
| INTERFACES | ||
| CONNECTIVITY | High–Speed USB — Compatible with the USB 2.0 Specification. | |
| MOBILE PRINTING | Epson Connect (Email Print - scan to cloud, + Epson iPrint) AirPrint Scan to Cloud Remote Print Driver |
|
| NETWORKING | 802.11b/g/n Wi-Fi, Wi-Fi Direct® 10-Base-T, 100 Base-TX Ethernet |
|
| LCD SCREEN | 2.7" Touchscreen LCD | |
| CARD SLOTS | ||
|
Built in |
USB Host | |
| PRINTER SOFTWARE | ||
| SOFTWARE TOOLS* | Epson Event Manager Epson Easy Photo Print Online Guide (administrator guide not bundled) PC FAX |
|
| *All software for MAC not on CD, downloadable from Epson Support | ||
| WARRANTY | ||
| 12 months return to base | Standard | |
| Optional Additional 2 Year Warranty | 2YW3620 | |
| 36 months return to base warranty. For an additional 24 months (total of 36 months), register online at www.epson.co.nz/registrations within 90 days of purchase. | ||
| Epson Warranty | ||
| PRODUCT DIMENSIONS | 425mm (W) x 379mm (D) x 249mm (H) | |
| WEIGHT | 8.8kg | |
| INK CARTRIDGES & YIELDS | ||
| STANDARD CAPACITY INK CARTRIDGES | 812 Black, 812 Cyan, 812 Magenta, 812 Yellow | |
| HIGH CAPACITY INK CARTRIDGES | 812XL Black, 812XL Cyan, 812XL Magenta, 812XL Yellow | |
| STANDARD CAPACITY YIELD3 | Approx. Black - 350 pages, Composite Colour - 300 pages | |
| HIGH CAPACITY YIELD3 | Approx. Black - 1100 pages, Composite Colour - 1100 pages | |
|
2 According to ISO/IEC24711 and 24712 test suite. Click here for details on ISO testing. (PDF) This printer is designed to be used only with Genuine Epson ink cartridges. Epson ink cartridges are not designed for refill. |
||
This printer is designed to function only with genuine Epson ink cartridges and not with third party ink cartridges. The printer may not function properly or at all if you use third party ink cartridges. |
||
