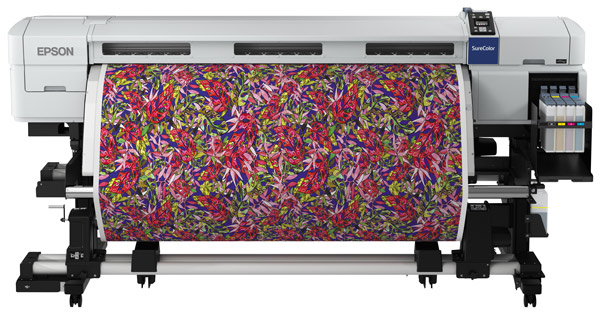

Back catalogue – SureColor F7100 - 64"
| SIZE | |||
|---|---|---|---|
| Max Media Width | 64 inch (1625.6mm) wide | ||
| PRINT TECHNOLOGY | |||
| Print Head | 10 channel PrecisionCore™ TFP with VSDT | ||
| Print Modes | Uni & Bi-directional | ||
| Nozzle Configuration | 360 x 2 per colour | ||
| Maximum Resolution | 720 x 1440dpi | ||
| Minimum Ink Droplet Size | 5.3pl | ||
| INK SYSTEM | |||
| Family | Epson Ultrachrome® DS | ||
| Type | Dye Sublimation | ||
| Colours | C+Y+M+K | ||
| Supply | 4 x 1.5L Continuous Ink Supply System (CISS) | ||
| Refills | 1L packs (shipped in cartons of six packs per colour) | ||
| PERFORMANCE | |||
| Draft | 58.9m2/hr 720 x 360dpi 1 pass | ||
| High Speed | 30.4m2/hr 720 x 720dpi 2 pass | ||
| Production 1 | 21.3m2/hr 720 x 720dpi 3 pass | ||
| Production 2 | 16.2m2/hr 720 x 720dpi 4 pass | ||
| High Quality | 11.1m2/hr 1440 x 720dpi 6 pass | ||
| Max Quality | 8.2m2/hr 1440 x 720dpi 8 pass | ||
| Performance figures are provided for comparison purposes and represent engine print speeds only. Individual jobs may take a variable amount of time to complete depending on a number of factors including workflow configuration, paper type, RIP, file format & size, print resolution, ink coverage, networking, etc. | |||
| MEDIA SUPPORT | |||
| Format | Single roll with 2" or 3" core, 250mm max diameter & 40Kg max weight | ||
| Thickness | 0.08-1mm (75gsm or greater) | ||
| Width | 300-1625.6mm | ||
| Margins | 5mm left & right (10mm when using media holding plates) | ||
| Loading | Spindle-less, single operator rear mounting with ATC | ||
| Output | Sheets (manual cutting) or rolls with +/2.5mm winding accuracy on the ATU | ||
| OPERATION | |||
| Control Panel | 2.5” Colour LCD | ||
| Interface | USB 2.0 & Ethernet 100Base-TX/1000Base-T | ||
| Included Software | Windows Communications Driver, Epson LFP RemotePanel2, EpsonNet Setup, EpsonNet Config., EpsonNet Print, Ergosoft Sublimation Professional (Epson Edition)... Additional software compatibility Info | ||
| Memory | 512 MB Main + 128MB Network | ||
| Media Output Heater Modes | 0, 30-55°C | ||
| ENVIRONMENTAL | |||
| Operational Temp | 15°-35° (15°-25° recommended) | ||
| Operational Humidity | 20 to 80% with no condensation (40-60% recommended) | ||
| Power Supply | 110 - 240 V, 50 Hz - 60 Hz AC, 0.5-1A | ||
| Power Consumption | 460W Operating, 10W Sleep | ||
| Operating Noise | 59dB | ||
| PHYSICAL | |||
| Printer Dimensions (WxHxD) & Weight | 2620 x 1311 x 1013mm, 269Kg (without CISS, no ink) | ||
| Packaging (Main Unit) | 3180 x 1105 x 1026mm, 296Kg | ||
| Packaging (Media Supply System) | 3100 x 1100 x 720mm, 110Kg | ||
| WHAT'S IN THE BOX | |||
| Printer, Media Supply System with ATU, Ink Tank System, 2 x Power Cord, 4 x 1L Ink packs, 1 x Waste Ink bottle, 1 x Maintenance Kit, 1 x 64” Roll of Epson Multi-Purpose Transfer Paper, Installation/Safety manual, Utility & User manual (CD), Ergosoft RIP software (Professional Epson Edition) & Warranty Info. Ergosoft TexPrint is one of the world’s premier solutions for dye sublimation work. The software features an advanced RIP engine with precision colour management. The Epson Sublimation Edition has been configured specially for the SureColor-F series with custom drivers and features normally only available as optional add-ons. The F7100 ships with the full Professional configuration that includes support for premium quality, high volume work with ad-hoc and scheduled production. It includes features such as Tiling, Shrinkage Correction, no-gap Repeat and Step & Repeat printing, Custom Linearization, Automatic Colour Replacement, Image add-ons, Position Templates and Image Pre-sets, Colour Profiling, Job Costing, Proofing, Ticketing, Quality tracking, and Hot Folder batch processing. Note: 30-50% of the ink supplied with the printer will be used during installation & set-up. It is recommended that customers consider ordering an additional set of ink at the time of purchase. The independent sourcing of appropriate transfer equipment will be required and a heater/blower system may also be advisable depending on the operational environment - please consult your dealer for details and options. |
|||
| SYSTEM REQUIREMENTS | |||
| A Personal Computer will be required for installation and operation of this printing system. 1000Base-T Ethernet networking is recommended for best performance. High speed web access and an off-line storage facility with DVD+/-RW write support is recommended for optimum operational flexibility. The ATC & ATU have been designed for optimum results at production speeds with limited performance in Draft mode. Operation in Draft mode, with heavy ink loads, with certain media types, and in environments with low temperature &/or high humidity may require the use of an ancillary 3rd party heater/blower. The PC should have an Intel Core i3 /AMD Phenom 2 or faster processor (i5 or greater with separate GPU recommended), 8GB or more memory, a 250GB or larger HDD (1TB recommended), running Windows Vista 32bit or greater (Win 7 64bit/Win 8 recommended). A DVD drive with +/-RW read support and a network with external Web access will be required for installation. To ensure efficient operation it is recommended that 1000Base-T Ethernet networking be employed. High speed web access and an off-line storage facility with DVD+/-RW write support is also recommended. The ErgoSoft RIP software included with this printer includes support for Postscript II/III, PDF (X-3), EPS, AI TIFF, BMP, PNG & JPEG file formats. |
|||
| CONFIGURATION OPTIONS | |||
| SCF7100SZ | Installed with 1 Yr On-Site Wty and ErgoSoft Sublimation Professional Edition s/w | ||
| ACCESSORIES & OPTIONS | |||
| 1YWF7100 | Optional 1Yr On-Site Service Pack | ||
| 2YWF7100 | Optional 2Yr On-Site Service Pack (included with SCF7100AP3Y) | ||
| 10-CUBE-N | Optional 10L Waste Ink Recycling Bottle | ||
| INSTALLATION & SUPPORT | |||
| Delivery, installation and after-sales service is co-ordinated by Epson in conjunction with our Authorised Reseller network. This service is provided free of charge conditional on a number of factors that include physical location, access and the operational environment. Our service does not cover any work &/or costs associated with connection to the electrical supply, building alterations, or room refurbishments. Regional locations and installations which are not ground floor, have difficult access, and/or limited parking for delivery/ set-up/ support teams may attract additional charges. It should be noted that the packaging for this product is large and bulky; customers are requested to check all aspects related to delivery prior to ordering including doors & access routes. Should issues be encountered during delivery then additional charges may be applied. Important: Installation, service and warranty cover may be restricted or denied when equipment is used outside of specification &/or with non-Epson consumables. Please refer to the warranty section section of this web site for details and contact Epson Australia or one of our Authorised Resellers if you have questions or issues. |
|||
