Back catalogue – WorkForce ET-16500
Printer |
||
| PRINTER TYPE | ||
|---|---|---|
| WHAT'S IN THE BOX | - WorkForce ET-16500 EcoTank™ All-in-One Printer - Instruction manual - CD-ROM for product setup - Power cord - USB cable not included (Optional extra) - Initial ink bottles: 2 x 774 Black, 2 x 664 Cyan, 2 x 664 Magenta, 2 x 664 Yellow |
|
| PRINTING METHOD | On-demand Inkjet (piezoelectric) | |
| NOZZLE CONFIGURATION | 400x2 nozzles Black, 128x2 nozzles each colour (Cyan, Yellow, Magenta) | |
| MINIMUM INK DROPLET VOLUME | 2.8 Picolitres | |
| RESOLUTION | ||
| 4800 x 2400 optimised dpi with (with Variable Sized Droplet Technology) | ||
| PRINT SPEED | ||
| BLACK TEXT A4 (Normal) | 18 ISO ppm1 | |
| COLOUR TEXT A4 (Normal) | 10 ISO ppm1 | |
|
PAPER HANDLING
|
||
| PAPER FEED METHOD | Friction feed with paper feeder and automatic document feeder | |
| PAPER SIZES | A3+, A3, A4, A5, B5, A6, Legal, 13 x 18cm, 10 x 15cm, 9 x 13cm, 13 x 20cm, 20 x 25cm Envelopes: C6, No 10, DL | |
| PAPER HOLD CAPACITY | Paper tray input capacity: 2 x 250 sheet cassette, A4 Plain paper (80g/m2), 20 sheets-PGPP, 10 sheets-Envelope | |
| DOUBLE-SIDED PRINTING | Yes | |
Scanner |
||
|
SCANNING
|
||
| SCANNER TYPE | A3 Flatbed colour image scanner | |
| MAX. DOCUMENT SIZE | 297.18 x 431.8 mm / 11.7 x 17" (Up to A3) | |
| PIXEL DEPTH | Input 48bits (16bits/colour) / output 24bits (8bits/colour) | |
| SCANNING RESOLUTION | 1200 x 2400 dpi | |
Copy Function |
||
| COPY SPEED | ||
| COPY SPEED BLACK TEXT NORMAL (A4) | 16.0 ISO ipm1 | |
| COPY SPEED COLOUR TEXT MEMO (A4) | 8.8 ISO ipm1 | |
| COPY PAPER SIZE (FLATBED) | A3, B4, Legal, 8.5 x 13", Letter, A4, B5, A5, A6, 13x18cm, 16:9, 10x15cm, #10, DL, C4, C6 | |
| REDUCTION/ENLARGEMENT | Auto Fit Function | |
FAX |
||
| TRANSMISSION & RECEPTION | ||
| TYPE | Colour and mono support | |
| LINES | PSTN (general phone lines) | |
| TRANSMISSION SPEED | Up to 33.6kbs (approx. 3 secs per page) | |
| SPEED DIAL | Up to 200 Names & Numbers | |
| MEMORY | Up to 550 pages (ITU-T No.1 chart) | |
| FAX RESOLUTION (MONO) | Standard (8pels/mm x 3.85lines/mm), Fine (8pels/mm x 7.7lines/mm), Super Fine (8pels/mm x 15.4lines/mm), Ultra Fine (16pels/mm x 15.4lines/mm) | |
| FAX RESOLUTION (COLOUR) | Fine (200x200), Photo (200x200 with error diffusion) | |
| ERROR CORRECTION MODE | ITU Group3 fax with Error Correction Mode | |
| PC FAX* Windows only | Yes | |
| GROUP DIAL | Yes (up to 199 groups) | |
| BROADCAST FAX | Yes (mono only) | |
| AUTO REDIAL | Yes | |
| RING DETECTION | Yes - Duet | |
| AUTOMATIC DOCUMENT FEEDER FUNCTION | ||
| MAXIMUM DOCUMENT SIZE | A4 | |
| PAPER TYPES SUPPORTED | Plain paper 64~95g/m2 | |
| DUPLEX | Yes - for two sided scanning, copying and faxing | |
| CAPACITY | 35 pages (75g/m2) or 3.5mm (A3, Legal, Letter, A4, B5, A5) | |
General |
||
| OPERATING SYSTEMS | ||
| PRINTER DRIVERS* | Windows® XP/XP Professional x64 Edition/Vista/7/8/8.1/10, Windows® Server 2003/2003 x64 Edition/2003 R2/2003 R2 x64 Edition/2008/2008 R2/2012/2012 R2 *Under Windows® Server OS, only printing and scanning are supported. Mac OS X 10.6.8, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x |
|
| >* Drivers if available are downloadable from Tech Epson | ||
| ELECTRICAL SPECIFICATIONS | ||
| RATED VOLTAGE | AC 220 ~ 240V | |
| RATED FREQUENCY | 50 ~ 60Hz | |
| POWER CONSUMPTION | Approx. 20W Standalone copying (ISO/IEC 24712) Approx. 2.0W (Sleep Mode) |
|
| NOISE LEVEL | ||
| NOISE LEVEL* | LwAd B(A) :6.4 (Plain paper default) LpAm dB(A):48db (Plain paper default) |
|
| * Default mode is in accordance with ISO7779 | ||
| INTERFACES | ||
| CONNECTIVITY | High Speed USB — Compatible with the USB 2.0 Specification. | |
| MOBILE PRINTING | Epson Connect (Epson Email Print + Epson iPrint) Google Cloud Print Ready Scan to email |
|
| NETWORKING | 802.11b/g/n Wi-Fi Direct® 10-Base-T, 100 Base-TX Ethernet |
|
| LCD SCREEN | 4.3" TFT Colour LCD with keypad and gesture navigation | |
| CARD SLOTS | ||
| Built in | SD and USB | |
| With Adapter | MiniSD (With Adapter), MiniSDHC (With Adapter), MicroSD (With Adapter), MicroSDHC (With Adapter),SDXC,micro SDXC, MagicGate Memory Stick Duo (With Adapter), Memory Stick PRO Duo (With Adapter), Memory Stick PRO-HG Duo (With Adapter), Memory Stick Micro <M2> (With Adapter) | |
| PRINTER SOFTWARE | ||
| SOFTWARE TOOLS* | Epson Event Manager Epson Easy Photo Print Online Guide (administrator guide not bundled) PC FAX |
|
| * All software for MAC not on CD, downloadable from Epson Support | ||
| WARRANTY | ||
| 12 months return to base | Standard | |
| 36 months return to base warranty. For an additional 24 months (total of 36 months), register online at www.epson.co.nz/registrations within 12 months of purchase. | ||
| Epson Warranty | ||
| PRODUCT DIMENSIONS | 666mm(W) x 486mm(D) x 418mm(H) | |
| WEIGHT | 23.0kg | |
| INK BOTTLES & YIELDS | ||

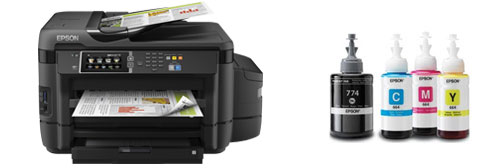

| INK BOTTLES | T664 (Cyan, Magenta, Yellow) T774 (Black) |
|
| INK BOTTLES BUNDLED WITH PRINTER YIELDS2 | 10,500 Pages Blk / 11,000 Pages Clr | |
| REPLACEMENT INK BOTTLES YIELDS2 | 6,000 Pages Blk / 6,500 Pages Clr | |
1. Black and colour print/copy speeds are measured in accordance with ISO/IEC 24734 and 29183. Actual print times will vary based on system configuration, software, and page complexity. 2. According to ISO/IEC24711 and 24712 test suite. Click here for details on ISO testing. (PDF)
|
||
