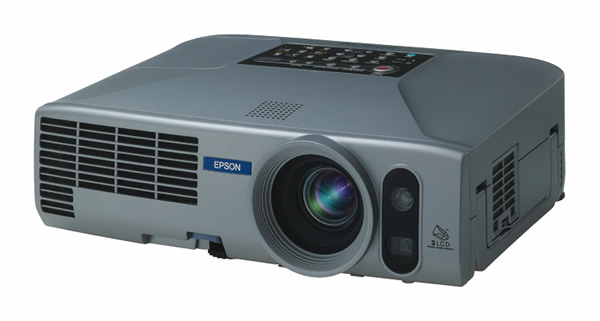

Back catalogue – Epson EMP-835

Designed to suit a range of corporate presentation environments, the Epson EMP-835 projector delivers superb brightness, quality versatility and value. The projector incorporates cutting-edge features unique to Epson, the leader in LCD projector technology.
PRODUCT TYPE Corporate Portable Multimedia Projectors
PRODUCT NAME
PRODUCT CODE
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.8 inches with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 786,432 pixels
(1024 x 768) x 3
  Native resolution XGA
  Aspect ratio 4:3
  Pixel arrangement Stripe
  Refresh Rate 72Hz
PROJECTION LENS Type Motorised: zoom / focus
  F-number 1.75 - 2.42
  Focus length 24 - 38.2mm
  Zoom ratio 1:1.6
  Lens Cover Attatched
LAMP Type 200W UHE
SCREEN SIZE (PROJECTED DISTANCE) 30 to 300 inch [1.42 to 14.73m] (Zoom: Tele),
30 to 300 inch [0.86 to 9.09m] (Zoom: Wide)
60" screen 1.8m - 2.9m
KEYSTONE CORRECTION RATIO 10:1
BRIGHTNESS
  High Brightness Mode 3000 Lumens
(Colour mode: Dynamic, Zoom: Wide)
  Low Brightness Mode 2200 Lumens
(Colour mode: Dynamic, Zoom: Wide)
CONTRAST 600:1
BRIGHTNESS UNIFORMITY 90% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
VIDEO QUALITY 3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (3-2 film detection only)
SOUND OUTPUT 5W monaural
FUNCTION Pointer, PIP, Preview, User Logo, A/V mute, Freeze
COLOUR MODES Dynamic, Presentation, Theatre, Living room, sRGB
EFFECTIVE SCANNING FREQUENCY RANGE
PIXEL CLOCK 13.5MHz to 230MHz
up to UXGA 85Hz
HORIZONTAL 15KHz to 107KHz
VERTICAL 50Hz to 120Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal etc.
height ADJUSTER Front-centre
TILT ANGLE -4 to 12 degrees
KEYSTONE CORRECTION Vertical: -45 to +45 degrees (Zoom: Tele)
Horizontal: -25 to +25 degrees (Zoom: Tele)
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1024 x 768 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47Kohm
INPUT TERMINAL Video Mini D-sub 15pin x 2 Blue moulding
  Audio Stereo mini jack x 2
OUTPUT SIGNAL Video Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2-0.4 Vpp)
OUTPUT TERMINAL   Video Mini D-sub 15pin x1 Black moulding
  Audio Stereo mini-jack
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 line PAL: 560 line (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.7V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
  Audio signal 500mVrms / 47Kohm
INPUT TERMINAL Video Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue moulding
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin Blue moulding
(in common with Analog RGB connector)
  Audio RCA (White/Red) x2
CONTROL I/O
USB I/O I/O terminal USB connector series A x1
SERIAL I/O I/O terminal Mini D-sub 9pin x1
  I/O signal RS-232C
PCMCIA CARD Type II x 1
NETWORK INTERFACE RJ45 x1
Wireless / Wired LAN Card
INPUT TERMINAL Remote Control Stereo mini jack x1
OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F) (20% - 80% Humidity)
COOL-DOWN PERIOD Approx. 20 seconds
START-UP PERIOD Approx. 10 seconds
POWER SUPPLY VOLTAGE 100 - 120V / 200 - 240V ±10%, 50/60Hz AC
DIMENSION
EXCLUDE FEET 280(D) x 365(W) x 114(H) mm
MAXIMUM DIMENSION 283(D) x 367(W) x 126(H) mm
WEIGHT Approx. 10.4lb / 4.7Kg
FAN NOISE
LOW BRIGHTNESS MODE 28dB
HIGH BRIGHTNESS MODE 34dB
ACCESSORIES
POWER CORD 3m
COMPUTER CABLE 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male)
USB CABLE 1.8m, USB A / B
REMOTE CONTROL Included
BATTERY Alkaline AA x 2
WIRELESS LAN CARD Attatched (802.11g\b)
BUNDLED SOFTWARE Epson Projector Software (CD-ROM)
EasyMP Software (CD-ROM)
PASSWORD PROTECT STICKER Included
LENS COVER Attached
OWNER'S MANUAL Included
WARRANTY
STANDARD WARRANTY 2 years*
*excluding lamp
* For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8
PRODUCT CODE V11H145053
EASY MP
FUNCTION Projector control and projector management via network
  E-mail notification
  SNMP
  Card Player (with USB storage player) / Network Screen / Easy Web)
SOFTWARE EMP Monitor Ver3.03 (for windows) / EMP Network Manager (via Web Site) / EMP NS Connection Ver1.30 (for windows) / EMP NS Connection Ver1.01 (for Mac) / EMP SlideMaker2 Ver1.11
SECURITY (WIRELESS LAN) WPA, CCX (Cisco)

Product Options

Product Code Item Code Description
ELP-KS52 V12H001K52 Soft Carry Case
ELP-KS53 V12H001K53 Wheeled Hard Case
ELP-LP22 V13H010L31 Lamp
ELP-ST09 V12H007T09 Presentation Remote Control Kit
ELP-KC11 V12H005C11 15Pin to BNC cable
ELP-KC19 V12H005C19 Component Video cable
