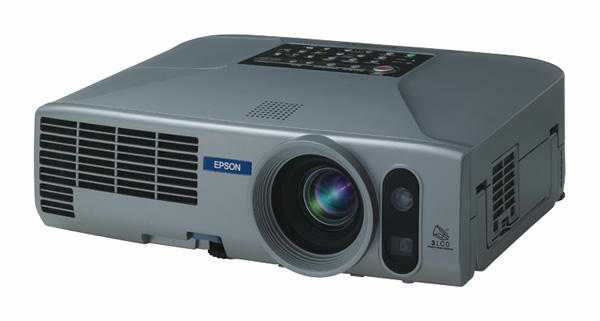

Back catalogue – Epson EMP-830
Designed to suit a range of corporate presentation environments, the Epson EMP-830 projector delivers superb brightness, quality versatility and value. The projector incorporates cutting-edge features unique to Epson, the leader in LCD projector technology.
| PRODUCT TYPE | Corporate Portable Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.8 inches with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 786,432 pixels (1024 x 768) x 3 |
||
| Native resolution | XGA | ||
| Aspect ratio | 4:3 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 72Hz | ||
| PROJECTION LENS | Type | Motorised | |
| F-number | 1.75 - 2.42 | ||
| Focus length | 24 - 38.2mm | ||
| Zoom ratio | 1:1.6 | ||
| Lens Cover | Attached | ||
| LAMP | Type | 200 W UHE | |
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [1.42 to 14.73m]
(Zoom: Tele), 30 to 300 inch [0.86 to 9.09m] (Zoom: Wide) 60" screen 1.8m - 2.9m |
||
| KEYSTONE CORRECTION RATIO | 10:1 | ||
| BRIGHTNESS | |||
| High Brightness Mode | 3000 Lumens (Colour mode: Dynamic, Zoom: Wide) |
||
| Low Brightness Mode | 2200 Lumens (Colour mode: Dynamic, Zoom: Wide) |
||
| CONTRAST | 600:1 | ||
| BRIGHTNESS UNIFORMITY | 90% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| VIDEO QUALITY | 3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (3-2 film detection only) | ||
| SOUND OUTPUT | 5W monaural | ||
| FUNCTION | Pointer, PIP, Preview, User Logo, A/V mute, Freeze | ||
| COLOUR MODES | Dynamic, Presentation, Theatre, Living room, sRGB | ||
| EFFECTIVE SCANNING FREQUENCY RANGE | |||
| PIXEL CLOCK | 13.5MHz to 230MHz up to UXGA 85Hz |
||
| HORIZONTAL | 15KHz to 107KHz | ||
| VERTICAL | 50Hz to 120Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal etc. | ||
| height ADJUSTER | Front-centre | ||
| TILT ANGLE | -4 to 12 degrees | ||
| KEYSTONE CORRECTION | Vertical: -45 to +45 degrees (Zoom: Tele) Horizontal: -25 to +25 degrees (Zoom: Tele) |
||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | Mini D-sub 15pin x 2 Blue moulding | |
| Audio | |||
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative, TTL) / Sync. on green (negative 0.2-0.4 Vpp) |
||
| OUTPUT TERMINAL | Video | Mini D-sub 15pin x 1 Black moulding | |
| Audio | Stereo mini-jack | ||
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 line (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative,
75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75ohm / Cr Cb level +/-0.35V 75ohm / sync.negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
| Audio signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue moulding (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin Blue moulding (in common with Analog RGB connector) |
|
| Audio | RCA (White/Red) x 2 | ||
| CONTROL I/O | |||
| USB I/O | I/O terminal | USB connector series B x1 (for mouse, K/B, control) | |
| SERIAL I/O | I/O terminal | Mini D-sub 9pin x1 | |
| I/O signal | RS-232C | ||
| NETWORK INTERFACE | RJ45 x1 | ||
| INPUT TERMINAL | Remote Control | Stereo mini jack x1 | |
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) (20% - 80% Humidity) | ||
| COOL-DOWN PERIOD | Approx. 20 seconds | ||
| START-UP PERIOD | Approx. 10 seconds | ||
| POWER SUPPLY VOLTAGE | 100 - 120V / 200 - 240V ±10%, 50/60Hz AC | ||
| DIMENSION | |||
| EXCLUDE FEET | 280(D) x 365(W) x 114(H) mm | ||
| MAXIMUM DIMENSION | 283(D) x 367(W) x 126(H) mm | ||
| WEIGHT | Approx. 10.4lb / 4.7Kg | ||
| FAN NOISE | |||
| LOW BRIGHTNESS MODE | 28dB | ||
| HIGH BRIGHTNESS MODE | 34dB | ||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| COMPUTER CABLE | 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| USB CABLE | 1.8m, USB A / B | ||
| REMOTE CONTROL | Included | ||
| BATTERY | Alkaline AA x 2 | ||
| PASSWORD PROTECT SEAL | Included | ||
| LENS COVER | Attached | ||
| OWNER'S MANUAL | Included | ||
| WARRANTY | |||
| STANDARD WARRANTY | 2 years* *excluding lamp |
||
| * For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8 | |||
| PRODUCT CODE | V11H146053 | ||
| EASY MP | |||
| FUNCTION | Projector control and projector management via network | ||
| E-mail notification | |||
| SNMP | |||
| SOFTWARE | EMP Monitor Ver3.03 (for Windows) | ||
| EMP Network Manager Ver1.02 (for Windows / MAC OSX) | |||
Product Options
| Product Code | Item Code | Description |
|---|---|---|
| ELP-KS52 | V12H001K52 | Soft Carry Case |
| ELP-KS53 | V12H001K53 | Wheeled Hard Case |
| ELP-LP22 | V13H010L31 | Lamp |
| ELP-ST09 | V12H007T09 | Presentation Remote Control Kit |
| ELP-KC11 | V12H005C11 | 15pin to BNC cable |
| ELP-KC19 | V12H005C19 | Component Video cable |
