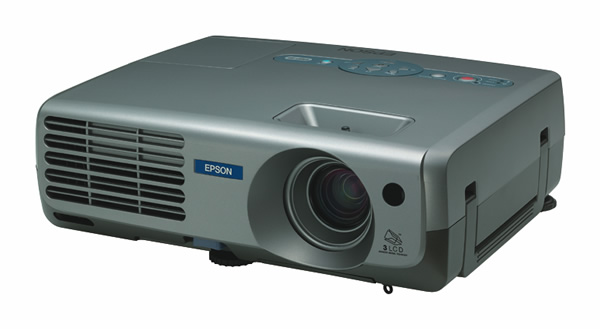

Back catalogue – Epson EMP-81
Whether it's professional quality required in business or bulletproof reliability in education - the EPSON EMP-81 delivers unmatched features and functionality.
| PRODUCT TYPE | Entry Level Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.7 inches with MLA(X3) | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 786,432 pixels (1024 x 768) | ||
| Native resolution | XGA | ||
| Aspect ratio | 4:3 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 72Hz | ||
| PROJECTION LENS | Type | Manual: zoom / focus | |
| F-number | 1.7 - 1.87 | ||
| Focus length | 21.3 - 25.6mm | ||
| Zoom ratio | 1.0 - 1.2 | ||
| LAMP | Type | 200W UHE | |
| OPTICAL SYSTEM | Dichroic Mirror Separation & Prism combine method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [1.1 to 11m] (Zoom: Tele), 30 to 300 inch [0.8 to 8.2m] (Zoom: Wide) |
||
| KEYSTONE CORRECTION RATIO | 10:1 | ||
| BRIGHTNESS | |||
| High Brightness Mode | 2000 Lumens (Colour mode: Dynamic, Zoom: Wide) |
||
| Low Brightness Mode | 1500 Lumens (Colour mode: Dynamic, Zoom: Wide) |
||
| CONTRAST | 400:1 | ||
| BRIGHTNESS UNIFORMITY | 85% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| VIDEO QUALITY | 3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (3-2 film detection only) | ||
| SOUND OUTPUT | 5W monaural | ||
| FUNCTION | Pointer, PIP, Preview, User Logo, A/V mute, Freeze | ||
| COLOUR MODES | Effect, PIP, Preview, User Logo, A/V mute, Freeze | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) | |||
| PIXEL CLOCK | 13.5MHz to 230MHz up to UXGA 85Hz | ||
| HORIZONTAL | 15KHz to 107KHz | ||
| VERTICAL | 50Hz to 120Khz | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (DIGITAL) | |||
| PIXEL CLOCK | 25MHz to 135MHz | ||
| HORIZONTAL | 15KHz to 80KHz | ||
| VERTICAL | 50Hz to 85Khz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal etc. | ||
| FOOT ADJUSTER | Front-center, Rear | ||
| TILT ANGLE | -4 to 12 degrees (Front only:0 to12degrees) | ||
| KEYSTONE CORRECTION | Vertical: -15 to +15 degrees (Zoom: Tele) Horizontal: -15 to +15 degrees (Zoom: Tele) |
||
| AUTO KEYSTONE CORRECTION | Implemented (Vertical only) | ||
| WALL SHOT | Automatic colour and birghtness adjustment for different coloured walls. | ||
| PASSWORD PROTECTED FUNCTION (security function) | Implemented | ||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.75V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | Mini D-sub 15pin x 2 Blue moulding | |
| Audio | Stereo mini jack x 2 | ||
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp) |
||
| OUTPUT TERMINAL | Video | Mini D-sub 15pin x 1 (Black moulding) | |
| Audio | Stereo mini-jack | ||
| DIGITAL RGB INPUT | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 dots | |
| INPUT SIGNAL | Video Signal | Digital | |
| Audio Signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | DVI TypeD x 1 | |
| Audio | Stereo mini jack (double use with D-sub 15-pin) | ||
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 line (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
| Audio signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue molding (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin Blue molding (in common with Analog RGB connector) |
|
| Audio | Stereo Mini-jack x 2 | ||
| CONTROL I/O | |||
| USB I/O | I/O terminal | USB connector series B x1 (for mouse, K/B, control) | |
| SERIAL I/O | I/O terminal | Mini D-sub 9pin x1 | |
| I/O signal | RS-232C | ||
| NETWORK INTERFACE | RJ45 x 1 | ||
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) (20% to 80% Humidity) | ||
| POWER SUPPLY VOLTAGE | 100 - 240VAC-+10%50/60Hz | ||
| Lamp ON | 350W | ||
| Standby (Network ON) | 47W | ||
| Standby (Network OFF) | 1.8W | ||
| COOL-DOWN PERIOD | Approx. 20 seconds | ||
| START-UP PERIOD | Approx. 10 seconds | ||
| DIMENSION | |||
| EXCLUDE FEET | 272(D) x 350(W) x 109(H) mm | ||
| MAXIMUM DIMENSION | 272(D) x 351(W) x 123(H) mm | ||
| WEIGHT | Approx. 4.0kg | ||
| FAN NOISE | |||
| LOW BRIGHTNESS MODE | 36dB | ||
| HIGH BRIGHTNESS MODE | 30dB | ||
| WARRANTY | |||
| STANDARD WARRANTY | 2 years* *excluding lamp |
||
| * For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8 | |||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| COMPUTER CABLE | 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| USB CABLE | 1.8m, USB A - USB B | ||
| AUDIO ADAPTOR | 3.5MM stereo mini-plug (male) - 2RCA (female) | ||
| REMOTE CONTROL | Included | ||
| SOFT CARRYING CASE | Included | ||
| PASSWORD PROTECT STICKER | Included | ||
| AIR FILTER | Included | ||
| Epson PROJECTOR SOFTWARE | CD-ROM | ||
| OWNER'S MANUAL | Included | ||
| PRODUCT OPTIONS | |||
| Product Code | Item Code | Description | |
| ELP-LP30 | V13H010L30 | Lamp | |
| ELP-ST09 | V12H007T09 | Presentation Remote Control Kit | |
| ELP-KC11 | V12H005C11 | 15Pin to BNC cable | |
| ELP-KC27 | V12H005C27 | HD15 to 3RCA cable | |
| ELP-KC19 | V12H005C19 | Component Video cable | |
| 3YWEMP81 | 3YWEMP81 | 3rd Year Warranty | |
| NETWORKING FUNCTION | |||
| FUNCTION | Projector control and projector management via network E-mail notification |
||
| SNMP | |||
| SOFTWARE | EMP Monitor (for Windows) | ||
| EMP NetworkManager (for Windows) | |||
| ACCESSORIES | Epson Projector Software | ||
