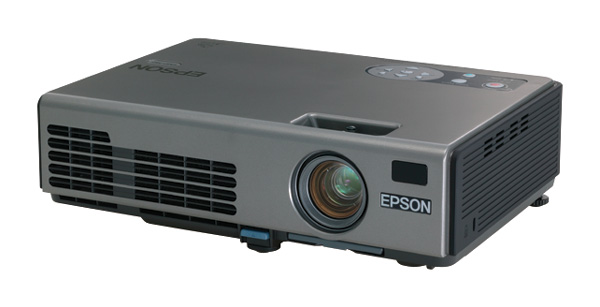

Back catalogue – Epson EMP-740
Portable and powerful - The EMP-740 ushers in a new era of incredibly lightweight, high performance data projectors with the flexibility to deliver outstanding results in any presentation environment.
| PRODUCT TYPE | Corporate Portable Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.7 inches with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 786,432 pixels (1024 x 768) x 3 |
||
| Native resolution | XGA | ||
| Aspect ratio | 4:3 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 72Hz | ||
| PROJECTION LENS | Type | Manual: zoom / focus | |
| F-number | 1.58 - 1.76 | ||
| Focus length | 23.7 - 28.5mm | ||
| Zoom ratio | 1:1.2 | ||
| Offset | 6:1 | ||
| LAMP | Type | 170 W UHE | |
| Optical System | Dichroic Mirror Separation & Prism Combine Method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [1.2 to 12.1m]
(Zoom: Tele), 30 to 300 inch [1.0 to 10.1m] (Zoom: Wide) |
||
| BRIGHTNESS | |||
| High Brightness Mode | 2500 Lumens (Colour mode: Dynamic, Zoom: Wide) 1500 Lumens (Colour mode: sRGB,Theatre, Zoom: Wide) |
||
| Low Brightness Mode | 2000 Lumens (Colour mode: Dynamic, Zoom: Wide) 1200 Lumens (Colour mode: sRGB,Theatre, Zoom: Wide) |
||
| CONTRAST | 400:1 | ||
| BRIGHTNESS UNIFORMITY | 90% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| SOUND OUTPUT (Internal speaker) | 1W monaural | ||
| FUNCTION | Pointer, User Logo, A/V mute, Freeze | ||
| COLOUR MODES | Dynamic, Presentation, Living room, Theatre, Blackboard, sRGB | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (Analog) | |||
| PIXEL CLOCK | 13.5MHz to 162MHz | ||
| HORIZONTAL | 15KHz to 92KHz | ||
| VERTICAL | 50Hz to 85Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal, etc | ||
| height ADJUSTER | Front-centre, Rear | ||
| TILT ANGLE | 0 to 12 degrees | ||
| KEYSTONE CORRECTION | Vertical: -15 to +15 degrees (Zoom: Tele) | ||
| AUTO KEYSTONE CORRECTION | Vertical: -15 to +15 degrees (Zoom: Tele) | ||
| AUTO DETECTION OF RGB / YCbCr | Implemented | ||
| OPERATION PANEL PROTECTED FUNCTION | Implemented | ||
| PASSWORD PROTECTED FUNCTION (SECURITY FUNCTION) |
Implemented (Protection of User logo, Time lock) |
||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| VIDEO INPUT TERMINAL | Mini D-sub 15pin x 1 Blue-moulding | ||
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 line (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | ||
| Audio signal | 500mVrms / 47Kohm | ||
| VIDEO INPUT TERMINAL | Composite Video: RCA (Yellow) x 1 | ||
| S-Video: Mini DIN | |||
| Component Video: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) |
|||
| Video-RGB: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) |
|||
| AUDIO I/O | |||
| AUDIO SIGNAL | 500mVrms / 47Kohm | ||
| AUDIO TERMINAL | Stereo mini jack x 1 (Audio In is selectable on OSD menu) |
||
| CONTROL I/O | |||
| USB I/O | I/O terminal | USB connector series B x1 (for mouse, K/B, control) | |
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) | ||
| COOL-DOWN PERIOD | Approx. 20 seconds | ||
| START-UP PERIOD | Approx. 7 seconds | ||
| POWER SUPPLY VOLTAGE | 100-240V ±10% 50/60Hz AC | ||
| POWER CONSUMPTION | 100-240VAC 2.7-1.1A 50/60Hz | ||
| DIMENSIONS | |||
| EXCLUDE FEET | 193(D) x 276(W) x 70(H) mm | ||
| MAXIMUM DIMENSION | 193(D) x 276(W) x 81(H) mm | ||
| WEIGHT | Approx. 3.8lb / 1.7Kg | ||
| FAN NOISE | 36dB (low brightness mode) | ||
| ACCESSORIES | |||
| POWER CORD | 1.8m | ||
| COMPUTER CABLE | 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| USB CABLE | 1.8m, USB A / B | ||
| REMOTE CONTROL | Included | ||
| BATTERY | Alkaline AA x 2 | ||
| AUDIO ADAPTER | 3.5mm stereo miniplug (male) <-> RCA jack x2 (female) 15cm | ||
| SOFT CARRYING CASE | Included | ||
| LENS COVER | Included | ||
| PASSWORD PROTECT STICKER | Included | ||
| OWNER'S MANUAL | Included | ||
| WARRANTY | |||
| STANDARD WARRANTY | 2 years* *excluding lamp |
||
| * For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8 | |||
| PRODUCT CODE | V11H160053 | ||
Product Options
| Product Code | Item Code | Description |
|---|---|---|
| 7010180 | 7010180 | Aluminium Briefcase |
| ELP-LP32 | V13H010L32 | Lamp |
| ELP-ST09 | V12H007T09 | Presentation Remote Control Kit |
| ELP-KC11 | V12H005C11 | 15pin to BNC cable |
| ELP-KC19 | V12H005C19 | Component Video cable |
| 3YWEMP740 | 3YWEMP740 | 3rd Year Warranty |
