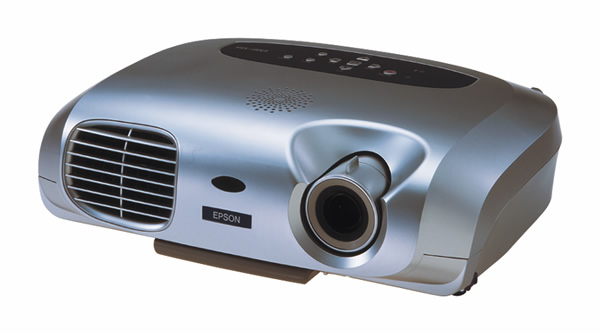

Back catalogue – Epson EMP-S1H

With the Epson EMP-S1H, powerful and highly functional projectors are now within reach of everyone. From small offices to classrooms as well as being ideal for the home, the EMP-S1H delivers a feature packed projector experience at a price never seen before.
PRODUCT TYPE Home Theatre Projectors
PRODUCT NAME
PRODUCT CODE
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.5 inches wide with MLA (x3)
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 480000 dots (800 x 600) x 3
  Native resolution SVGA
  Aspect ratio 4:3
  Pixel arrangement Stripe
PROJECTION LENS Type Manual: Focus
  F-number 1.4
  Focus length 16.6mm
  Zoom ratio Digital Zoom (1.0-1.2)
LAMP Type 130 W UHE
OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE) 30 to 300inch [0.9 to 11.3m]
KEYSTONE CORRECTION RATIO 9:6:1
BRIGHTNESS 1400 Lumens
CONTRAST 500:1
BRIGHTNESS UNIFORMITY 85% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
SOUND OUTPUT 1W Monaural
EFFECTIVE SCANNING FREQUENCY RANGE
PIXEL CLOCK 13.5MHz to 162MHz
HORIZONTAL 15 to 92 KHz
VERTICAL 50 to 85 Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Keystone (Vertical) / Brightness / Contrast / Tint /
Saturation / Sound / Input signal etc.
TILT ANGLE 0 to 10 degrees
KEYSTONE CORRECTION Vertical: -15 to +15 degrees
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 800 x 600 dots
  Resize 1024 x 768 / 640 x 480 dots
INPUT SIGNAL Signal type Separate signal
INPUT TERMINAL Video Mini D-sub 15 pin x 1 Blue-molding
  Audio RCA x 2 (White / Red)
OUTPUT TERMINAL Video Mini D-sub 15 pin x 1 Black molding
VIDEO I/O
DISPLAY PERFORMANCE NTSC : 550 line PAL : 550 line
  (Depend on observation of the multi burst pattern)
INPUT SIGNAL Video Standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
INPUT TERMINAL Video Composite Video : RCA, S-Video: Mini DIN, Component Video: Mini D-sub 15pin
  Audio RCA x 2 (White / Red)
(in common with Analogue RGB Audio terminal)
CONTROL I/O
I/O TERMINAL RS-232C
OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F) (20% to 80% Humidity)
POWER SUPPLY VOLTAGE 100-240 VAC ±10% , 50/60Hz
POWER CONSUMPTION 100-240 VAC    1.3A 50/60Hz
DIMENSIONS
EXCLUDING PROTECTION LENS & FEET 370mm(W) x 265mm(D) x 106mm(H)
MAXIMUM DIMENSION 370mm(W) x 265mm(D) x 114mm(H)
WEIGHT Approx. 7.0lbs / 3.2kg
FAN NOISE 33dB
ACCESSORIES
POWER CORD 1.8m
COMPUTER CABLE Mini D-sub 15pin (Male-Male)
REMOTE CONTROL Included
PRESENTATION REMOTE CONTROL Included
SOFT CARRY BAG Included
LENS COVER Included
AIR FILTER Included
USER MANUAL Multilingual CD
WARRANTY* 2 years
* excluding lamp
* For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8

Product Options

Product Code Item Code Description
ELP-LP29 V13H010L29 Lamp
ELP-LP29 V13H010L29 Lamp
7012083 7012083 Ceiling Mount with extendable pole (up to 400mm expandable to 520mm)
7012084 7012084 Ceiling Mount without pole (up to 100mm)
ELP-KC27 V12H005C27 0.35mtr HD15 to 3RCA cable
3YWS1H 3YWS1H 3rd Year Warranty


Product name Globalcode Price (inc GST)
excludes delivery		 Order quantity
ACCESSORIES & OPTIONS
ELPSC21B 80" Portable Tripod Screen V12H002S2Y $149.99
