Back catalogue – Epson EMP-TW10H

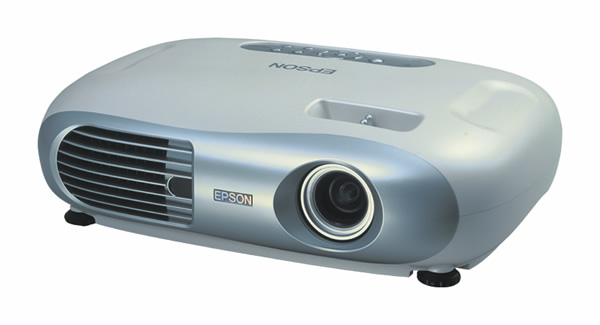

From the world's largest manufacturer of LCD projector technology comes the high performance Epson EMP-TW10H home cinema projector. The widescreen 16:9 aspect ratio adds even more to the picture, letting you sit back, enjoy and really immerse yourself in the home cinema experience.
| PRODUCT TYPE | Home Theatre Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.55 inches wide | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 854 x 480 pixels | ||
| Native resolution | W-VGA | ||
| Aspect ratio | 16:9 | ||
| Pixel arrangement | Stripe | ||
| PROJECTION LENS | Type | Manual: Zoom and Focus | |
| F-number | 1.4 | ||
| Focus length | 16.6mm | ||
| Zoom ratio | Digital Zoom (1.0-1.2) | ||
| LAMP | Type | 130 W UHE | |
| OPTICAL SYSTEM | Dichroic Mirror Separation & Prism combine method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | |||
| 30-300 inches (0.73-7.58m) (Wide) | |||
| 30-300 inches (1.14-11.65m) (Tele) | |||
| BRIGHTNESS | Up to 1200 lms | ||
| CONTRAST | 800:1 | ||
| SOUND OUTPUT | 1w Monaural | ||
| INPUT/OUTPUTS | Full colour (16.77 million colours) | ||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Resize | 1024 x 768 / 800 x 600 / 640 x 480 | |
| INPUT TERMINAL | Video | Mini D-sub 15 pin x 1 Blue-molding | |
| Audio | RCA x 2 (White / Red) | ||
| VIDEO I/O | |||
| COMPOSITE / S | Input Signal | Video Standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| Input Terminal | Video | Composite Video: RCA (Yellow) x 1 S-Video: Mini DIN |
|
| Audio | RCA x 2 (in common with Analogue RGB) |
||
| COMPONENT I/O | Input Signal | Video Standard | 525i / 625i / 525P / 625P YCbCr 750P / 1125i YPbPr |
| Input Terminal | Video | RCA x 3 (Red / Green / Blue) | |
| Audio | RCA x 2 (in common with Analogue RGB) |
||
| CONTROL I/O | |||
| SERIAL I/O | I/O Terminal | Mini D-Sub 9 pin x 1 (RS-232c) | |
| Child lock | Built-in | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Keystone (Vertical) / Brightness / Contrast /
Tint / Saturation / Sound / Input signal etc. |
||
| TILT ANGLE | 0 to 10 degrees | ||
| KEYSTONE CORRECTION | Vertical: -15 to +15 degrees | ||
| CINEMA FILTER | Controlled automatically with color mode (ON: Theatre / Theatre Black, OFF: Living Room / Dynamic) | ||
| OPERATING TEMPERATURE | |||
| 5°C to 35°C (41°F to 95°F) (20% to 80% Humidity) | |||
| Cool-down period | Approx. 20 seconds | ||
| Start-up period | Approx. 10 seconds | ||
| POWER SUPPLY VOLTAGE | 100-240 VAC ±10% , 50/60Hz | ||
| DIMENSIONS | |||
| EXCLUDING FEET | 402mm(W) x 294mm(D) x 114mm(H) | ||
| MAXIMUM DIMENSION | 402mm(W) x 294mm(D) x 122mm(H) | ||
| WEIGHT | Approx. 7.9lbs / 3.6kg | ||
| FAN NOISE | |||
| Normal mode | 38dB (Dynamic / Living Room / Theatre) | ||
| Whisper Quiet Mode | 29dB (Theatre Black) | ||
| ACCESSORIES | |||
| POWER CORD | 1.8m | ||
| REMOTE CONTROL (& BATTERY) | Card type (Lithium CR2025) | ||
| RUBBER STAND | Included | ||
| USER MANUALS | Included | ||
| WARRANTY* | 2 years | ||
| * excluding lamp | |||
| * For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8 | |||
Product Options
| Product Code | Item Code | Description |
|---|---|---|
| ELP-KS51 | V12H001K51 | Carry Case |
| ELP-LP29 | V13H010L29 | Lamp |
| 7012083 | 7012083 | Ceiling Mount with extendable pole (up to 400mm expandable to 520mm) |
| 7012084 | 7012084 | Ceiling Mount without pole (up to 100mm) |
| 3YWTW10H | 3YWTW10H | 3rd Year Warranty |
