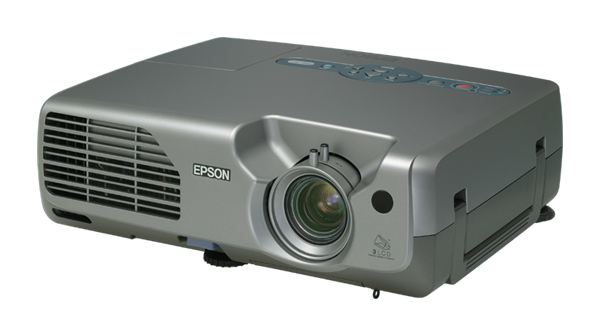

Back catalogue – Epson EMP-821
The Epson EMP-821 2600 ANSI lumens desktop video projector is perfect for training, seminars or conference rooms. Featuring high brightness, low fan noise and Epson’s advanced imaging technologies, it offers a range of great features at a sensible price.
| PRODUCT TYPE | Corporate Desktop Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.8 inches with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 786,432 pixels (1024 x 768) x 3 |
||
| Native resolution | XGA | ||
| Aspect ratio | 4:3 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 72Hz | ||
| PROJECTION LENS | Type | Manual: zoom / focus | |
| F-number | 1.75 - 2.42 | ||
| Focus length | 24 - 38.2mm | ||
| Zoom ratio | 1:1.6 | ||
| Lens Cover | Attached | ||
| LAMP | Type | 200 W UHE | |
| Optical System | Dichroic Mirror Separation & Prism Combine Method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [1.42 to 14.73m] (Zoom: Tele), 30 to 300 inch [0.86 to 9.09m] (Zoom: Wide) 60" screen 1.8m - 2.9m |
||
| KEYSTONE CORRECTION RATIO | 10:1 | ||
| BRIGHTNESS | |||
| High Brightness Mode | 2600 Lumens (Colour mode: Dynamic, Zoom: Wide) |
||
| Low Brightness Mode | 1900 Lumens (Colour mode: Dynamic, Zoom: Wide) |
||
| CONTRAST | 500:1 (Colour mode : Dynamic, High Brightness mode) |
||
| BRIGHTNESS UNIFORMITY | 90% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| SOUND OUTPUT | 5W monaural | ||
| EFFECTIVE SCANNING FREQUENCY RANGE ( ANALOGUE) | |||
| PIXEL CLOCK | 13.5MHz to 230MHz up to UXGA 85Hz | ||
| HORIZONTAL | 15KHz to 107KHz | ||
| VERTICAL | 50Hz to 120Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal etc. | ||
| FOOT ADJUSTER | Front centre,Rear | ||
| TILT ANGLE | -4 to12 degrees (Front only: 0 to 12 degrees) | ||
| KEYSTONE CORRECTION | Vertical : -30 to +30 degrees ( Zoom: Tele) | ||
| AUTO KEYSTONE CORRECTION | Implemented (Vertical) Vertical : -30 to +30 degrees ( Zoom: Tele) |
||
| AUTO SOURCE DETECTION | Implemented | ||
| PASSWORD PROTECTION FUNCTION (Security function) | Implemented (Protection of User logo, Time lock, operation panel) |
||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | Mini D-sub 15pin x 2 Blue-molding | |
| Audio | Stereo mini jack x 2 | ||
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative, TTL) / Sync. on green (negative 0.2-0.4 Vpp) |
||
| OUTPUT TERMINAL | Video | Mini D-sub 15pin x 1 Black moulding | |
| Audio | Stereo mini-jack | ||
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 line (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75ohm / Cr Cb level +/-0.35V 75ohm / sync.negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
| Audio signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue moulding (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin Blue moulding (in common with Analog RGB connector) |
|
| Audio | Stereo mini-jack x 2 | ||
| CONTROL I/O | |||
| USB I/O | I/O terminal | USB connector series B x1 (for mouse, K/B, control) | |
| SERIAL I/O | I/O terminal | Mini D-sub 9pin x1 | |
| I/O signal | RS-232C | ||
| OPERATING TEMPERATURE | 50C to 350C (410F to 950F) (20% to 80% Humidity) | ||
| COOL-DOWN PERIOD | Approx. 20 seconds | ||
| START-UP PERIOD | approx: 7 seconds warm-up period: 30 seconds |
||
| POWER SUPPLY VOLTAGE | 100 - 240V 110%, 50/60Hz AC | ||
| POWER CONSUMPTION | |||
| 100 - 240VAC 3.2-1.4A, 50/60Hz AC | |||
| Lamp ON | 280W | ||
| Standby | 5.0W | ||
| DIMENSION | |||
| EXCLUDE FEET | 272D) x 350(W) x 109(H) mm | ||
| MAXIMUM DIMENSION | 272(D) x 351(W) x 123(H) mm | ||
| WEIGHT | Approx. 4.0Kg / 8.9lb | ||
| FAN NOISE | |||
| LOW BRIGHTNESS MODE | 30dB | ||
| HIGH BRIGHTNESS MODE | 36dB | ||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| COMPUTER CABLE | 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| USB CABLE | 1.8m, USB A / B | ||
| REMOTE CONTROL | Included | ||
| AUDIO ADAPTER | Included | ||
| BATTERY | Alkaline AA x 2 | ||
| PASSWORD PROTECT SEAL | Included | ||
| LENS COVER | Attached | ||
| OWNER'S MANUAL | Included | ||
| WARRANTY | |||
| STANDARD WARRANTY | 2 years* *excluding lamp |
||
| * For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8 | |||
Product Options
| Product Code | Item Code | Description |
| EMP-821 | V11H167053 | |
| ELP-KS27 | V12H001K27 | Soft Carry Case |
| ELP-LP30 | V13H010L30 | Lamp |
