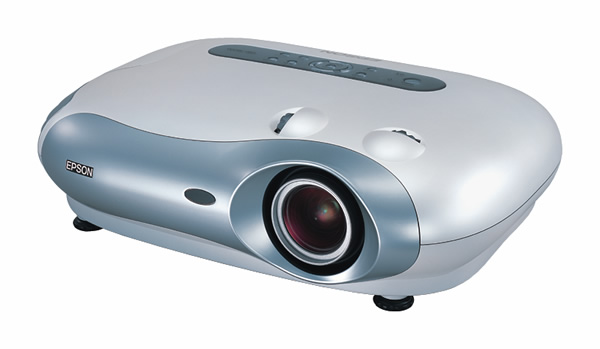

Back catalogue – Epson EMP-TW200H
The widescreen home cinema solution is finally here - Epson's EMP-TW200H projector. It's the projector with stunning picture quality and colour reproduction, delivering an outstanding cinema experience in the comfort of your own home.
| PRODUCT TYPE | Home Theatre Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | D4 Liquid Crystal Display | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.7 inches wide | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 1280 x 720 pixels | ||
| Native resolution | 720P | ||
| Aspect ratio | 16:9 | ||
| Pixel arrangement | Stripe | ||
| PROJECTION LENS | Type | Powered: zoom / focus | |
| F-number | 2.1-2.8 | ||
| Focus length | 21.4-31.7mm | ||
| Zoom ratio | 1.0:1.5 | ||
| LAMP | Type | 200 W UHE | |
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch (0.87 to 9.11m)
(Wide) 30 to 300 inch (1.33 to 13.65m) (Tele) |
||
| LENS SHIFT RANGE | Vertical: 100% max. (upward),
50% max.(downward) Horizontal: 50% max. (Left and Right) |
||
| BRIGHTNESS | |||
| High Brightness Mode | 1500 lm (Colour mode: Dynamic) | ||
| Low Brightness Mode | 500 lm (Theatre, sRGB) | ||
| CONTRAST | 1000:1 | ||
| BRIGHTNESS UNIFORMITY | 90% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| EFFECTIVE SCANNING FREQUENCY RANGE | |||
| PIXEL CLOCK | 13.5MHz to 110MHz | ||
| HORIZONTAL | (15 to 92) KHz | ||
| VERTICAL | (50 to 85) Hz | ||
| ADJUSTMENT FUNCTION | |||
| TILT ANGLE | 0 to 3.6 degrees | ||
| KEYSTONE CORRECTION | Vertical: -15 to +15 degrees | ||
| CINEMA FILTER | Controlled automatically with colour mode (ON: Theatre / Natural / s-RGB, OFF: Living Room / Dynamic) |
||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 750P | |
| Resize | 1280 x 1024 / 1024 x 768 / 800 x 600 / 640 x 480 / 525i / 625i / 525P / 625P / 1125i | ||
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7 p-p, 75 ohm / Mac 0.714Vp-p, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| INPUT TERMINAL | Video | Mini D-sub 15 pin x 1 Blue molding | |
| VIDEO I/O | |||
| COMPONENT INPUT | |||
| INPUT SIGNAL | Video standard | 525i / 625i / 525P / 625P / 750P / 1125i | |
| Video signal | Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75 ohm / sync. negative 0.3V or 3-state +/-0.3V on Y) | ||
| INPUT TERMINAL | RCA x 3 (Red / Green / Blue ) | ||
| COMPOSITE / S VIDEO | |||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative, 75 ohm)
/ S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75 ohm) |
||
| INPUT TERMINAL | S-Video | Mini DIN 4pin USB type B |
|
| Video | RCA (Yellow) x 1 | ||
| CONTROL I/O | |||
| SERIAL I/O | I/O terminal | Mini D-sub 9-pin x 1 USB - type B | |
| I/O signal | RS-232C | ||
| LOCK FUNCTION | Key-lock, Child-lock, Focus-lock, Zoom-lock | ||
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) (20% to 80% Humidity) | ||
| COOL-DOWN PERIOD | approx 30 seconds | ||
| START-UP PERIOD | approx 15 seconds | ||
| POWER SUPPLY VOLTAGE | 100-240 VAC ±10% , 50/60Hz | ||
| POWER CONSUMPTION | |||
| LAMP ON | 260w (High) 200w (Low) |
||
| STANDBY | 0.5w | ||
| DIMENSIONS | |||
| EXCLUDE FEET | 440mm(W) x 320mm(D) x 114mm(H) | ||
| MAXIMUM DIMENSION | 440mm(W) x 320mm(D) x 134mm(H) | ||
| WEIGHT | Approx. 11.8lbs / 5.3kg | ||
| FAN NOISE | |||
| HIGH BRIGHTNESS MODE | 37dB (Dynamic / Living Room) | ||
| WHISPER MODE | 28dB (Theatre / Natural / s-RGB) | ||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| REMOTE CONTROL | Stick type (back lit) | ||
| BATTERY | <AA> x2 | ||
| USB CABLE | Included 1.8m | ||
| Epson CINEMA COLOR EDITOR | CD Rom (Win/Mac) Included | ||
| USER'S MANUAL | Included | ||
| QUICK REFERENCE CARD | Included | ||
| SAFETY INSTRUCTIONS | Included | ||
| LENS CAP | Included | ||
| WARRANTY* | 2 years | ||
| * excluding lamp | |||
| * For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8 | |||
| PRODUCT CODE | V11H174053 | ||
Product Options
| Product Code | Item Code | Description |
|---|---|---|
| ELP-KS51 | V12H001K51 | Soft Carry Case |
| ELP-LP28 | V13H010L28 | Lamp |
| 7011342 | 7011342 | Ceiling Mount with extendable pole (up to 110mm) |
| 3YWTW200H | 3YWTW200H | 3rd Year Warranty |
