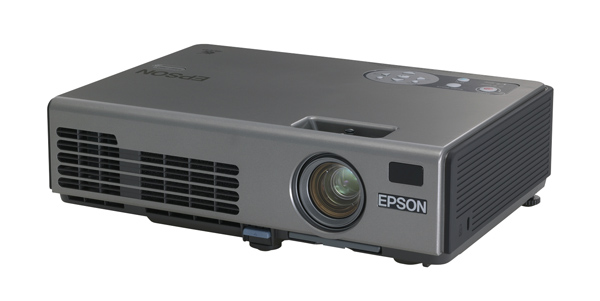

Back catalogue – Epson EMP-760
Powered by 3LCD technology, the Epson EMP-760 and 765 combine a lightweight, compact design with XGA resolution and an impressive brightness of 2500 ANSI lumens. Packed with advanced features both projectors are the ideal mobile solution for your presentation needs.
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | |
|---|---|---|
| PROJECTION METHOD | Front / Rear / Ceiling Mount | |
| SPECIFICATION OF MAIN PARTS | ||
| LCD | Size | 0.7 inches with MLA |
| Driving method | Poly-Silicon TFT Active Matrix | |
| Pixel number | 786,432 pixels (1024 x 768) x 3 |
|
| Native resolution | XGA | |
| Aspect ratio | 4:3 | |
| Pixel arrangement | Stripe | |
| Refresh Rate | 72Hz | |
| PROJECTION LENS | Type | Manual: zoom / focus 1.2 x optical zoom |
| F-number | 1.58 - 1.76 | |
| Focus length | 23.7 - 28.5mm | |
| Zoom ratio | 1:1.2 | |
| Offset | 6:1 | |
| LAMP | Type | 170 W UHE |
| Optical System | Dichroic Mirror Separation & Prism Combine Method | |
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [1.0 to 12.1m] (Zoom: Tele), 30 to 300 inch [1.0 to 10.1m] (Zoom: Wide) |
|
| BRIGHTNESS | ||
| High Brightness | 2500 Lumens (Colour mode: Dynamic, Zoom: Wide) |
|
| Low Brightness | 2000 Lumens (Colour mode: Dynamic, Zoom: Wide) |
|
| CONTRAST | 400:1 | |
| BRIGHTNESS UNIFORMITY | 90% (Typ.) | |
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | |
| SOUND OUTPUT (Internal speaker) | 1W monaural | |
| FUNCTION | Pointer, User Logo, A/V mute, Freeze | |
| COLOUR MODES | Dynamic, Presentation, Living room, Theatre, Blackboard, sRGB | |
| EFFECTIVE SCANNING FREQUENCY RANGE (Analog) | ||
| PIXEL CLOCK | 13.5MHz to 162MHz | |
| HORIZONTAL | 15KHz to 92KHz | |
| VERTICAL | 50Hz to 85Hz | |
| ADJUSTMENT FUNCTION | ||
| PROJECTOR / REMOTE CONTROL | Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal, etc | |
| height ADJUSTER | Front-centre, Rear | |
| TILT ANGLE | 0 to 12 degrees | |
| KEYSTONE CORRECTION | Vertical: -30 to +30 degrees (Zoom: Tele) | |
| AUTO KEYSTONE CORRECTION | Vertical: -30 to +30 degrees (Zoom: Tele) | |
| AUTO DETECTION OF RGB / YCbCr | Implemented | |
| OPERATION PANEL PROTECTED FUNCTION | Implemented | |
| PASSWORD PROTECTED FUNCTION (SECURITY FUNCTION) |
Implemented (Protection of User logo, Time lock) |
|
| ANALOGUE RGB I/O | ||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels |
| INPUT SIGNAL | Signal type | Separate signal |
| Video signal | Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. signal | Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | |
| VIDEO INPUT TERMINAL | Mini D-sub 15pin x 1 Blue-moulding | |
| VIDEO I/O | ||
| DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 line (Depends on observation of the multi burst pattern) | |
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| Video signal | Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Audio signal | 500mVrms / 47Kohm | |
| VIDEO INPUT TERMINAL | Composite Video: RCA (Yellow) x 1 | |
| S-Video: Mini DIN | ||
| Component Video: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) |
||
| Video-RGB: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) |
||
| AUDIO I/O | ||
| AUDIO SIGNAL | 500mVrms / 47Kohm | |
| AUDIO TERMINAL | (Audio In is available) | |
| CONTROL I/O | ||
| USB I/O | I/O terminal | USB connector series B x1 (for mouse, K/B, control) |
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) (20% to 80% Humidity) | |
| COOL-DOWN PERIOD | Instant off | |
| START-UP PERIOD | Approx. 7 seconds | |
| POWER SUPPLY VOLTAGE | 100-240V ±10% 50/60Hz AC | |
| POWER CONSUMPTION | 100-240VAC 2.7-1.1A 50/60Hz Lamp On 240W |
|
| DIMENSIONS | ||
| EXCLUDE FEET | 193(D) x 276(W) x 70(H) mm | |
| MAXIMUM DIMENSION | 193(D) x 276(W) x 81(H) mm | |
| WEIGHT | Approx. 1.7Kg | |
| FAN NOISE | 35dB (low brightness mode) | |
| ACCESSORIES | ||
| POWER CORD | 1.8m | |
| COMPUTER CABLE | 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) | |
| USB CABLE | 1.8m, USB A / B | |
| REMOTE CONTROL | Included | |
| BATTERY | Alkaline AA x 2 | |
| AUDIO ADAPTER | 3.5mm stereo miniplug (male) <-> RCA jack x2 (female) 15cm | |
| SOFT CARRYING CASE | Included | |
| LENS COVER | Included | |
| PASSWORD PROTECT STICKER | Included | |
| OWNER'S MANUAL | Included | |
| WARRANTY | ||
| STANDARD WARRANTY | 2 years* *excluding lamp |
|
| * For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8 | ||
| PRODUCT CODE | ||
Product Options
| Product Code | Item Code | Description |
|---|---|---|
| 7010180 | 7010180 | Aluminium Briefcase |
| ELP-LP32 | V13H010L32 | Lamp |
| ELP-ST09 | V12H007T09 | Presentation Remote Control Kit |
| ELP-KC11 | V12H005C11 | 15pin to BNC cable |
| ELP-KC19 | V12H005C19 | Component Video cable |
