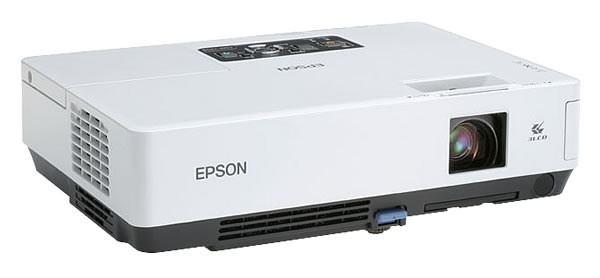

Back catalogue – Epson EMP-1710
When you're conducting a presentation, projection quality counts! And the Epson EMP–1710 delivers on the brightness, contrast and flexibility you need in a projector, so you can concentrate on getting your message across.
| PRODUCT TYPE | Portable Multimedia Projector | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.7 inches with MLA (D4.5) | |
| Driving method | Poly-Silicon TFT Active Matrix 786,432 pixels | ||
| Pixel number | (1024 x 768) x 3 | ||
| Native resolution | XGA | ||
| Aspect ratio | 4:3 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 50Hz-72Hz | ||
| PROJECTION LENS | Type | Manual: zoom / focus | |
| F-number | 1.6 - 1.77 | ||
| Focus length | 23.77 - 28.54mm | ||
| Zoom ratio | 1 - 1.2 | ||
| Offset | 6:1 | ||
| LAMP | Type | 170 W UHE | |
| Optical System | Dichroic Mirror Separation & Prism Combine Method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [1.2 to 12.1m] (Zoom: Tele), 30 to 300 inch [1.0 to 10.1m] (Zoom: Wide) 60" screen 2.0m - 2.4m |
||
| BRIGHTNESS | |||
| High Brightness Mode | 2700 Lumens (Colour mode: Game, Zoom: Wide) |
||
| Low Brightness Mode | 2100 Lumens (Colour mode: Game, Zoom: Wide) |
||
| CONTRAST | 400:1 | ||
| BRIGHTNESS UNIFORMITY | 83% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| SOUND OUTPUT (Internal speaker) | 1W monaural | ||
| FUNCTION | Pointer, User Logo, A/V mute, Freeze, E Zoom, HELP | ||
| COLOUR MODES | PC: Photo, Presentation, Theatre, Game, sRGB Video: Sports, Presentation, Theatre, Game, sRGB, Blackboard, Custom | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (Analog) | |||
| PIXEL CLOCK | 13.5MHz to 162MHz | ||
| HORIZONTAL | 15KHz to 92KHz | ||
| VERTICAL | 50Hz to 85Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal, etc | ||
| HEIGHT ADJUSTER | Front-centre | ||
| TILT ANGLE | 0 to 12 degrees | ||
| KEYSTONE CORRECTION | Vertical: -30 to +30 degrees (Zoom: Tele) | ||
| AUTO KEYSTONE CORRECTION | Vertical: -30 to +30 degrees (Zoom: Tele) | ||
| SOURCE SEARCH | Yes | ||
| AUTO DETECTION OF RGB / YCbCr | Yes | ||
| MULTI SCREEN COLOUR ADJUSTMENT | Yes | ||
| OPERATION PANEL PROTECTION FUNCTION | Yes | ||
| PASSWORD PROTECTED FUNCTION | YES | ||
| (Protection of User logo, Time lock) | |||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47Kohm | ||
| INPUT TERMINAL | Video | D-sub 15pin x 1 Blue-moulding | |
| Audio | Audio in only | ||
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | ||
| Audio signal | 500mVrms / 47Kohm | ||
| VIDEO INPUT TERMINAL | Composite Video: RCA (Yellow) x 1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) |
||
| AUDIO I/O | |||
| AUDIO SIGNAL | 500mVrms / 47Kohm | ||
| AUDIO TERMINAL | Stereo mini jack x 1 (Audio In only)) |
||
| CONTROL I/O | |||
| USB I/O | I/O terminal | Type B x1 (for mouse control) | |
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F), (20% - 80% Humidity) Thermal shutdown > 45 degree C |
||
| OPERATING ALTITUDE | 0m to 2286m < 0ft to 7500ft > (over 1500m / 4,921ft with high altitude mode) |
||
| DIRECT Power On | Yes | ||
| COOL-DOWN PERIOD | Instant off | ||
| START-UP PERIOD | Approx. 5 seconds | ||
| Exhaust direction | Side | ||
| POWER SUPPLY VOLTAGE | 100-240V AC±10% 50/60Hz | ||
| POWER CONSUMPTION | 100-240VAC 2.7-1.1A 50/60Hz Lamp On 228W |
||
| DIMENSION | |||
| EXCLUDE FEET | 193(D) x 273(W) x 68(H) mm | ||
| MAXIMUM DIMENSION | 193(D) x 273(W) x 79(H) mm | ||
| WEIGHT | Approx. 1.6Kg | ||
| FAN NOISE | |||
| HIGH BRIGHTNESS MODE | 40dB | ||
| LOW BRIGHTNESS MODE | 35dB | ||
| ACCESSORIES | |||
| POWER CORD | 1.8m | ||
| COMPUTER CABLE | 1.8m, Mini D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| REMOTE CONTROL | Compact type (Included) | ||
| BATTERY | Alkaline AAA x 2 | ||
| AUDIO ADAPTER | 3.5mm stereo miniplug (male) <-> RCA jack x2 (female) 15cm | ||
| SOFT CARRYING CASE | Included | ||
| LENS COVER | Included | ||
| PASSWORD PROTECT STICKER | Included | ||
| OWNER'S MANUAL | Included | ||
| WARRANTY | |||
| STANDARD WARRANTY | 2 years* *excluding lamp |
||
| * For more information visit Epson Projector Warranty | |||
| PRODUCT CODE | V11H230053 | ||
| PRODUCT OPTIONS | |||
| Product Code | Item Code | Description | |
| ELP-LP38 | V13H010L38 | Lamp | |
