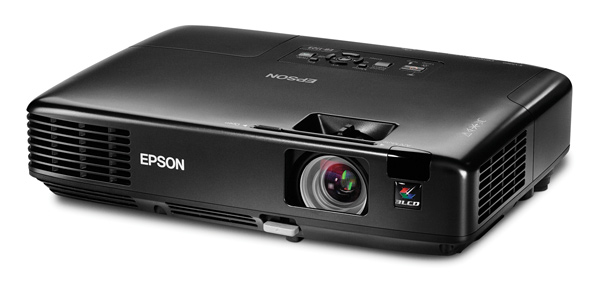

Back catalogue – Epson EB-1723
Epson is pleased to introduce the Epson EB-1723 3LCD portable multimedia projector. Engineered for ease of use, the Epson EB-1723 features automatic keystoning, PC free JPEG presentation capability and optional wireless operation. With its sleek, slim-line design, and attractive piano-black finish, the EB-1723 not only presents the high quality professional image you expect from the world’s number one projector manufacturer, it boasts good looks too. The EB-1723 is the smart choice for professionals on the go.
KEY FEATURES:
- Powerful 2,700 Lumens Light / Colour Light Output – Enables the EB-1723 to be used in bright office environments such as board and meeting rooms.
- Automatic Vertical Keystone Correction – Simply turn on the EB-1723 and the image is automatically detected and made square on the screen or wall
- 1.2X Zoom Lens – Big, bold presentations, whether in a small or large meeting room
- USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Optional Wireless Functionality – Deliver presentations wirelessly from your notebook with the addition of the ELPAP03 Wireless LAN Unit
FEATURES AND BENEFITS:
Dazzling, 2,700 Lumens Light / Colour Light Output
The Epson EB-1723 boasts an impressive light output and colour light output of 2,700 lumens giving professionals the ability to project bright, bold images in even the brightest of office environments. With the EB-1723 in your business toolkit, your presentations will dazzle your audience where ever you go.
Automatic Vertical Keystone Correction
Total ease of use is paramount with the EB-1723. Simply point the projector at a screen or wall, turn it on, and the EB-1723 takes care of the rest. Through its ability to automatically detect the projected image, the EB-1723 adjusts to ensure that the image is vertically square. Setting up for your presentation is fast and simple ensuring a professional result every time.
USB Display Function and USB Memory Slide Show
The EB-1723 can display your presentation via a connection to a PC with a simple USB cable. You can also display images directly from a USB memory device, making it possible to give presentations without the need for a PC.
Optional Wireless Connectivity
With the addition of the ELPAP03 Wireless LAN Unit, the EB-1723 becomes a part of your 802.11a/b/g wireless network enabling users to present without cables.
Input/Output Terminals
S-Video, RCA, D-Sub 15 pin, Stereo Mini Jack, USB Type-B, USB Type-A
| PRODUCT TYPE | Portable Multimedia Projector | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.70 inch with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | (1024 x 768) x 3 | ||
| Native resolution | XGA | ||
| Aspect ratio | 4:3 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 50Hz - 72Hz | ||
| PROJECTION LENS | Type | Manual zoom / focus | |
| F-number | 1.58 - 1.68 | ||
| Focal length | 16.1mm - 19.34mm | ||
| Zoom ratio | 1.0 - 1.2 | ||
| Off Set | 6:1 | ||
| Type | 170W UHE | ||
| Optical System | Dichroic Mirror Separation & Prism Combine Method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 30 to 300 inch [0.8 to 8.26m] (Zoom: Tele), 30 to 300 inch [0.65 to 6.75m] (Zoom: Wide) 60" screen 1.33m - 1.63m |
||
| LIGHT OUTPUT | |||
| High Brightness Mode | 2,700 Lumens Light Output 2,700 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide) |
||
| Low Brightness Mode | 1,700 Lumens Light Output 1,700 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide) |
||
| CONTRAST | 2000:1 (Auto Iris On) | ||
| BRIGHTNESS UNIFORMITY | 89% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| SOUND OUTPUT (Internal speaker) | 1W monaural | ||
| FUNCTION | Pointer, User Logo, A/V mute, Freeze, E Zoom, Help | ||
| COLOUR MODES | PC: Photo, Presentation,
Theatre, Game, sRGB, Blackboard, Custom Video: Sports, Presentation, Theatre, Game, sRGB, Blackboard, Custom |
||
| EFFECTIVE SCANNING FREQUENCY RANGE | |||
| PIXEL CLOCK | 13.5MHz to 162MHz | ||
| HORIZONTAL | 15KHz to 92KHz | ||
| VERTICAL | 50Hz to 85Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal | ||
| HEIGHT ADJUSTER | Front-centre | ||
| TILT ANGLE | 0 to 12 degrees | ||
| KEYSTONE CORRECTION | Vertical: -30 to +30 degrees (Zoom: Tele) | ||
| AUTO KEYSTONE CORRECTION | Vertical: -30 to +30 degrees (Zoom: Tele) | ||
| SOURCE SEARCH | YES | ||
| AUTO DETECTION OF RGB / YCbCr | YES | ||
| MULTI SCREEN COLOUR ADJUSTMENT | YES | ||
| OPERATION PANEL PROTECTION FUNCTION | YES | ||
| PASSWORD PROTECTED FUNCTION (Security function) |
YES (Protection of User logo, Time lock, Network) | ||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1024 x 768 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47K-ohm | ||
| INPUT TERMINAL | Video | D-sub 15pin x 1 (Blue moulding) | |
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | ||
| Audio signal | 500mVrms / 47Kohm | ||
| VIDEO INPUT TERMINAL | Composite Video: RCA (Yellow) x 1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin Blue-moulding (in common with Analog RGB connector) USB Display |
||
| AUDIO I/O | |||
| AUDIO SIGNAL | 500mVrms / 47Kohm | ||
| AUDIO TERMINAL | Stereo mini jack x 1 (Audio In or Out are selectable on OSD menu) (Audio Out is available via EasyMP) |
||
| CONTROL I/O | |||
| USB I/O | I/O Terminal | Type B x 1 (for mouse control) Type A x 1 ( for IM-X ) |
|
| USB I/O | Type | Type A x 1 ( Special I/O ) | |
| Supported Wireless LAN | Optional Accessory | ||
| Supported Ethernet | Optional Unit V12H005M02 | ||
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F)
> (20%-80% Humidity ) Thermal shutdown > 45°C |
||
| OPERATING ALTITUDE | 0m to 2,286m < 0ft to 7,500ft > (over 1,500m / 4,921ft with high altitude mode) |
||
| DIRECT POWER ON | YES | ||
| COOL-DOWN PERIOD | Instant off | ||
| START-UP PERIOD | Approx. 5 seconds | ||
| EXHAUST DIRECTION | Side | ||
| POWER SUPPLY VOLTAGE | 100-240V AC±10% 50/60Hz | ||
| POWER CONSUMPTION | 100-240VAC 2.7-1.2A 50/60Hz Lamp 230W (Lamp On) |
||
| DIMENSION | |||
| EXCLUDE FEET | 202(D) x 284(W) x 65(H) mm | ||
| MAXIMUM DIMENSION | 202(D) x 284(W) x 73(H) mm | ||
| WEIGHT | Approx. 1.8kg | ||
| FAN NOISE | |||
| ECO MODE | 30dB | ||
| NORMAL MODE | 39dB | ||
| ACCESSORIES | |||
| POWER CORD | 1.8m | ||
| COMPUTER CABLE | 1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| USB CABLE | 1.8m, USB A / B HI-SPEED | ||
| REMOTE CONTROL | Compact type (Included) | ||
| SOFT CARRYING CASE | Included | ||
| BATTERY | Alkaline AAA x 2 | ||
| AUDIO ADAPTER | 3.5mm stereo miniplug (male) <-> RCA jack x2 (female) 15cm | ||
| WIRELESS LAN ADAPTOR | 802.11a/11b/11g (Optional) | ||
| SOFT CARRYING CASE | Included | ||
| LENS COVER | In built | ||
| SOFTWARE | Included (CD-ROM) | ||
| PASSWORD PROTECT STICKER | Included | ||
| OWNER'S MANUAL | CD-ROM | ||
| Easy MP Function (Requires Optional Wireless Adapter) | |||
| (wireless functionality) | 802.11 a/b/g wireless connectivity Projector control and projector management via network Email notification SNMP PC Free Network presentation (Network and USB) Web Control |
||
| Software | EMP Monitor (for Windows*#) EMP NS Connection (for windows*# and Mac) EMP Slide Maker2 (for Windows*#) |
||
| (wireless functionality) | Security (Wireless LAN) | WEP, WPA-PSK (TKIP), WPA-PSK(AES) EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2, PEAP/MS-CHAPv2, PEAP/GTC LEAP EAP-East/MS-CHAPv2 EAP-Fast/GTC * Software compatible with MS Vista available free of charge at epson.com.au from June 1st, 2007 # EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit. |
|
| WARRANTY | |||
| STANDARD WARRANTY | 2 years* *excluding lamp |
||
| * For more information visit Epson Projector Warranty | |||
| PRODUCT OPTIONS | Product Code | Description | |
| ELP-LP48 | Lamp | ||
| V12H306P11 | ELPAP03 Wireless LAN Adapter | ||
| 3V12H005M0B | RJ-45 LAN Adapter | ||
| 7012083 | Ceiling mount with telescopic pole | ||
| 7012084 | Ceiling mount standard | ||
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. | |||
