Back catalogue – Epson EB-450Wi

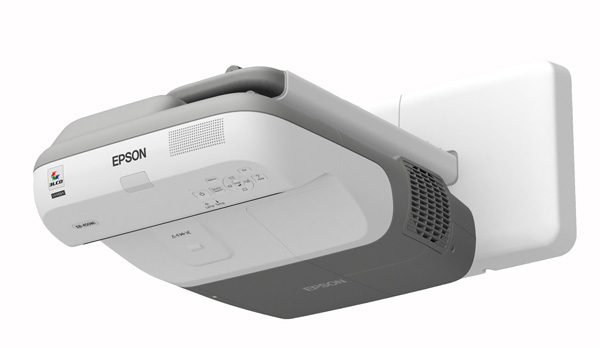

Epson is pleased to introduce the Epson EB-450Wi Interactive Ultra Short Throw 3LCD Multimedia Projector. Stylish and discreet, The EB-450Wi projector enables users to turn any hard flat wall into an interactive workspace.
KEY FEATURES:
- Interactive Model – Turn any hard flat wall into an interactive workspace
- Ultra Short Throw Projection – Minimised glare and shadows
- Powerful Brightness up to 2,500 Lumens – No need to close the curtains or dim the lights
- Low Power Consumption and Long Lamp Life – Low Total Cost of Ownership
- Integrated Wall Mount Included – Stylish, unobtrusive modern design
- Network Functionality – Operate and monitor from a remote location
- 3 Year Projector / 1 Year Lamp Warranty – Peace of mind protection for your investment
- Direct Connect to ELP-DC06 – View images directly
from Document Camera / Visualiser
With stylish, modern design and cutting edge technology, the Epson EB-450Wi sets a new standard for Ultra Short Throw projection. Offering interactivity, a sharp, square-edged image, and a brightness of up to 2,500 lumens Light Output and 2,500 lumens Colour Light Output, the EB450Wi is ideal for the modern classroom environment. Interactive lesson content has never looked so good!
FEATURES AND BENEFITS:
Interactive Feature
In
the past, you needed a projector and an interactive whiteboard to create an
interactive environment in a meeting room or class room. Now, you can make almost
any wall interactive with the EB-450Wi.
This high performance projector and interactive-pen combination integrates interactive
functionality into one machine. With no requirement for an interactive whiteboard,
you can utilise an existing pen-based whiteboard or even a flat wall for full
colour presentations, interactive brainstorming sessions, annotation on-the-fly
and much more. With the EB-450Wi and it’s easy to use software (via download
from www.epson.com.au) you can turn your whiteboard into a fully interactive
business or teaching tool. At the end of your meeting, simply save the file
for printing or emailing to attendees.
Ultra Short Throw Projection
Capable
of producing an interactive image size anywhere from 59” up to 96”
diagonal (native WXGA) on nearly any wall, the Epson EB-450Wi delivers an amazing
interactive work environment. Thanks to this Ultra Short Throw distance, presenters
are able to deliver rich multimedia content without the distraction of glare
in the eyes, or shadows on the board disrupting vision. With the added benefit
of 3LCD Technology, presentations will feature rich, vibrant colours that bring
content to life. Plus, with up to 2,500 lumens Light Output, there is no need
to dim the lights or draw the curtains, so meetings or lessons can start straight
away without interruption.
Low Power Consumption and Long Lamp Life
At Epson, we know that planning for the future requires a strong commitment
to the environment. That’s why these products conform to the new European
Directive on Eco-Design of energy using products. The main objective of this
directive is to ensure energy efficiency throughout a product’s lifecycle.
The EB-450Wi conforms to the criteria of this directive.
As with all Epson products, ease of use and low cost of ownership were paramount
in the design process used to create the EB-450Wi. Lamp life is estimated at
up to 3,500 hours in ECO mode, making it one of the longest lasting lamps in
this category. We even back these lamps with a full 12 month, 750 hour lamp
warranty to give you peace of mind.
Integrated Wall Mount Included
In
keeping with the sleek, unobtrusive design of these projectors is the integrated
wall mount that ships with the product. No additional purchase is required for
install, and being Epson designed and manufactured, you know that the quality
is second to none.
With the Epson mount, installation and set up is a breeze. The projector ships
with the mounting plate already attached, ready to slide onto the mount arm.
Featuring micro adjustment capabilities for tilt, pitch and yawl means that
installers are able to get a perfect picture quickly and easily. That means
less down time for each classroom and less cost to the school.
Network Functionality
With
the EB-450Wi, monitoring and operation can be carried out from a remote PC via
network connection. System Administrators can turn the projector off, switch
between sources, as well as control and monitor lamp and temperature conditions.
Using this feature you can be sure that all projectors are operating correctly
and be certain that all units are turned off at the end of the day and in the
process, save time, money and reduce drain on the environment.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern classroom is the ability for the
EB-450Wi to connect directly to the Epson ELP-DC06 document camera / visualiser.
These Epson products feature unique technology enabling them to connect via
USB and provide full operation without the need for a PC.
Wireless Connectivity
With the addition of the ELPAP03 Wireless LAN Unit, the EB-450Wi projector becomes
a part of your 802.11a/b/g wireless network. For incredibly easy peer-to-peer
wireless connection on the fly without the need for additional software, add
the ELPAP05 Easy MP quick wireless connection USB key.
Connectivity Panel
PRODUCT TYPE | Entry Level Multimedia Projectors | ||
---|---|---|---|
PRODUCT NAME | |||
PRODUCT CODE | |||
PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
PROJECTION METHOD | Ceiling Mount Front / Ceiling Mount Rear | ||
SPECIFICATION OF MAIN PARTS | |||
LCD | Size | 0.56 inches with MLA | |
Driving method | Poly-Silicon TFT Active Matrix | ||
Pixel number | 1,024,000 pixels (1280 x 800) x 3 | ||
Native resolution | WXGA | ||
Aspect ratio | 16:10 (which covers 16:9 and 4:3) | ||
Pixel arrangement | Stripe | ||
Refresh Rate | 50Hz-60Hz | ||
PROJECTION LENS | Type | Digital zoom / Manual focus | |
F-number | 1.8 | ||
Focal length | 4.68mm | ||
Zoom ratio | 1.0 - 1.35 (Digital) | ||
LAMP | Type | 230W UHE E-TORL | |
Life (estimated) | 2500Hr (Normal Mode) # 3500Hr (ECO Mode) # #Subject to operation & environmental conditions. |
||
OPTICAL SYSTEM | Dichroic Mirror Separation & Prism combine method | ||
SCREEN SIZE (PROJECTED DISTANCE) | 59 to 97 inch [0.465 to 0.766 m] | ||
BRIGHTNESS | |||
Normal Mode | 2,500 Lumens Light Output 2,500 Lumens Colour Light Output (Colour mode: Dynamic, Zoom, Wide) |
||
ECO Mode | 1,740 Lumens Light Output 1,740 Lumens Colour Light Output (Colour mode: Dynamic, Zoom, Wide) |
||
CONTRAST | 2,000:1 (Color mode: Dynamic, High brightness mode, Zoom: Wide, Auto iris: On) | ||
BRIGHTNESS UNIFORMITY | 90% (Typ.) | ||
COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
VIDEO QUALITY | 3D Y/C separation, Noise Reduction Motion compensated Interlace-Progressive conversion (2-2,3-2 film detection) | ||
SOUND OUTPUT | 10W monaural | ||
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) | |||
PIXEL CLOCK | 13.5MHz to 162MHz | ||
HORIZONTAL | 15KHz to 92KHz | ||
VERTICAL | 50Hz to 85Hz | ||
ADJUSTMENT FUNCTION | |||
PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation / Sharpness / Input
Signal Colour Temperature / Tracking / Position / Sharpness / Volume etc... / |
||
COLOR MODE | Dynamic, Presentation, Theatre, Photo, Sports, sRGB, Blackboard, Whiteboard, | ||
FOOT ADJUSTER | Front-centre | ||
TILT ANGLE | 0 to 13 degrees | ||
KEYSTONE CORRECTION | Vertical: +/- 5 degrees | ||
PASSWORD PROTECTED FUNCTION (security function) | Implemented | ||
MICROPHONE VOLUME/MIX | Yes | ||
EASY INTERACTIVE FUNCTION | Yes | ||
ANALOGUE RGB I/O | |||
DISPLAY PERFORMANCE | Native | 1280 x 800 pixels | |
INPUT SIGNAL | Signal type | Separate signal | |
Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | ||
Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
Audio signal | 500mVrms / 47k-ohm | ||
INPUT TERMINAL | Video | D-sub 15pin x 1 Blue moulding | |
Audio | Stereo mini jack x 1 | ||
OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
Sync. | Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp) |
||
OUTPUT TERMINAL | Video | D-sub 15pin x 1 (Black moulding) | |
VIDEO I/O | |||
DISPLAY PERFORMANCE | NTSC: 560 line PAL: 560 lines (Depends on observation of the multi burst pattern) | ||
INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
Audio signal | 500mVrms / 47k-ohm | ||
INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin Blue molding |
|
Audio | RCA x 2 (White/Red ) | ||
USB DISPLAY | Display Performance | 1280 x 800 | |
Video | Yes | ||
Audio | No | ||
CONTROL I/O | |||
SERIAL I/O | Terminal | D Sub 9 pin x 1 | |
Signal | RS-232C | ||
USB I/O | Terminal | USB Type B x1 Ver. 2.0 (USB Display, mouse, K/B) | |
MICROPHONE | Terminal | Stereo mini jack 3.5 mm | |
MEMORY I/O | |||
USB I/O | Terminal | USB Type A x1 Ver. 2.0 (USB Memory / document camera) | |
NETWORK I/O | |||
Network Interface | RJ45 x 1 | ||
USB I/O | Terminal | Type A x 1 (Optional wireless LAN unit I/O) | |
EASY MP | |||
FUNCTION | E-mail notification | SNMP | Web control | PJ-Link |
AMX Device Discovery compatible | |||
Slideshow (photo) | |||
Network Presentation | |||
Message Broadcasting | |||
SOFTWARE | EasyMP Network Projection Ver.2.61 EasyMP Monitor Ver.4.40 |
||
WIRELESS SECURITY | WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES) | ||
OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity ) | ||
COOL-DOWN PERIOD | "Instant Off" | ||
START-UP PERIOD | Approx. 9 seconds (warm up 30 seconds) | ||
DIRECT POWER ON | Yes | ||
DIRECT POWER OFF | Yes | ||
POWER SUPPLY VOLTAGE | 100-240V AC±10% 50/60Hz | ||
POWER CONSUMPTION | 240VAC 2.7-1.1A 50/60Hz Lamp 343W (Lamp on) 0.3W (standby, network off) |
||
EXHAUST DIRECTION | Side | ||
DIMENSION | |||
EXCLUDE FEET | 369(D) x 481(W) x 115(H) mm | ||
MAXIMUM DIMENSION | 369(D) x 483(W) x 115(H) mm | ||
WEIGHT | Approx. 6.2kg (with mounting plate) | ||
FAN NOISE | |||
HIGH BRIGHTNESS MODE | 35dB | ||
LOW BRIGHTNESS MODE | 28dB | ||
WARRANTY | |||
STANDARD WARRANTY | 3 years* *excluding lamp |
||
* For more information visit Epson Projector Warranty Website | |||
ACCESSORIES | |||
POWER CORD | 5m | ||
USB CABLE | 5 m, USB A / USB B | ||
REMOTE CONTROL | Included | ||
BATTERY | Manganese dry cell AA x 2 (for Remote) & Alkaline AAA x 2 (for Easy Interactive Pen) | ||
EASY INTERACTIVE PEN | Included | ||
PASSWORD PROTECT STICKER | Included | ||
EPSON PROJECTOR SOFTWARE | Meeting & Monitoring Ver.1.11 & Easy Interactive Function Ver.1.00 (CDROM) | ||
OWNER'S MANUAL | CD-ROM | ||
PROJECTOR MOUNT | Included (Wall mount with adjustable arm) | ||
#Subject to operation and environmental conditions. | |||
