Back catalogue – Epson EB-826WH

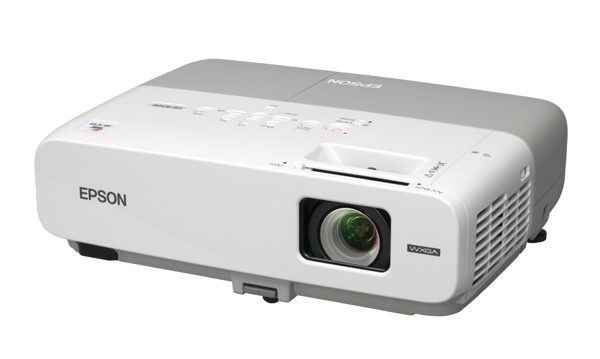

Epson is pleased to introduce the Epson EB-826WH 3LCD Multimedia Projector. Powerful and easy to use, this projector offers low cost of ownership, and ease of maintenance. Beautiful crisp, clear images make the EB-826WH the ideal choice for use in a wide variety of Corporate and Education environments.
KEY FEATURES:
- 1.6X Zoom Lens – Enabling installation in a wide range of mount placements
- Powerful 2,500 Lumens Brightness – Enables the EB-826WH to be used in bright environments such as classrooms and offices.
- Long Lamp Life + Easy Maintenance – Lamp life is up-to 2.5 times longer than competitor products in this category. Plus lamp maintenance is simple even when mounted upside down
- USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Network Functionality – Operate and monitor from a remote location
- 3 Year Projector / 1 Year Lamp Warranty – Peace of mind protection for your investment
- Direct Connect to ELP-DC06 – View images directly from Document Camera / Visualiser
- Low Power Consumption – The EB-826WH complies with the European EuP Directive on Eco-Design of energy using products.
With a category leading lamp life expectancy, low power consumption, and powerful 2,500 lumens brightness, the EB-826WH is ideally suited for use in the modern classroom or office environment.
FEATURES AND BENEFITS:
Powerful BrightnessThe Epson EB-826WH is capable of producing a high-brightness 2,500 lumen image. This impressive brightness making it ideal for classroom use. With this powerful projector you don’t have to dim the lights or close the windows in order to see a bright, clear image.
Long Lamp Life and Easy Maintenance
Lamp life for the EB-826WH is an impressive 5,000 hours (estimated) in high brightness mode or an amazing 6,000 hours (estimated) in low brightness mode. We even back our lamps with a full 12 month, 1,000 hour lamp warranty giving you the peace of mind. By the time you need to change the lamp in this product, you may have changed up to 2.5 lamps if you had used a competitor’s product from this category.
Maintaining the EB-826WH is easy even when ceiling mounted. Changing the filter or lamp is a simple in-situ, end-user changeable operation meaning you don’t require the additional expense of a visit from a service agent.
USB Display Function and USB Memory Slide Show
The EB-826WH can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.
Network Functionality
With the EB-826WH, monitoring and operation can be carried out from a remote PC via network connection. System Administrators can turn the projector off, switch between sources, as well as control and monitor lamp and temperature conditions. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern classroom is the ability for the EB-826WH to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.
Wireless Connectivity
With the addition of the ELPAP03 Wireless LAN Unit, this projector can become a part of your 802.11a/b/g wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP05 Easy MP quick wireless connection USB key.
Low Power Consumption – EuP Compliance
At Epson, we know that planning for the future requires a strong commitment to the environment. That’s why many of our products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-826WH conforms to the criteria of this directive.
| PRODUCT TYPE | Entry Level Multimedia Projectors | ||
|---|---|---|---|
| PRODUCT NAME | |||
| PRODUCT CODE | |||
| PROJECTION SYSTEM | RGB Liquid Crystal Shutter Projection System | ||
| PROJECTION METHOD | Front / Rear / Ceiling Mount | ||
| SPECIFICATION OF MAIN PARTS | |||
| LCD | Size | 0.59 inches with MLA | |
| Driving method | Poly-Silicon TFT Active Matrix | ||
| Pixel number | 1.024 Million pixels (1280 x 800) x 3 | ||
| Native resolution | WXGA | ||
| Aspect ratio | 16:10 | ||
| Pixel arrangement | Stripe | ||
| Refresh Rate | 50Hz-60Hz | ||
| PROJECTION LENS | Type | Manual zoom / focus | |
| F-number | 1.49 - 1.94 | ||
| Focal length | 18.2mm - 29.2mm | ||
| Zoom ratio | 1.0 ~ 1.62 Digital | ||
| LAMP | Type | 200W UHE E-TORL | |
| Life (estimated) | 5000Hr# (High bright), 6000Hr# (Low bright) | ||
| # Subject to operation and environmental conditions. | |||
| OPTICAL SYSTEM | Dichroic Mirror Separation & Prism combine method | ||
| SCREEN SIZE (PROJECTED DISTANCE) | 29 to 280 inch [0.84 to 8.7m] (Zoom: Wide) 29 to 280 inch [0.84 to 8.7m] (Zoom: Tele), |
||
| BRIGHTNESS | |||
| High Brightness Mode | 2,500 Lumens Light Output 2,500 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide) |
||
| Low Brightness Mode | 2,000 Lumens Light Output 2,000 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide) |
||
| CONTRAST | 2,000:1 (Auto Iris On) | ||
| BRIGHTNESS UNIFORMITY | 90% (Typ.) | ||
| COLOUR REPRODUCTIVITY | Full colour (16.77 million colours) | ||
| VIDEO QUALITY | 3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (3-2 film detection only) | ||
| SOUND OUTPUT | 10W monaural | ||
| EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) | |||
| PIXEL CLOCK | 13.5MHz to 162MHz | ||
| HORIZONTAL | 15KHz to 92KHz | ||
| VERTICAL | 50Hz to 117Hz | ||
| ADJUSTMENT FUNCTION | |||
| PROJECTOR / REMOTE CONTROL | Brightness / Contrast / Tint / Saturation / Sharpness / Input
Signal Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c. |
||
| FOOT ADJUSTER | Front-centre | ||
| TILT ANGLE | 0 to 11 degrees | ||
| AUTO KEYSTONE CORRECTION | Vertical: -30 to +30 degrees | ||
| PASSWORD PROTECTED FUNCTION (security function) |
Implemented | ||
| ANALOGUE RGB I/O | |||
| DISPLAY PERFORMANCE | Native | 1,280 x 800 pixels | |
| INPUT SIGNAL | Signal type | Separate signal | |
| Video signal | Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) | ||
| Sync. signal | Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) | ||
| Audio signal | 500mVrms / 47K-ohm | ||
| INPUT TERMINAL | Video | Video D-sub 15pin x 2 (Blue moulding) | |
| Audio | Stereo mini jack x 2 | ||
| OUTPUT SIGNAL | Video | Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) | |
| Sync. | Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp) |
||
| OUTPUT TERMINAL | Video | D-sub 15pin x 1 (Black moulding) | |
| VIDEO I/O | |||
| DISPLAY PERFORMANCE | NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) | ||
| INPUT SIGNAL | Video standard | NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM | |
| Video signal | Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
||
| Audio signal | 500mVrms / 47k-ohm | ||
| INPUT TERMINAL | Video | Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin x 2 (Blue moulding) |
|
| MIC | |||
| Input Signal | Audio | -50dBV to -40dBV (0dB=1V/Pa,1kHz) (TBD) | |
| Input Terminal | Audio | Stereo mini jack (Plug in power is available) | |
| CONTROL I/O | |||
| SERIAL I/O | Terminal | D Sub 9 pin x 1 | |
| Signal | RS-232C | ||
| EASY MP | |||
| FUNCTION | ESC/VP.net | ||
| E-mail notification | |||
| SNMP | |||
| Web control | |||
| PJ-Link | |||
| Duet | |||
| PC FREE | Message Broadcast | ||
| File Browser | |||
| Still Image | JPG; Thumbnail | ||
| Slideshow | |||
| WIRELESS Connectivity | 802.11 b/g | With optional wireless adapter | |
| SECURITY (Wireless LAN) | WEP (64bit/128bit) | ||
| WPA-PSK (TKIP/AES) | |||
| WPA2-PSK(TKIP/AES) | |||
| SOFTWARE | EMP Monitor (for Windows) | Epson IP Link Projector Control (for Windows) | |
| NS Connection | For wireless connectivity (Win & Mac OSX) | ||
| OPERATING TEMPERATURE | 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity ) | ||
| COOL-DOWN PERIOD | "Instant off" | ||
| START-UP PERIOD | Approx. 8.5 seconds (warm up 30 seconds) | ||
| DIRECT POWER ON | Yes | ||
| DIRECT POWER OFF | Yes | ||
| DIMENSION | |||
| EXCLUDE FEET | 250(D) x 327(W) x 95(H) mm | ||
| MAXIMUM DIMENSION | 250(D) x 327(W) x 108(H) mm | ||
| WEIGHT | Approx. 3.1kg | ||
| FAN NOISE | |||
| HIGH BRIGHTNESS MODE | 35dB | ||
| LOW BRIGHTNESS MODE | 28dB | ||
| WARRANTY | |||
| STANDARD WARRANTY | 3 years* *excluding lamp |
||
| * For more information visit Epson Projector Warranty Website | |||
| ACCESSORIES | |||
| POWER CORD | 3m | ||
| COMPUTER CABLE | 1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male) | ||
| REMOTE CONTROL | Included | ||
| PASSWORD PROTECT STICKER | Included | ||
| AIR FILTER | Included | ||
| OWNER'S MANUAL | CD-ROM | ||
| PRODUCT OPTIONS | |||
| Product Code | Item Code | Description | |
| ELPAP03 | V12H306P11 | Wireless LAN Adapter for G Series / EB-825/826W | |
| ELPAP05 | V12H005M05 | Quick Wireless Key for EB-825/826W | |
| V13H010L50 | Lamp | ||
| 7012083 | Ceiling mount with telescopic pole | ||
| 7012084 | Ceiling mount standard | ||
|
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
|||
