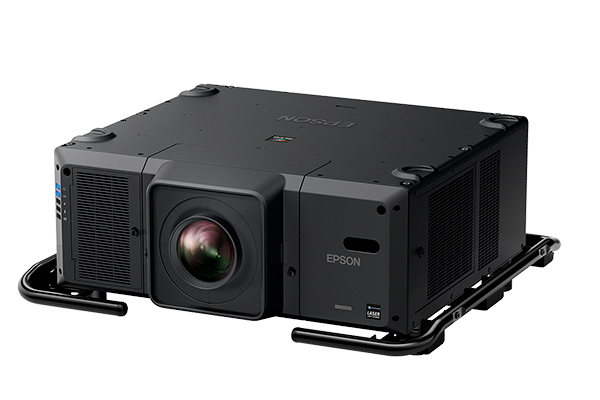

Back catalogue – EB-L30000UNL

  • 30,000 Lumens – Deliver captivating images in virtually any venue
  • Laser Light Source – Experience astonishing quality, flexibility and reliability
  • 2,500,000:1 Contrast Ratio – For lifelike images and remarkable detail in dark scenes
  • Up to 3x Brighter Colours, and reliable performance1 – 3LCD, 3-chip technology
  • 4K Enhancement – Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more
  • 1080p resolution – for Full HD presentations, videos, images, digital signage and more
  • High Dynamic Range – Faithfully reproduce HDR content for an exceptional visual performance
  • Triple layer dustproof structure – Protects the light source and optical elements from external dust for extra durability
  • Colour Uniformity – Keep images consistent and maintenance to a minimum with built-in automatic colour correction
  • Edge Blending – Combine multiple individual images to create one seamless giant image
  • HDBaseT – Transmit Full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100 m
  • 360° Installation – Install on any plane, from horizontal to vertical and everything in between
  • Powered lens shift, zoom and focus – Project perfectly uniform images with a new stepping motor and store up to 10 lens settings
  • Eight optional lenses – Choose the ideal powered lens for your venue from a wide range options
  • 5 Year Projector Warranty2 – A class leading 20,000 hour or 5 year warranty
  1. Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for October 2019 through September 2020.
  2. Whichever occurs first, see Epson Warranty for full warranty terms and conditions.
PRODUCT NAME
PRODUCT CODE
WHAT'S IN THE BOX
  EB-L30000UNL Projector, 3m Power Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Manual. (Lens not Included)
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 1.43-inch (D8)
OPTICAL
Zoom (ELPLM12 Lens) 1 - 1.35 (Optical)
Screen Size (ELPLM12 Lens) 100" to 1000" [3.68m to 37.92m] (Zoom: Wide)
100" to 1000" [4.99m to 51.03m] (Zoom: Tele)
Projection Distance (ELPLM12 Lens) 200" screen 7.48 m - 10.11 m
Throw Ratio (ELPLM12 Lens) 1.74 (Zoom:Wide), 2.35 (Zoom:Tele)
Projection Lens F Number 1.9-2.1
Projection Lens Focal Length 54.7mm - 73.0mm
Focus Method Powered
Colour Light Output 30,000 Lumens
White Light Output 30,000 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Light Source Laser Diode
LD Input Power 1,670 W
Keystone Correction (ELPLM12 Lens) Vertical: ±45°
Horizontal: ±30°
Lens Shift (ELPLM12 Lens) Vertical: ±65° (Powered)
Horizontal: ±30° (Powered)
CONNECTIVITY
Input: Video 1 x 5BNC
Input: Computer 1 x D-sub 15-Pin (RGB)
Input: Digital 1x HDMI, 1x DVI-D, 1x HDBaseT, 1x BNC (3G-SDI)
Input: Control 1x RS232c, 1x RJ45, 1x Stereo mini (Remote)
Input: Network I/O 1x RJ45 (Art-Net), 1 x USB Type A (for optional Wireless LAN unit, firmware update, copy OSD setting, DC out 500mA), 1 x USB Type B (firmware update, copy OSD setting)
Input: HDBaseT 1 x RJ45
Wireless Connectivity Optional
Output: Video 1x Monitor Out (via D-sub 15-pin), 1x BNC (3G-SDI)
ADVANCED FEATURES
Epson iProjection Yes
Epson iProjection Tool Yes
Wireless LAN Optional
4K Enhancement Yes
Lens Position Memory Yes (10 positions)
Split Screen Yes
Edge Blending Yes
Curved Screen Yes (Not available with 4K Enhancement mode is on)
Corner Wall Projection Yes (Not available with 4K Enhancement mode is on)
Quick Corner Yes
Point Correction Yes (Not available with 4K Enhancement mode is on)
Frame Interpolation Yes
Superresolution Yes
360 Degrees Projection Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington® – style lock provision
Wireless LAN Unit Lock
Colour Modes Dynamic, Presentation, Cinema, BT.709, Natural, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Excluding Feet, Projection Lens and Handle) 710 x 790 x 299 mm
Weight Approx. 63.8kg (not including lens and handle)
Projector Warranty 5 Years*
Power Consumption: LD On 2,325W
Power Consumption: Standby 2.5W
Noise Level Normal/Quiet: 49/41 dB

* Or 20,000 hours, whichever comes first.
PRODUCT OPTIONS Item Code Description
  V12H004R05 ELPLR05 REAR THROW LENS
  V12H004U05 ELPLU05 SHORT THROW LENS
  V12H004W07 ELPLW07 WIDE THROW LENS
  V12H004M0C ELPLM12 MID THROW LENS 1
  V12H004M0D ELPLM13 MID THROW LENS 2
  V12H004M0E ELPLM14 MID THROW LENS 3
  V12H004L09 ELPLL09 LONG THROW LENS
  V13H134A52 ELPAF52 Replacement Filter
  V12H547053 HDBaseT Transmitter
  V12H731P01 Wireless LAN adaptor
