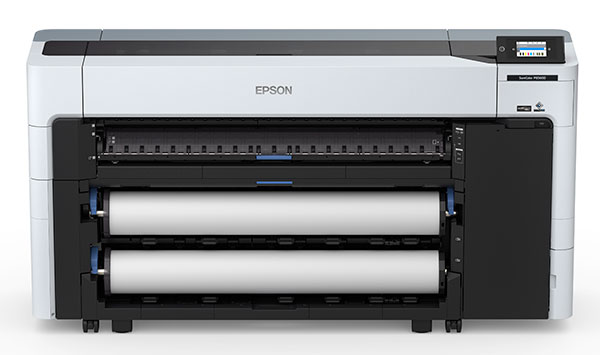

Epson SureColor P8560D - 44"

SureColor P8560D - 44

Large Format Printers

The SureColor P8560D combines an extremely compact footprint with flexible media handling and a high print speed. It is designed for companies who want to produce large-format colour and black-and-white photo images in moderate to high volume. This model is particularly suited to retail and print for pay applications. It uses 6 inks that come in large cost-effective cartridges with a light black (gray) for quality output with fine gradation. Integrated high-speed hardware-based Postscript® enables fast and accurate imaging via drag-n-drop from the desktop or direct from a USB device. All configurations feature dual-roll support with the second roll also able to be used as an Auto Take Up. There is an integrated pull-out media bin and an optional flat sheet stacker.

The SC-P8560D incorporates Epson's latest PrecisionCore print head with ultra-fine nozzles and a small minimum drop size for outstanding image quality. The extra wide 2.64" print width and durable high-speed feed mechanism makes it perfect for high volume production. The new all-aqueous UltraChrome® PRO6 ink set is suited to photo work. The addition of Gray ink enables smooth tones and fine gradation while the inclusion of Matte and Photo Black ink (with dedicated lines for each) facilitate operation with a wider range of media. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Prints dry almost instantly to be water and scratch resistant.

This printer accepts single-sheet and roll-based stocks ranging from standard bond to premium presentation paper and even board. It is extremely cost-effective to run with low power consumption, low ink consumption and low wastage. Designed for business and retail environments, it features a small footprint and flat top. The printer is easy to operate with a large touch-panel display and all-front-loaded consumables. It ships with a suite of software that enables output from office and photo applications along with job costing and remote management. An optional SSD is available for efficient workgroup operation with print spooling and direct reprint. The optional flat stacker is easy to connect/disconnect and will hold the output from two media rolls.


  • Incredible performance – high print speed with an industry-leading 2.64-inch PrecisionCore print head
  • Innovative design– up to 25% smaller than equivalent machines with a flat top, lit platen window and front panel USB interface
  • High image quality– UltraChrome PRO6 Ink for beautiful colour and B/W prints with fine detail
  • Wide application – print on gloss, matte semi-matte and specialty medias, even rigid poster board up to 1.5mm thick
  • Adobe Level 3 Print Engine – print PDFs up to 3x faster with more accurate processing and transparent layer handling
  • Dual-roll productivity – print continuously or on multiple media types and/or sizes with auto-loading and exchange, alternatively use the second roll as a take-up reel for roll-to-roll production
  • Easy setup and operation – simple to install, large 4.3" LCD touch screen control panel, all-front loaded consumables, integrated pull-out drop-down media bin
  • Versatile connectivity – High-Speed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz)
  • Enhanced integration and workflow – over 28 IT security features including IEEE 802.1x, NFC card support and optional 960GB SSD with encryption
  • Maximum productivity– ships with Win & Mac drivers, print and accounting s/w, supports advanced remote management and monitoring via Epson Cloud Solution PORT

Quality Results at High Speed
The SC-P8560D incorporates Epson's latest 2.64" PrecisionCore print head with micro-fine nozzles that support resolutions up to 2400x1200 dpi. The head is factory fitted to ensure maximum print precision and durable performance without the cost or inconvenience of regular replacement.3


Epson UltraChrome ink features an aqueous all-pigment construction. The PRO6 formulation includes additional Gray for colour and B&W output with enhanced tonal expression. Images are extremely durable while colour is predictable and consistent. Prints exit almost dry with a finish that is resistant to damage through scratching and moisture exposure. The ink set incorporates both a photo and matte black to support imaging on a wide range of media types


Economic to Run with Flexible Media Support
The SureColor P8560D supports sheet sizes up to B0 and roll media up to 44-inch (1118mm) wide. It features a low running cost with reduced ink consumption and ultra-low power consumption. Ink cartridges can be ordered individually in a choice of 350ml or 700ml sizes to suit different operational and costs per print requirements. Wastage is minimised through the implementation of dedicated PK/MK ink lines, inkless-nozzle status monitoring and automatic nozzle replacement/masking. Consumable replacement is easy with everything loading from the front


The SC-P8560D has been designed to accept a wide range of roll and single sheet media. It supports stock as light as 80gsm and has a special straight path for heavy media including board. It will print borderless and features a high-speed auto-cutter that will cut an A1 sheet in just 2 seconds. Roll media is loaded automatically once placed on the spindle and the printer will automatically change between rolls when one runs out or an alternative type/size is selected. For users who work with a range of media, additional spindles can be ordered and the stock preloaded for rapid interchange. An inbuilt Roll Media Barcode Management system tracks consumption and facilitates automatic re-configuration upon loading. The second roll can be configured as an Auto Take Up for roll to roll production and there is an optional Flat Stacker that supports common sheet formats with sufficient capacity for up to 2 rolls of output.1


Easy to Install and Flexible to Operate
The SureColor P8560D incorporates high-speed networking with support for the latest addressing and security protocols. Designed to operate with standard Macintosh and Windows applications, it also support HP-GL/2 and RTL emulation for specialist applications. The printer features an ultra-compact design with all connections located on the right to enable operation against a wall or in a corner. The large 4.3" LCD touchscreen makes operation simple and for those who like to monitor their work the top panel incorporates a viewing panel with a lit platen. An integrated media bin ensures prints don’t get damaged on exit and is a pull-out drop-down design that is easy to deploy and stow. High-speed hardware based Adobe Postscript enables files to be printed directly from a USB key or from the desktop using a simple 'drag-n-drop' process with configurable settings. If operation involves extremely large files or workgroups then an optional 960GB SSD is recommended to improve efficiency while allowing for job spooling and direct instant reprints.1 2


This printer has been designed to provide reliable operation with extended durability. It is backed with a comprehensive on-site warranty that covers everything including the print head. Service is extendable up to a total of 5 years using optional CoverPlus. Little maintenance is required however with high print volumes an occasional clean is recommended using some inexpensive swabs that are available as a consumable. This model supports Cloud Solution PORT for remote web and app based operator monitoring along with enhanced Epson service support. 3


1 Borderless printing is supported on nominated print sizes only. When printing on board stocks the printer may need to be brought forward to allow space for media transport.

2 The HP-GL/2 & HP RTL implementation employed by different applications can vary. If this facility is important please contact Epson or one of our dealer partners to confirm compatibility and operational functionality prior to purchase.

3 When printers are installed, maintained and operated appropriately using Genuine Epson UltraChrome PRO6 ink then print heads are covered under warranty with free on-site replacement subject to conditions outlined in the Epson Warranty Statement. Cover can be extended through the purchase of optional Service Packs up to a maximum total of 5 years subject to the same conditions. Epson Cloud Solution PORT requires connection to a network with Internet access, activation of the integrated server agent and registration under the service.
