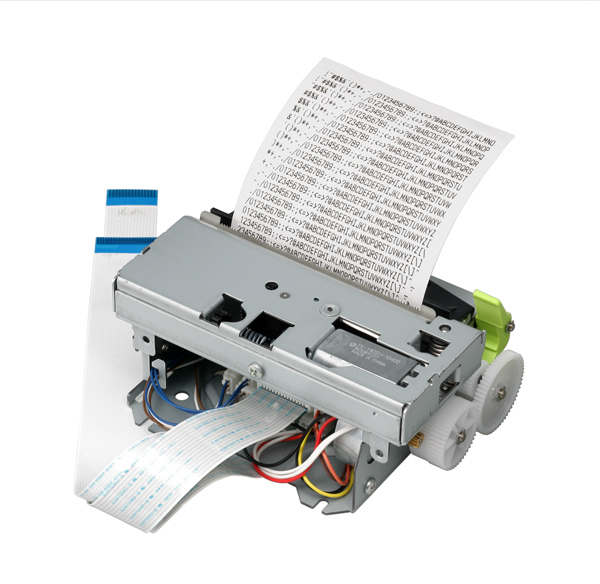

The M-T500II High Speed Direct Thermal Printer Mechanism.
Epson’s M-T500II Series printers offer the performance, high reliability and easy integration you need to get into production quickly and keep your customers satisfied for years to come.
With high speed and durability, the M-T500II series is well suited for high transaction and graphical applications such as ATMs, Kiosks and gaming.
Fast Printing
M-T500II Series can print both text and graphics at a speed up to 250 mm/s – 67% faster than its predecessor the M-T500.
High Performance and Reliability
M-T500II Series inherits the same high reliability as M-T500 Series; 37 million lines for MCBF. Incorporating years of industry leading, thermal printer experience, Epson’s durable, field-proven design ensures reliable performance, transaction after transaction, year after year.
Same size as M-T500 Series
M-T500II series has the same external dimensions as M-T500 series, so it is easy to replace the mechanism*.
Less Paper Jams with Paper Jam sensor
In addition to its improved structure to avoid paper jams, the newly added paper jam sensor; if used with BA-T500II series, prevents paper from winding around the paper feed rollers before it occurs.
BA-T500II Series (Controller Board)
Smaller size: The BA-T500II Series’ external size is half that of its predecessor the BA-T500, making it more compact for installation.
Optimum Performance
The circuitry and firmware is specifically designed for the M-T500II series, to provide optimum performance. The commands are upward compatible, so you can replace an existing controller board without changing the current application program. Furthermore, more features are added such as functions to acquire the paper jam sensor’s status, and to stop printing automatically when the sensor detects abnormality. A new interface; Ethernet is also added.
Wide Variety of Hardware and Software for Your System Configuration
PS-180 (Power Supply Unit)
| Input | 100 - 240 VAC |  |
| Output | 24 VDC, 2.0 A | |
| Plug | 3P power jack | |
| Length of DC cable | 1500 mm | |
| Safety standard | UL, CE marking, PSE, GS | |
NE-T500II (Paper Near End Sensor Unit)
The NE-T500II enables the paper near end function which can reduce time spent in replacing paper and operating costs.
* When replacing the mechanism, you will also need to replace the control board. with BA-T500II
Thermal Mini Printers |
|||||||||
| M- T512IIA |
M- T513IIA |
M- T522IIA |
M- T523IIA |
M- T532IIA |
M- T533IIA |
M- T542IIA |
M- T543IIA |
||
| PRINTING METHOD | Thermal line |
||||||||
| PAPER PATH | Straight | Separate | Straight | Separate | Straight | Separate | Straight | Separate | |
| RESOLUTION | 203 dpi |
||||||||
| PRINT SPEED | Max. 250 mm/s |
||||||||
| PAPER WIDTH | 57.5 ± 0.5 mm | 59.5 ± 0.5 mm | 79.5 ± 0.5 mm | 82.5 ± 0.5 mm | |||||
| MAX ROLL DIA. | Max. 254 mm |
||||||||
| PAPER THICKNESS | 0.056 to 0.150 mm |
0.056 to 0.096 mm |
0.056 to 0.150 mm |
0.056 to 0.096 mm |
0.056 to 0.150 mm |
0.056 to 0.096 mm |
0.056 to 0.150 mm |
0.056 to 0.096 mm |
|
| POWER | 24 VDC ± 2.4 V |
||||||||
| POWER CONSUMPTION | Approx. 2.2 A (mean current) | Approx. 3.0 A (mean current) | |||||||
| OPERATING TEMPERATURE | -20 to 70°C (Print quality is guaranteed from 5 to 50°C) |
||||||||
| OPERATING HUMIDITY | 10 to 80 % |
||||||||
| MCBF | 37,000,000 lines |
||||||||
| PRINTER LIFE | Mechanism : 15,000,000 lines, Thermal head : 100 km |
||||||||
| RELIABILITY OF CUTTER | 1,000,000 cuts (750,000 cuts when 30°C or above, and 60 %RH or above) |
||||||||
| OVERALL DIMENSIONS | 102.9 (W) × 91.9 (D) × 57.5 (H) mm | 126.9mm (W) × 91.9mm (D) × 57.5mm (H) |
126.9mm (W) × 94.9mm (D) × 57.5mm (H) |
126.9mm (W) × 91.9mm (D) × 57.5mm (H) |
126.9mm (W) × 94.9mm (D) × 57.5mm (H) |
||||
| WEIGHT | Approx. 450 g | Approx. 510 g | Approx. 540 g | Approx. 510 g | Approx. 540 g | ||||
| AUTOCUTTER | Scissors-type autocutter Mounted |
||||||||
| POWER SUPPLY | PS-180 (option) |
||||||||
| BLACK MARK DETECTOR | Option |
||||||||
| PAPER JAM DETECTOR | Standard | Option | Standard | Option | Standard | Option | Standard | Option | |
dpi: dots per 25.4 mm (dots per inch) |
|||||||||
| BA-T500IIS | BA-T500IIP | BA-T500IIU | BA-T500IIE | ||||||
| SUPPORTED PRINTER | M-T500II Series |
||||||||
| PRINTING CHARACTER | Text (Europe Symbol available), Bar code, Graphics |
||||||||
| PRINT FONT | ANK, JIS X0208-90, GB18030-80, BIG5, KSC-5601C |
||||||||
| FONT | ANK FontA: 12 24, Font B: 9 17, Kanji FontA: 24 24, FontB(JIS/KSC): 16 16 |
||||||||
| COLUMN CAPACITY | M-T512II, M-T513II (Paper Width : 57.5mm) ANK FontA : 36 / ANK Font B : 48 M-T522II, M-T523II (Paper Width : 59.5mm) ANK FontA : 37 / ANK Font B : 49 M-T532II, M-T533II (Paper Width : 79.5mm) ANK FontA : 48 / ANK Font B : 64 M-T542II, M-T543II (Paper Width : 82.5mm) ANK FontA : 53 / ANK Font B : 71 |
||||||||
| CHARACTER SIZE | FontA : 1.25 (W) 3.0 (H) mm / FontB : 0.88 (W) 2.13 (H) mm |
||||||||
| CHARACTER SET | 95 Alphanumeric, 65 International, 128 43 Graphics |
||||||||
| DATA BUFFER | 4 KB |
||||||||
| BARCODE TYPE | UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), ITF, CODE39, CODABAR,CODE93, CODE128, GS1-128, GS1-DataBar Two-dimensional code : PDF417, QR Code, MaxiCode, Composite Symbology |
||||||||
| INTERFACE | RS-232 | IEEE 1284 | USB 2.0 | Ethernet | |||||
| OPERATING TEMPERATURE | -20 to 60°C |
||||||||
| OPERATING HUMIDITY | 10 to 80 % |
||||||||
| OPERATING VOLTAGE | 24 VDC ± 2.4 V |
||||||||
| OVERALL DIMENSIONS | 80.0mm (W) × 80.0mm (D) × 22.0mm (H) |
||||||||
| WEIGHT | Approx. 65 g | Approx. 80 g | Approx. 60 g | Approx. 140 g | |||||
