| PRODUCT NAME |

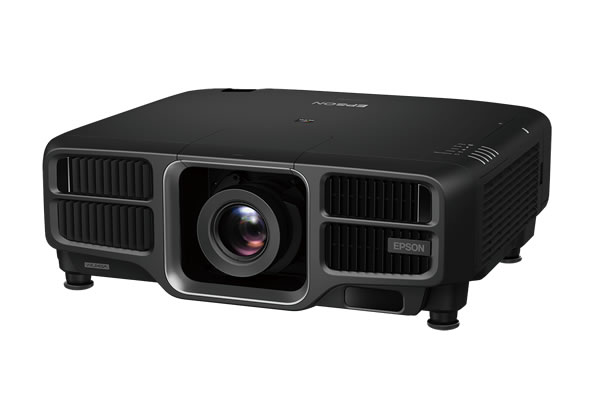

Epson EB-L1495UNL |
| PRODUCT CODE |
V11HA16853 |
| WHAT'S IN THE BOX |
| |
EB-L1495UNL Projector, 3m 10A Power Cable, Quick Start Guide, Product Manual, Remote Control, 2 x AA Batteries, Cable Cover, HDMI Cable clamp, Warranty card, Registration Card |
| TECHNOLOGY |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
1.03-inch (D10) |
| OPTICAL |
| Zoom |
1 - 1.61 (Optical) |
| Screen Size (Standard Lens) |
60" to 1000" [1.99m to 34.43m] (Zoom: Wide)
60" to 1000" [3.26m to 55.63m] (Zoom: Tele) |
| Projection Distance (Standard Lens) |
100" screen 3.37 m - 5.49 m |
| Throw Ratio |
1.57 (Zoom:Wide), 2.56 (Zoom:Tele) |
| Projection Lens F Number |
1.8 - 2.3 |
| Projection Lens Focal Length |
36.00mm - 57.35mm |
| Focus Method |
Powered |
| IMAGE |
| Colour Light Output |
9,000 Lumens |
| White Light Output |
9,000 Lumens |
| Resolution |
WUXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
2,500,000:1 |
| Light Source |
Laser Diode |
| LD Input Power |
450W |
| Keystone Correction (Standard Lens) |
Vertical: ±45°
Horizontal ±30° |
| Lens Shift (Standard Lens) |
Vertical: ±60% (Powered)
Horizontal: ±18% (Powered) |
| CONNECTIVITY |
| Input: Video |
1 x 5BNC |
| Input: Computer |
1 x D-sub 15-Pin (RGB) |
| Input: Digital |
1 x HDMI, 1 x DVI-D, HDBaseT |
| Input: SDI |
1 x BNC |
| Input: Audio |
3 x Stereo mini |
| Input: Control |
1 x RS232c, 1 x Stereo mini-jack (Remote) |
| Input: Network I/O |
1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit) |
| Input: HDBaseT |
1x RJ45 |
| Wireless Connectivity |
Optional |
| Output: Video |
1 x Monitor Out (via D-sub 15-pin) |
| Output: Audio |
1 x Stereo mini |
| ADVANCED FEATURES |
| EPSON Projector Management (Network & Control) |
Yes |
| EPSON iProjection (Multi-PC Projection) |
Yes |
| EPSON Professional Tool |
Yes |
| Remote Access Camera |
Yes |
| Wireless LAN |
Optional |
| 4K Enhancement |
Yes |
| Lens Position Memory |
Yes (10 positions) |
| Split Screen |
Yes |
| Edge Blending |
Yes |
| Curved Screen Projection |
Yes |
| Corner Wall Projection |
Yes |
| Frame Interpolation |
Yes |
| 360 Degrees Projection |
Yes |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington®-style lock provision
Wireless LAN Unit Lock
Security cable hole |
| Colour Modes |
Dynamic
Presentation
Cinema
BT.709
Natural
DICOM SIM
Multi-Projection |
| GENERAL |
| Dimensions D x W x H (Including Feet) |
492 x 586 x 211 mm |
| Weight (Including ELPLM15 Lens) |
23.7 kg |
| Projector Warranty |
5 Years* |
| Power Consumption: LD On |
626W |
| Power Consumption: Standby |
2.0W |
| Noise Level |
Normal/Quiet: 37/30 dB |
| |
|
| *Or 20,000 hours, whichever comes first. |
|
