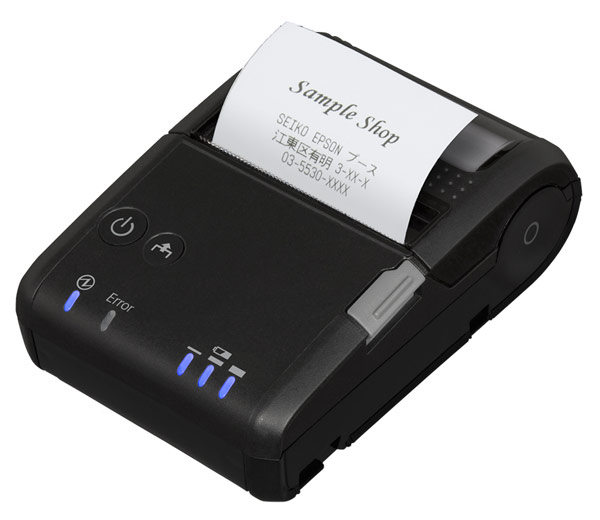

Back catalogue – Epson TM-P20

  • Compatible with iOS, Android and Windows mobile devices
  • Ultra compact and lightweight
  • Best-in-class operational battery life for ultra-compact printers of up to 8 hours
  • Highest printing speed in its class of up to 100 mm/second
  • Easy setting with TM-Printer Utility
  • Fast NFC pairing technology
  • Supports 802.11 a/b/g/n with 2.4 GHz / 5 GHz compatibility and Bluetooth® 3.0 (EDR supported)
  • 6.5' drop rating; IP54 ready with padded case
  • Paper-saving options up to 23%
PRINTER
Model Name TM-P20
Print Method Thermal line printing
Print Font Font A 12 x 24, Font B 9 x 24, Font C 9 x 17, Font D 10 x 24, Font E 8 x 16
Column Capacity (columns) 58mm paper, Font A/B/C/D/E, 32/42/42/38/48 columns
Character Size (mm) 1.5 x 3.0 / 1.12 x 3.0 / 1.12 x 2.1/ 1.25 x 3 / 1.0 x 2mm (W x H)
Character Set 95 Alphanumeric, 18 International, 128 × 43 Graphic
UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, ITF (Interleaved 2 of 5), Codabar (NW-7), Code 39, Code 93, Code 128, GS1-128 (UCC/EAN-128), GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded, 2D symbol, PDF417, Datamatrix, QR Code, Maxi Code, Composite Aztec
Character Per Inch 32/42/38/48 cpi
Print Speed (max.) Receipt mode 100mm/sec
Resolution 203 DPI x 203 DPI
Paper width (mm) 58mm width
Paper Diameter (max.) 40.4mm
Reliability 10 million printing lines
GENERAL INFORMATION
Interfaces 802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) or Bluetooth 3.0 (EDR supported)
Supported Mobile Operating Systems iOS, Android and Windows (Security Level WEP, WPA, WPA2-Enterprise)
Cutter Manual
Audible alert Programmable buzzer
Sensors Paper end, cover open, BM sensor
LED Indicators Battery charge level, power status, error condition
Software TM-P20 Utility, EpsonNet Config, EpsonNet Simple Viewer, TM-P20 Remote Configuration Tool, TM Bluetooth Connector, Built-In Configuration Page
Power Custom Lithium-Ion battery pack, AC adapter C
Battery Life Up to 6 hours with WiFi, up to 8 hours with Bluetooth model
Operating Temperature 10 to 50˚ C Bluetooth model
0 to 50˚ C WiFi Model
Drop rating 6.54 feet (2m)
Overall Dimensions (W x D x H) 79.0 x 119.8 x 43 mm
Weight (Approx) Receipt version: 228g with battery
Colour Epson Black (EBCK)
What's in the box P20, Battery, Printer charger, AC-adapter -Type C, AC cable, USB cable, Belt clip, Roll paper (for checking initial movement of printer), CR-ROM, Set-up guide
Warranty Standard two year RTB warranty
Option Battery (OT-BY20), Battery Spacer (OT-BS20), Charger/Cradle (OT-SC20), Padded Case (OT-PC20)
