Back catalogue – Epson TM-T70-i Intelligent Printer

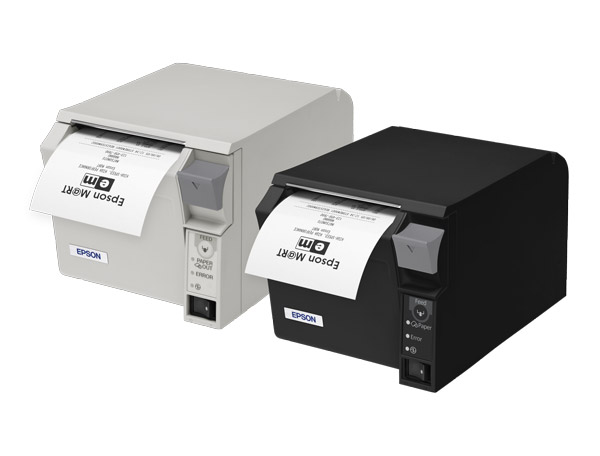

TM-T70-i Intelligent POS Printer
The Epson TM-T70-i provides users with a straightforward and elegant printing solution, with no need for drivers. Ideal for use with tablet PCs or mobile phones, the TM-T70-i is simple to use and maintain, with the ability to print from any device running an HTML 5 compatible web browser.
In addition, the TM-T70-i has controls and paper loading at the front of the device, as well as a splash-proof housing, making it ideal for mounting under counters.
KEY FEATURES- Supports printing from virtually any mobile / tablet device
- Print via browsers : Print directly from HTML 5 browsers
- No drivers needed : No drivers to install or update
- Enables Cloud services without the need for legacy POS integration
- Multi peripheral connectivity with up to 4 USB ports and 1 serial port
- Controls peripherals from any mobile / tablet device
- XML compatible : responds to web application commands
- Fast print speed up to 170mm/sec and features print options to reduce paper usage
- Three-year warranty
Thermal Receipt Printers |
||
| ALL THE FEATURES YOU NEED | ||
|---|---|---|
|
||
| PRINTER | ||
| MODEL NAME | TM-T70-i | |
| PRINT METHOD | Thermal line printing | |
| PRINT FONT | 9 x 17 / 12 x 24 | |
| COLUMN CAPACITY | 42 / 56 | |
| CHARACTER SIZE (mm) | 1.1(W) x 2.1(H) / 1.5(W) x 3(H)mm | |
| CHARACTER SET | 95 Alphanumeric, 48 International, 128 x 11Graphic | |
| PRINT SPEED | 170mm/sec | |
| DDATA BUFFER | 4K or 45 Bytes selectable | |
| NV RAM | 256KB | |
| PAPER DIMENSIONS | Roll paper: 79.5 ± 0.5mm x 93mm | |
| PAPER THICKNESS | Thermal roll paper: 0.06 to 0.07mm | |
| PAPER ROLL | Drop in | |
| AUTO CUTTER | Partial cut | |
| SENSORS | Paper end and Paper near end | |
| OPERATING TEMPERATURE | 5° to 45° C | |
| RELIABILITY | ||
| MTBF | 360,000 hours (Printer) / 180,000 (Intelligent Interface) | |
| MCBF | 52 million lines | |
| AUTO CUTTER | 1.5 million cuts | |
| GENERAL INFORMATION | ||
| PROCESSOR | ARM9 Processor (400Mhz) | |
| SYSTEM MEMORY | 256MB | |
| OS | Embedded Linux | |
| SOFTWARE | WebPOS Configuration, ePOS-Device, Server Direct Print | |
| INTERFACE | Ethernet Inteface (100 Base-TX / 10 Base-T), USB 2.0 Type A (x4), USB 2.0 Micro-AB, Serial x 1 (D-Sub 9 Pin) | |
| WEB SERVICE | ePOS-Print Service | |
| WEB SERVER | Apache HTTP Server | |
| UTILITY | Epson TMNet WebConfig – Register devices to be controlled using ePOS-Device – Register settings for Web contents – Setting for the server direct print and status notifications – Network settings – Various management functions |
|
| POWER | 24 VDC ± 7% | |
| POWER SUPPLY | Dedicated AC-DC supply - In: AC100-240V / Out: DC24V (for TM), DC5V (for intelligent board) | |
| CONTROL OF OTHER EPSON PRINTERS | Supported printers (Ethernet/Wireless) up to 20 units: TM-T88V, TM-T70II, TM-T70, TM-T90, TM-L90, TM-T82II, TM-P60II, TM-P80 | |
| SUPPORTED DEVICES | POS printer, Cash drawer (Drawer supported by the TM-T70), Customer display (DM-D110 USB),Standard HID devices (Barcode Scanner, Keyboard), Serial device | |
| SAFETY STANDARDS | EMI AS / NZS CISPR22 class A | |
| D.K.D FUNCTION | 2 drivers | |
| OVERALL DIMENSIONS | 125mm (W) x 194mm (D) x 114mm (H) | |
| WEIGHT | 1.8 kg | |
| COLOUR | Epson Black / Epson Cool White | |
| WARRANTY | 3 year RTB warranty | |
| OPTIONS | Customer Display (DM-D110) USB i/f | |
|
|
|
|
|
|
|
|
