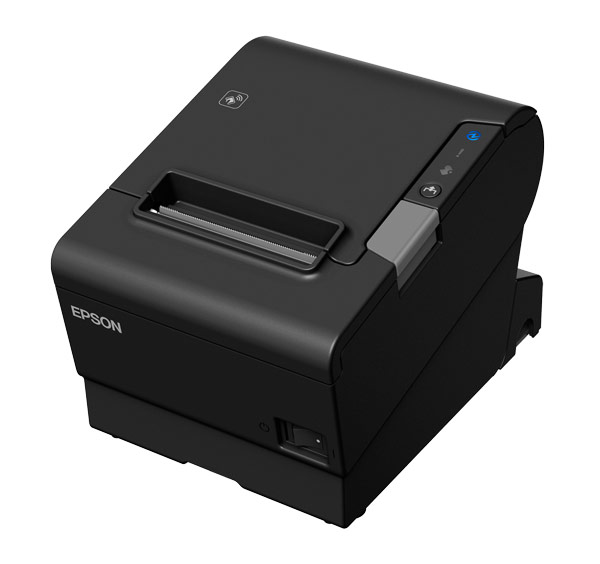

Epson TM-T88VI-iHUB

Product Code:

C31CE94791
(Epson Global Code: C31CE94791)

Where To Buy

Description:

Revolutionary receipt printer with advanced connectivity and cloud support

The TM-T88VI-iHub adds intelligent hub functionality to Epson's new state-of-the-art receipt printer, designed to work with both traditional PC-based POS systems and increasingly popular web and tablet solutions. The range of peripheral and wireless connectivity options make it ideal for shop, bar and restaurant owners who want to develop effective new ways of interacting with customers.

KEY FEATURES & BENEFITS

Versatile – The versatile TM-T88VI-iHub offers retailers, restaurants, bars and other commercial businesses the chance to explore web and mobile POS solutions without losing the functionality of a traditional PC-based system, as both can be run in parallel. This co-existence means users can migrate at the speed they want, run both systems at once, or just stick to a traditional setup.
High performance and low running costs – As well as flexibility, the TM-T88VI-iHub gives outstanding performance, with print speeds of up to 350mm/s, and excellent reliability. A backwards paper-feeding function helps save paper without affecting performance, reducing running costs and paper waste.
Flexible – The TM-T88VI-iHub offers the user a wide range of connectivity options, including four USB-A connections, one of which can charge a tablet, as well as USB-B, serial and Wi-Fi. This allows the connection of a wide range of peripherals, including barcode scanners, displays and mobile devices.
Flexible connectivity – Server Direct Print functionality allows the TM-T88VI iHub to print direct from a web server. It also supports beacons, to help mobile devices identify the nearest printer, making it ideal for POS environments with multiple printer installations, while NFC support makes it easy to pair tablets, smartphones and other mobile devices.

For more information go to http://www.epson.co.nz

At a Glance

Videos

Epson TM-T88VI

Features

KEY FEATURES & BENEFITS

Versatile – The versatile TM-T88VI-iHub offers retailers, restaurants, bars and other commercial businesses the chance to explore web and mobile POS solutions without losing the functionality of a traditional PC-based system, as both can be run in parallel. This co-existence means users can migrate at the speed they want, run both systems at once, or just stick to a traditional setup.
High performance and low running costs – As well as flexibility, the TM-T88VI-iHub gives outstanding performance, with print speeds of up to 350mm/s, and excellent reliability. A backwards paper-feeding function helps save paper without affecting performance, reducing running costs and paper waste.
Flexible – The TM-T88VI-iHub offers the user a wide range of connectivity options, including four USB-A connections, one of which can charge a tablet, as well as USB-B, serial and Wi-Fi. This allows the connection of a wide range of peripherals, including barcode scanners, displays and mobile devices.
Flexible connectivity – Server Direct Print functionality allows the TM-T88VI iHub to print direct from a web server. It also supports beacons, to help mobile devices identify the nearest printer, making it ideal for POS environments with multiple printer installations, while NFC support makes it easy to pair tablets, smartphones and other mobile devices.

Specifications

Product Specifications

Learn More

PRINTER
MODEL NAME	TM-T88VI-iHUB
PRINTING TECHNOLOGY	Thermal line printing
PRINT RESOLUTION	180 dpi
PRINT SPEED	350 mm/sec (max), 300mm/sec (default)
PRINT FONTS	Font A (default): 12 x 24 Font B: 9 x 17
COLUMN CAPACITY	80mm: 42/48/56 columns 58mm model: 30/36/40 columns
CHARACTER SIZE (mm)	Font A (default): 12 x 24 Font B: 9 x 17
CHARACTER SET	95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page). Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean
BARCODE	UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited
MEDIA HANDLING
THICKNESS	48 – 80 µm
MEDIA DIMENSIONS	80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13" ± 0.02” x 3.27") 58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26" ± 0.02” x 3.27")
STANDARD CONNECTIVITY	Built-in USB, Serial, Ethernet (10/100Base-T/TX) Connector Type: USB Type A Connector x1, USB Type B Connector x4, RJ45 x1, DB9 Male x1, DKx1, 3 Pin Mini Din Female X1 Wireless (Requires USB wireless dongle) OT-WL05 (802.11 a/b/g/n, 2.4G/5G) or OT-WL02 (802.11 b/g/n, 2.4G) Beacon (Requires Bluetooth Low Energy dongle) Beacon dongle3 (Epson-approved dongle: Laird model BT820)
PRINTER DISCOVERY	NFC (Near Field Communication), Simple AP (wireless network)
COMMUNICATION PROTOCOLS	ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless)
PRINTING FROM A MOBILE DEVICE	WiFi (802.11): iOS, Android™ and Windows^® operating systems Bluetooth: iOS, Android and Windows
GENERAL
OPERATING SYSTEMS	Microsoft^® Windows (APD, OPOS, OPOS for .NET, JavaPOS) Mac OS X^® Linux (CUPS, JavaPOS) Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK)
DIMENSIONS	145 x 195 x 148mm (W x D x H)
WEIGHT	1.6kg
SECURITY	Security: WEP, WPA-PSK, WPA2-PSK/EAP WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS Port open/close setting IP address filtering
SAFETY APPROVALS	RCM: AS/NZS CISPR 32 Class A
CASE COLOR	Epson Black (EBCK)
SERVER SYSTEMS
TYPE	Type: Embedded CPU:Arm-Cortex-A5 384MHz Embedded Linux: lighttpd
RELIABILITY
MTBF	180,000 hours
MCBF	70,000,000 lines
THERMAL HEAD LIFE	200km
AUTO CUTTER LIFE	3 million cuts
WARRANTY	48 months
DATA BUFFER
RECEIVE	45 bytes or 4KB, selectable
USER-DEFINED	12KB
MACRO	2KB
NV GRAPHICS	384KB
DOWNLOAD GRAPHICS AREA	208KB
NV USER	1KB
WEB CONTENT AREA	100MB
SOFTWARE INCLUDED	ePOS-Print (XML over HTTP) ePOS-Device ePOS-Display WebConfig Server Collaboration: Server Direct Print and XML base printing PHP/Sqlite3 Backup/Restore: TM Utility (Win)
OPTIONS	Power supply cover PS-180 AC adapter one wall hanging bracket affixing tape and Connect-It interfaces
POWER
POWER SUPPLY VOLTAGE	24VDC ± 7%
POWER CONSUMPTION	Operating: 27.4W Stand-by: 1.5W
POWER SOURCE	24VDC ± 7%
CONFIG BUILDS
C31CE94791	TM-T88VI-iHUB
COVERPLUS SERVICE PACK (OPTIONAL)
1YWT88VI-iHUB	CoverPlus 1 year Service Pack TM-T88VI-iHUB

Epson is the registered trademark of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
