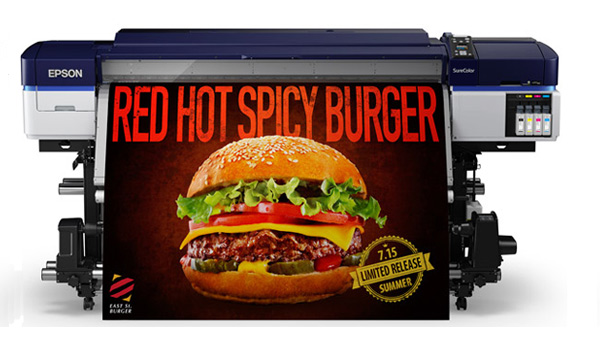

Back catalogue – SureColor S40600 - 64"
- Superior Performance – produce billboard prints at speeds up to 29.4 m2/hr
- Superior Media Support – supports paper, canvas, vinyl and film stocks, in widths up to 1626 mm and thicknesses up to 1 mm, in rolls up to 45 kg and 250 mm in diameter
- Superior Print Quality – latest PrecisionCore printhead, new UltraChrome GS3 ink, improved MicroWeave and LUT, self-agitating ink lines, improved paper path with upgraded feed management and a new Advanced Auto Tension Control System
- Superior Integration – compact design with flexible networking, suits installation in a wide variety of operational environments, runs off a standard 240 V power supply, and can be driven by variety of 3rd party applications
- Simpler and easier to use – can be loaded by a single operator with Auto Media Set-Up and Skew Correction, new see-through platen cover with integrated lighting, upgraded control panel and new Epson Control Dashboard management software
- Reduced maintenance – new self cleaning printhead and air circulation system with mist extraction
- Reduced production costs – uses new low cost 700 ml ink cartridges with reduced ink and power consumption, ships with an Integrated Auto Take-Up, supports remote management, remote status and error reporting
- Increased durability – features a strengthened chassis and a new printhead guard, backed by a comprehensive 1 year warranty with optional cover that can be extended up to a total of seven years
| SIZE | |||
|---|---|---|---|
| Max Media Width | 64 inch | ||
| PRINT TECHNOLOGY | |||
| Print Head | PrecisionCore TFP with VSDT & Integrated Headguard | ||
| Print Operation | Auto Head Alignment, Nozzle Check, Head-Cleaning, Media Setting & Skew Control | ||
| Print Modes | Uni & Bi-directional | ||
| Nozzle Configuration | 360 x 2 per colour | ||
| Maximum resolution | 1440dpi x 1440dpi | ||
| Minimum Ink Droplet Size | 4.2pl | ||
| INK TECHNOLOGY | |||
| Ink Type | Pigment based Solvent | ||
| Ink Family | Epson Ultrachrome® GS3 | ||
| Colours | C, M, Y, K (Choice of Standard and 3M MCS inks) | ||
| Cartridge Capacity | 4 x 700ml | ||
| PERFORMANCE | |||
| Draft | 58.4m2/hr | (360 x 720dpi 1 pass) | |
| Billboard Production | 29.4m²/hr | (720 x 720dpi 2 pass) | |
| Banner Production | 16.6m²/hr | (720 x 720dpi 4 pass) | |
| Vinyl Production | 10.5m²/hr | (720 x 1440dpi 6 pass) | |
| Film Production | 3.5m²/hr | (1440 x 1440dpi 16 pass) | |
| Figures are maximum print speeds. They do not include provision for media loading, image processing, file transmission, print drying or post print production. Not all print modes are supported by all media and /or RIP software with individual results subject to variation due to a variety of operational, environmental and image specific factors. | |||
| MEDIA SUPPORT | |||
| Input Format | Single Roll, 2” or 3” core, 250mm max outer diameter & 45kg max weight | ||
| Sizing | 300 to 1626mm wide, 500mm min length, 1mm max thickness | ||
| Minimum Print Margins | 5 mm left & right (10mm with guides) | ||
| Platen Gap | 1.6/2.0/2.5mm | ||
| Heater Settings | 30° to 50° C Pre & Platen, 30° to 55° C After (all three heaters individually adjustable) | ||
| Output Format | Single sheet (manual cut) Roll (integrated ATU supports 2" or 3" core with 200mm max outer diameter) |
||
| OPERATION | |||
| Control Software | Epson Edge Dashboard, Epson Communication Driver, Epson LFP Remote Panel 2, Epson NetConfig, Epson NetSetup, Epson NetPrint, Epson Software Updater | ||
| Control Panel | 2.7” Colour LCD | ||
| RIP Compatibility | Supplied with Epson Edge Print and supports a wide range of 3rd party applications | ||
| Interface | High Speed USB 2.0 & Ethernet 100Base-T/1000Base-T | ||
| Memory | Main: 512 MB, Network: 128 MB | ||
| Operational Temp | 15° to 35° C (20-32° C recommended) | ||
| Operational Humidity | 20 to 80% (40 to 60% recommended) | ||
| Typical Energy Use | 480W Operating / 330W Ready/ 12W Sleep | ||
| Power Supply | 2 x 100-240V 5A 50-60 Hz AC, 2640W Max Peak | ||
| Operating Noise | 59dB | ||
| PHYSICAL | |||
| Printer Dimensions & Weight | 2,620 x 1,338 x 880 mm (WxHxD), 279Kg | ||
| Recommended Operational Space | 3,620 x 1,771 x 2,740 mm | ||
| Packaging Details (WxHxD) | 1 x Head Unit | 3,170 x 1021 x 1100 mm, 406Kg | |
| 1 x Media Supply System | 3,100 x 607 x 1064 mm, 82Kg | ||
| 1 x Starter Ink & Media Pack | 1,550 x 350 x 350 mm, 20Kg (approx.) | ||
| (Optional) Print Drying System | 1,987 x 232 x 363 mm, 15Kg | ||
| WHAT'S IN THE BOX | |||
| Printer, Media Supply System (with Stand, Feed and Auto Take-Up), 1 x user maintenance kit, 1 x waste tank, 4 x cleaning carts, 1 x ink set (4 x 700ml), 1 x roll of Epson Poster Paper, power cable, and set-up guide. Utility software and user manuals provided on CD. RIP software provided on DVD.* *An internet connection will be required during installation to enable registration, update of disk based software and download of additional utility software. A significant proportion of the included ink and cleaning liquid will be used during the set-up process to clean and prime ink lines while a small amount of media will be required to undertake print testing and confirm correct operation. |
|||
| CONFIGURATION OPTIONS | |||
| SCS406001YR | 1 Yr On-Site Warranty | ||
| SCS406003YR | 1 Yr On-Site Wty + 2Yr On-Site CoverPlus (3Yrs Total Cover)** | ||
| SCS406005YR | 1 Yr On-Site Wty + 2 x 2Yr On-Site CoverPlus (5Yrs Total Cover)** | ||
| Epson Warranty Details | |||
| OPTIONAL ACCESSORIES | |||
| C12C890751 | Print Drying System | ||
| 1YWSCS40600 | 1 Year On-Site CoverPlus Service Pack** | ||
| 2YWSCS40600 | 2 Year On-Site CoverPlus Service Pack** | ||
|
** Epson CoverPlus Service Packs enable basic warranty cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia and New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of warranty upgrades and on-site service. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns.
|
|||
| RELATED PRODUCTS | |||
| SC-S60600 | Medium to High Volume Production Model | ||
| SC-S60660L | High to Very High Volume Production Model | ||
| SC-S80600 | Medium Volume High Quality Production Model | ||
| SC-S80660L | High Volume High Quality Production Model | ||
