SD-10 Spectrophotometer In stock
The SD-10 Spectrometer is an ultra-compact high-precision spectrophotometer. Small in size but big in big in features it is designed to be your constant print companion. It lets you determine the exact colour of a test item and compare it with another or with a known standard such as Pantone®. You can scan a series of items and compare the colours as a group. Data can be stored for subsequent recall, analysis and export. Small enough to fit in a jacket pocket, it has a high capacity lithium ion battery so you can take it wherever you need to be; out with a customer or a supplier, over with a designer or down on the production floor. Most importantly the readings you take are accurate and consistent.
For over 25 years Epson has maintained a leadership position in digital colour. From our first proofing printers to our latest high speed production machines, our focus has always been on precision and gamut. When it comes to print quality and consistency Epson has become the standard against which others are measured. Whether you produce graphics or posters, photos or fine art, signs, packaging or fabric, if you want superior imaging then we have the answer. As many are aware, Epson is not only a leader in print but also optics. We have used our optical experience to develop a product to help optimise your production process and ensure you get exactly the output you want with exactly the colour you need.
The SD-10 is an ultra-compact high-precision spectrophotometer. Small in size but big in features, it is designed to be your constant print companion. It lets you determine the exact colour of a test item and compare it with another or with a known standard such as Pantone®. You can scan a series of items and compare the colours as a group. Data can be stored for subsequent recall, analysis and export. Small enough to fit in a jacket pocket, it has a high capacity lithium ion battery so you can take it wherever you need to be; out with a customer or a supplier, over with a designer or down on the production floor. Most importantly the readings you take are accurate and consistent.
| IMAGING TECHNOLOGY | ||
|---|---|---|
| Sensor | Custom MEMS Fabry-Perot type with tuneable filter | |
| Spectral Range | 400~700 nm | |
| Sampling | 20 nm actual, 10 nm via software interpolation | |
| Aperture | 7.6 mm | |

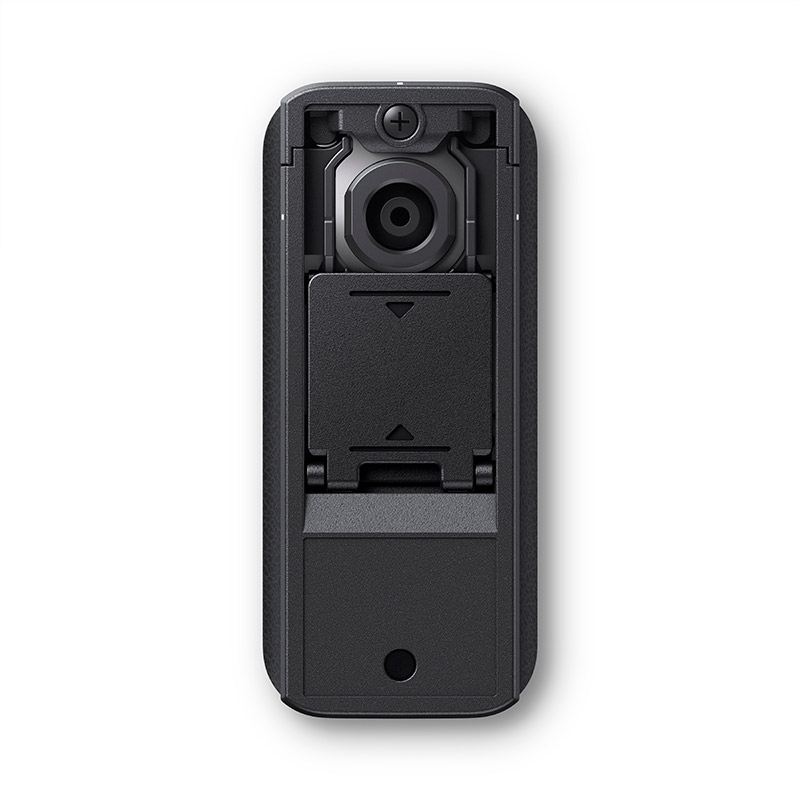

| Protection | Integrated lens cover | |
| INTEGRATED LIGHT SOURCE | ||
| Type | LED multi-spectrum (including UV) | |
| Arrangement | Annular | |
| Conditions | Off/On (45oC) | |
| PERFORMANCE | ||
| Measurement Frequency | 13 per second | |
| Max Scan Length | 400 mm | |
| Accuracy | 0.4 or less (∆E0 average @ 23oC) | |
| APPLICATION | ||
| Compliance (ISO 13655:2017) |
M0 including UV light component M1e D50 including UV light component M2 without UV |
|
| Calibration | Automatic with integrated white test tile | |
| Modes |
Spot, spot comparison, group scanning & comparison |
|
| Integrated Display |
Shows LAB values with delta |
|
| Added Features |
Data stored with time and date stamps |
|
| OPERATION | ||

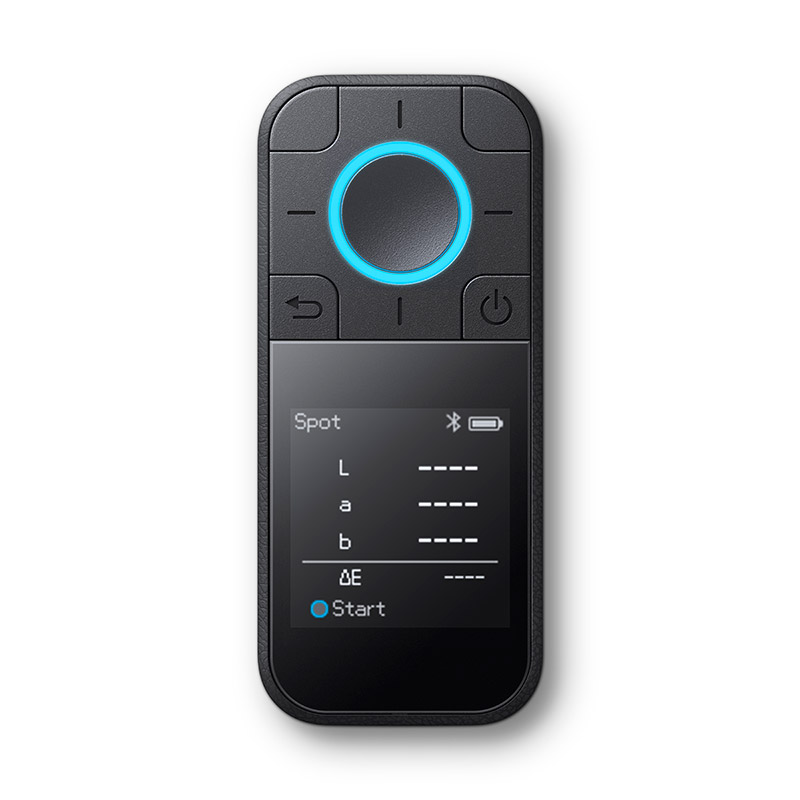

| Control Panel | Colour LCD with push button control | |
| Interface | Bluetooth & USB2.0 full-speed (type C connector) |
 |
| Battery | 1860 mAh lithium ion (charges via USB) | |
| Memory | Short Term: Up to 500 readings Long Term: 100 readings |
|
| Software |  Epson Spectrometer app (Android/iOS, free download) Integrates with Epson Edge Print V4.1 or later |
|
| ENVIRONMENTAL | ||
| Operational Temp | 0° to 45° C (15-30° C recommended) | |
| Operational Humidity | 5% to 85% with no condensation (30-70% recommended) | |
| Storage | -20° to 60° C @5% to 85% humidity with no condensation | |
| Power | 5V @ 0.9A | |
| Physical Size |
35 x 80 x 80 mm (WxDxH), 190 g |
|
| Packaging |
169 x 163 x 93 mm (WxDxH), 678 g |
|
| WHAT'S IN THE BOX | ||
| Spectrophotometer, USB cable, carry case, hand strap and certification documentation
|
||
| CONFIGURATION OPTIONS* | ||
| B41CK17401 | SD-10 Spectrometer with 1Yr Warranty | |
| SD103YR | SD-10 Spectrometer with 1Yr Wty + 2Yr CoverPlus (3yr total cover) | |
| SD105YR | SD-10 Spectrometer with 1Yr Wty + 4Yr CoverPlus (5yr total cover) | |
|
* Epson CoverPlus enables service cover to be extended. One or more CoverPlus Packs can be ordered in conjunction with the various product configurations to extend cover by 1, 2, 3 and 4 year periods (total Warranty + CoverPlus cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. Limitations apply to both Warranty and CoverPlus with service potentially restricted or cancelled should equipment be used &/or stored inappropriately. For full details on coverage, terms and conditions please review the warranty and CoverPlus statements documented on this web-site. If you have any subsequent questions please contact Epson directly for clarification. |
||
