SureColor F3000
A3+ DTG/DTFilm Fabric and Merchandise Printer
| DIRECT TO GARMENT PRINTER | |
|---|---|
| PRODUCT NAME | SureColor F3000 |
| SIZE | |
|---|---|
| Max Print Area | 406x508mm (using optional Large Platen) |
| Form Factor | Floor Standing |
| PRINT TECHNOLOGY | |
|---|---|
| Print Head | Dual 2.6" PrecisionCore™ Micro TFP |
| Print Modes | Uni & Bi-directional |
| Configuration | Colour: 800 nozzles x 8 lines White: 800 nozzles x 10 lines |
| Max Resolution | 1200 x 1200dpi |
| Min Drop Size | 12.1pl |
| Features | Ink-less Auto Nozzle Status Monitoring Dual 34.5cm Fluff Collectors Self-washing Capping System Auto Fabric based Head Wiper Epson Precision Dot Technology Variable Sized Droplet Technology |
| INK SYSTEM | |
|---|---|
| Ink Family | Epson UltraChrome® DG |
| Ink Technology | Direct To Garment |
| Ink Formulation | All-Pigment |
| Loading | Bag based with tray loading |
| Capacity | 7 x 1.5L |
| Configuration | 5 Colour: CYMKWW + Ml |
| Features | Tray loading with no mechanical components Advanced Mist Extraction Multi-stage filter Automatic ink recirculation |
| PERFORMANCE | |
|---|---|
| Print Speed | Fast: 14s (Colour Only), 26s (White + Colour) Production: 21s (Colour Only), 40s (White + Colour) Quality: 26s (Colour Only), 47s (White + Colour) High Quality: 48s (Colour Only), 70s (White + Colour) |
 Figures are based on print speed only and refer to the image shown to the left printed in A4, in portrait orientation, in the nominated quality, and using Epson Garment Creator. The printer supports a range of print modes to suit different workflow, application, and quality requirements; customers are recommended to check with their dealer on which mode is appropriate to their individual need and the consequential speed that can be achieved. Print times will vary depending on a range of variables including the choice of colour set, image size/type/orientation, print mode, software selection, PC specification, network configuration, and environmental factors. Additional time will be required for garment pre-treatment, loading, flattening, unloading & fixing. |
|
| MEDIA SUPPORT | |
|---|---|
| Compatible Material | Best results achieved on material with a moderate to loose weave containing 50% or more cotton. Can however be used on a wide range of fabrics containing a mix of natural & man-made fibres. Contact Epson &/or an Epson Authorised Fabric dealer for further detail. |
| Max Thickness & Weight | 29.5mm (28.5 when using grip pads), 1.5kg per item |
| Max Print Area | Large Platen: 406 x 508mm Medium Grooved Platen: 356 x 406mm Small Platen: 254 x 305mm Extra Small Platen: 178 x 203mm Sleeve Platen: 102 x 102mm |
| OPERATION | |
|---|---|
| Features | 4.3” Colour Display with Touch Interface Warning Buzzer Optical Sensor with 5mm auto fine height adjustment Manual macro height adjustment with dial selector |
| Interface | Rear High Speed USB 2.0 & Ethernet 100Base-T/1000Base-T Front panel USB for file storage & uploading (FAT32 format) |
| Memory | 4 GB |
| Included Software (Windows) | Epson Communications Driver, EpsonNet Setup, EpsonNet Config & EpsonNet Print, Manual Package |
| Web downloads | Epson Garment Creator & Photoshop Plugin, Epson Edge Dashboard, Epson Device Admin & Firmware Updater, LFP Accounting Tool, Epson Garment Creator, Epson Edge Dashboard, Epson Firmware Updater |
| Web Utility | Epson Cloud Solution PORT (Activation requires enrollment in the Epson Total Solution program, connection of the printer to a network with Internet access and allowance for interactive data transfer.) |
| ENVIRONMENTAL | |
|---|---|
| Operational Temp | 10° ~ 35°C (15° ~ 25°C recommended) |
| Operational Humidity | 20 ~ 80% (40 ~ 60% recommended) with no condensation |
| Power Supply | 2 x 240 V, 50 Hz - 60 Hz AC, 3.2+1.4A |
| Recommended Install Space | 3.00 x 2.60 x 1.65m (WxDxH) |
| Power Consumption | 168W Operating, 111W Ready, 20W Sleep |
| Operating Noise | 51db |
| Dimensions (WxDxH) & Weight | 1712x1809x1336mm, 330Kg (Printer with Platen & ISS, no ink) |
| Operational Space (WxDxH) | 3.0 x 2.6 x 1.7m recommended |
| WHAT'S IN THE BOX | |
|---|---|
| Printer (mounted on stand), Ink Supply System (ISS), 1 x Re-usable Waste Ink Bottle, 1 x Medium Hanger Platen, 1 x Platen Grip Pad, 1 x Grip Pad Flattening Tool, 1 x Head Cleaning Kit, 1 x Maintenance Kit, Set 1.5L ink bags, 20L Cotton Pre-Treat, Power & USB cables, Utility software & User manual (CD) | |
| A proportion of the ink supplied with the system will be required to charge the ink lines and perform initial print tests; Epson recommends purchase of an additional ink set to enable full production. | |
| Packaging (WxDxH) | Printer: 2260x1830x1594mm, 450Kg Ink Set: 400x450x300mm, 40Kg |
| SYSTEM REQUIREMENTS | |
| A Personal Computer will be required for installation and operation of this printing system. The PC should have a minimum 2Ghz processor, 2GB or more memory (8GB recommended) and 32GB or more storage (SSD recommended for max performance), 1024x768 or higher res monitor, running 64bit Win 8.1 or Mac OS X/10.12 or higher. Web access will be required for installation, registration and software activation. Operation of Epson Total Solution will require that the printer be connected to a network with Internet access and the router configured for two way data exchange. A 3rd party Heat Press with adjustable temperature, pressure and timer will be required. Presses can be sourced from a number of suppliers in various sizes and formats. Please contact your dealer for options. Use of white ink and output on fabric with a high level of polyester, rayon or other man-made fibres requires material to be pre-treated prior to printing. Pre-treatment liquid can be applied manually (roller or spray) however for optimum results a pre-treatment machine is recommended. When using the USB direct print function files must be processed through Garment Creator first. |
|
| CONFIGURATION OPTIONS | |
|---|---|
| SCF30001Y | Printer with 1Yr CoverPlus On-Site Service |
| SCF30003Y | Printer with 3Yr CoverPlus On-Site Service |
| SCF30005Y | Printer with 5Yr CoverPlus On-Site Service |
| ADDITIONAL OPTIONS | |
|---|---|
| C12C936241 | Large Hanger Platen |
| C12C936261 | Medium Hanger Platen (1 supplied with each printer) |
| C12C933961 | Grooved Platen (for shirts with buttons or a zipper) |
| C12C936281 | Small Hanger Platen |
| C12C933951 | Extra Small Platen |
| C12C933971 | Sleeve Platen |
| SERVICE & SUPPORT | |
|---|---|
| This printer is covered by a 30 day warranty that covers parts and labour. It is supplied with additional CoverPlus that extends cover to a total of 1, 3 or 5 years. Customers who need 2 or 4 year cover should purchase an additional 1 year of CoverPlus. Customers who order their printer with 1 or 3 year CoverPlus may extend cover through the purchase of one or more CoverPlus Packs within 365 days of the original installation (total cover may not exceed 5 years). Limitations apply to the provision of Warranty and CoverPlus. Support is only provided for product supplied through Epson Australia or Epson New Zealand. The facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered and Epson’s network of Authorised Service partners. Service will be provided on-site at no charge for equipment located in major metropolitan areas with ready access. Regional locations and installations with difficult access may receive on-site service subject to imposition of a travelling/access charge. |
| IMPORTANT NOTES | |
|---|---|
| Epson Cloud Solution PORT is a secure cloud based service that is used to facilitate the provision of support on this model. Agreement to the terms of supply and registration under the program is required to enable fulfilment of CoverPlus. During operation the printer must remain connected to a network with Internet access via a router configured for two way data transfer. This model supports User Self Replacement of print heads. Operation requires Epson Total Solution and nomination of one or more staff members to perform the process. Staff should have a moderate level of technical skill and will be required to undertake training (this can generally be performed during the installation process). In the event that staff leave employment replacements will need to be nominated and undertake training (this may attract additional charges). Service may be restricted or limited if equipment is not installed in an appropriate environment, not appropriately maintained, be modified, used outside of specification &/or with non-Epson consumables. For further details on cover, terms and conditions please review the warranty section on this web-site. If you have additional questions please contact Epson directly. |
| Usage Conditions | |
|---|---|
| Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product. |
View or Download additional information
Find drivers, manuals and product setup for SureColor F3000.
Go to Driver Downloads

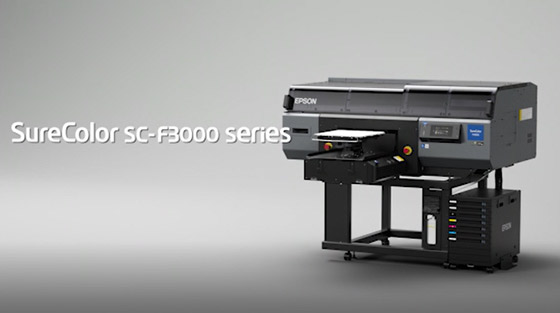

SureColor F3000 Overview
A breakdown of key product features and benefits
Epson Cloud Solution Port
A breakdown of Epson's innovative print production and control platform
