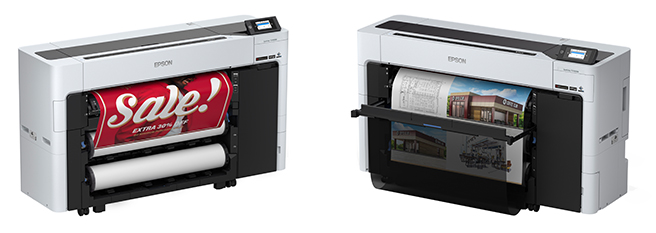

The SureColor T5760DM is a multifunction technical printer that combines an extremely compact footprint with flexible media handling, a high print speed and a large format scanner for print, scan and copy functionality. It is designed for companies who want to produce colour drawings, posters and POS material in sizes up to A0 quickly and efficiently. This model is particularly suited to construction, retail and print-4-pay applications. It uses 6 inks that come in large cost-effective cartridges with an additional Red to enhance the colour gamut. Integrated high-speed hardware-based Postscript enables fast and accurate image reproduction via drag-n-drop from the desktop or direct from a USB device. It features dual-roll support with automatic loading and exchange. The 2^nd roll can also able to be used as an Auto Take Up for Roll-To-Roll production with offline processing.

The SC-T5760DM incorporates Epson's latest PrecisionCore print head with ultra-fine nozzles and a small minimum drop size for outstanding image quality. The extra wide 2.64" print width and durable high-speed feed mechanism makes it perfect for high volume production. The new all-aqueous UltraChrome^® XD3 ink set is well suited to drawings, schematics, posters, POS and POP. The addition of Red ink enables an enhanced colour gamut while the inclusion of Matte and Photo Black ink (with dedicated lines for each) facilitate operation with a wider range of media. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Prints dry almost instantly to be water and scratch resistant.

This printer accepts single-sheet and roll-based stocks ranging from standard bond to premium presentation paper and even board. It is extremely cost-effective to run with low power consumption, low ink consumption and low wastage. Designed for business and retail environments, it features a small footprint and flat top. The printer is easy to operate with a large touch-panel display and all-front-loaded consumables. It ships with a suite of software that enables output from office and photo applications along with job costing and remote management. A 960GB SSD is included for efficient workgroup operation.

The advanced integrated scanner supports speeds up to 25.4cm/s. It feeds from the top with a flap that opens automatically when selecting either copy or scan mode. To ensure maximum productivity printing will continue while scanning is underway. Files can be stored and retrieved in a variety of formats from network, USB and SSD locations. It features a dual light source to ensure the best possible imaging, even on aged and creased documents. It also features an advanced CIS with RGB filters to accurately reproduce colour including fluorescent markings made with highlighter pens.

• Incredible performance – crisp, detailed, colourful prints with industry-leading 2.64-inch PrecisionCore print head enables poster and POP production at over 27 m²/hr, CAD and technical drawings at up to 130 m²/hr. The integrated scanner supports speeds up to 25.4cm/s in mono and 11.4cm/s in colour
• Innovative design – up to 20% smaller than equivalent machines with a flat top, lit platen window and front panel USB interface
• Unparalleled image quality – UltraChrome XD3 Ink for fine lines and solid fills with vibrant imaging and enhanced colour gamut
• Wide application – print on glossy, bond, matte and specialty medias, even rigid poster board up to 1.5mm thick, and has an integrated scanner for MFP functionality
• Adobe Level 3 Print Engine – print PDFs up to 3x faster with more accurate processing and transparent layer handling
• Dual-roll productivity – print continuously or on multiple media types and/or sizes with auto-loading and exchange, alternatively use the second roll as a take-up reel for roll-to-roll production
• Easy setup and operation – simple to install, large 4.3" LCD touch screen control panel, all-front loaded consumables, integrated pull-out drop-down media bin
• Versatile connectivity – High-Speed USB 3.0, Gigabit Ethernet and Wi-Fi^® connectivity (2.4 GHz and 5 GHz)
• Enhanced integration and workflow – over 28 IT security features including IEEE 802.1x, NFC card support and 960GB SSD with encryption
• Maximum productivity – ships with Win & Mac drivers, print and accounting s/w, remote management and monitoring with Epson Cloud Solution PORT

Quality Results at High Speed
The SC-T5760DM incorporates Epson's latest 2.64" PrecisionCore print head with micro-fine nozzles that support resolutions up to 2400x1200 dpi. The head is factory fitted to ensure maximum print precision and durable performance without the cost or inconvenience of regular replacement³.

Epson UltraChrome ink features an aqueous all-pigment construction. The XD3 formulation includes an additional Red for vivid output with an enhanced gamut range. Images are extremely durable with colour is accurate and consistent. Prints exit almost dry with a finish that is resistant to damage through scratching and moisture exposure. The ink set incorporates both a photo and matte black to support imaging on a wide range of media types.

Economic to Run with Flexible Media Support
The SureColor T5760DM supports sheet sizes up to A0/B1 and roll media up to 36-inch (914mm) wide. It features a low running cost with reduced ink consumption and ultra-low power consumption. Ink cartridges can be ordered individually in a choice of 350ml or 700ml sizes to suit different operational and costs per print requirements. Wastage is minimised through the implementation of dedicated PK/MK ink lines, inkless-nozzle status monitoring and automatic nozzle replacement/masking. Consumable replacement is easy with everything loading from the front.

The SC-T5760DM has been designed to accept a wide range of roll and single sheet media. It supports stock as light as 80gsm and has a special straight path for heavy media including board¹. It will print borderless and features a high-speed auto-cutter that will cut an A1 sheet in just 2 seconds. Roll media is loaded automatically once placed on the spindle and the printer will automatically change between rolls when one runs out or an alternative type/size is selected. For users who work with a range of media, additional spindles can be ordered and the stock preloaded for rapid interchange. An inbuilt Roll Media Barcode Management system tracks consumption and facilitates automatic re-configuration upon loading. The second roll can be configured as an Auto Take Up for roll to roll production.

Easy to Install and Flexible to Operate
The SureColor T5760DM incorporates high-speed networking with support for the latest addressing and security protocols. Designed to operate with standard Macintosh and Windows applications, it also support HP-GL/2 and RTL emulation for specialist applications. The printer features an ultra-compact design with all connections located on the right to enable operation against a wall or in a corner. The large 4.3" LCD touchscreen makes operation simple and for those who like to monitor their work the top panel incorporates a viewing panel with a lit platen. An integrated media bin ensures prints don’t get damaged on exit and is a pull-out drop-down design that is easy to deploy and stow. High-speed hardware based Adobe Postscript enables files to be printed directly from a USB key or from the desktop using a simple 'drag-n-drop' process with configurable settings. If operation involves extremely large files or workgroups then using the 960GB SSD is recommended to improve efficiency while allowing for job spooling and direct instant reprints.^{1 2}

This printer has been designed to provide reliable operation with extended durability. It is backed with a comprehensive on-site warranty that covers everything including the print head. Service is extendable up to a total of 5 years using optional CoverPlus. Little maintenance is required however with high print volumes an occasional clean is recommended using some inexpensive swabs that are available as a consumable. Epson Cloud Solution PORT provides remote web and app based operator monitoring while enabling enhanced service support. ³
